Ahuja

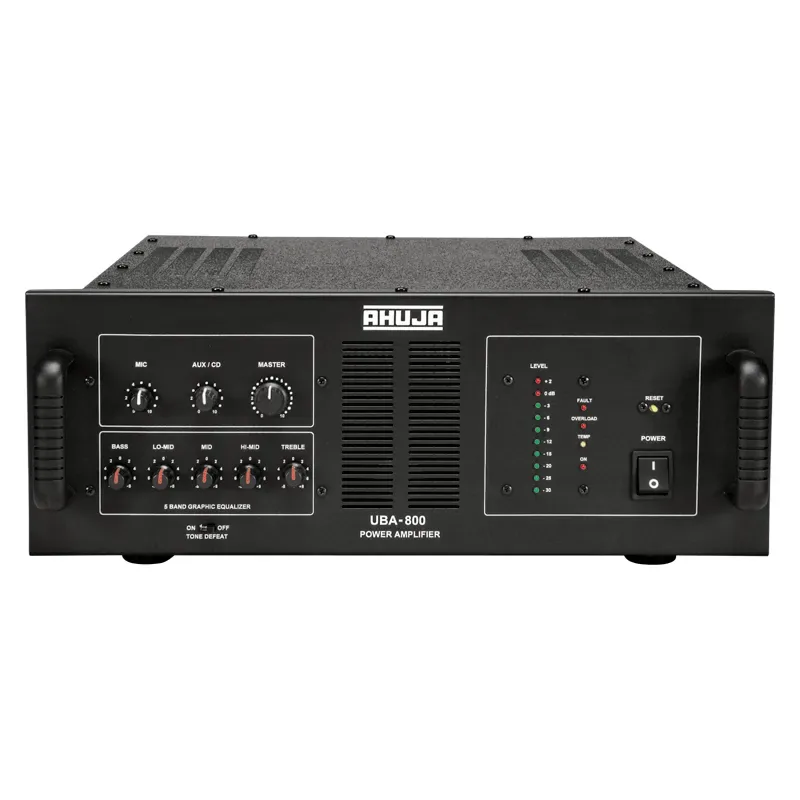

The Ahuja UBA-800 is an 800W dj and PA power amplifier. UBA-800 is a 800 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
| Power Output | 1150W RMS Max., 800W RMS at 10%THD, 770W RMS at 5% THD 725W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2dB, no load to full load at 1kHz |
| Input Channels | 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ |
| Frequency Response | 50Hz–18,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB |
| Line Output | 1V/1kΩ |
| Speaker Output | 2Ω, 4Ω & 8Ω |
| Power Supply | AC: 220-240V 50/60Hz |
| Protections | 2 × 25 Amp fuse in ± DC supply 8 Amp circuit breaker in AC mains, Protected against high AC mains voltage, overload & temperature |
| Power Consumption | 1500 VA |
| Dimensions | W482 × H186 × D530 mm |
| Weight | 32.0kg |
The UBA-800 is an Ahuja dj and PA power amplifier in the UBA Series rated 800 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Line Input and Line Output have been provided to enable interconnections with other power amplifiers; Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit; The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset; Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided; 2Ω speaker matching provided in addition to 4 & 8Ω.
The UBA-800 output regulation is ≤ 2dB, no load to full load at 1kHz.
The UBA-800 input channels is 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ.
The UBA-800 frequency response is 50Hz–18,000Hz ±3dB.
The UBA-800 signal to noise ratio is 60dB.
The UBA-800 tone controls is Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB.
