Ahuja

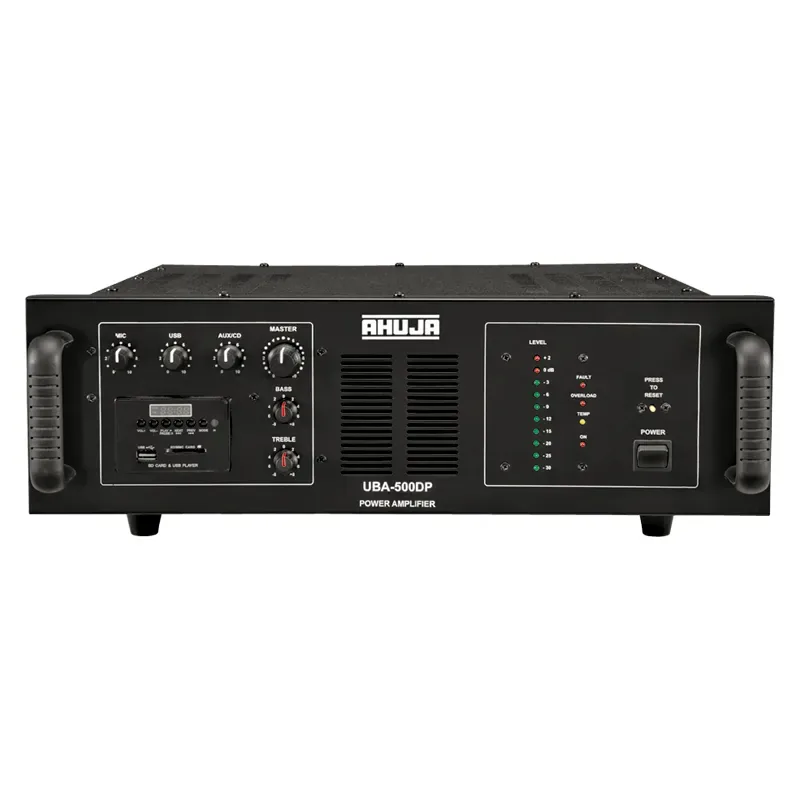

The Ahuja UBA-500DP is a 500W dj and PA power amplifier. Built-in MP3 player with remote control for USB, SD/MMC card reader and Bluetooth facility.
UBA-500DP is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
| Power Output | 650W RMS Max., 500W RMS at 10%THD, 475W RMS at 5% THD 450W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2dB, no load to full load at 1kHz |
| Input Channels | 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 20kΩ |
| Frequency Response | 50Hz–18,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass (100Hz) : ± 8dB, Treble (10kHz) : ± 8dB |
| Line Output | 1V/1kΩ |
| Speaker Output | 2Ω, 4Ω & 8Ω |
| Digital Player | MP3 Player with USB, SD, MMC Card Reader & Bluetooth |
| Power Supply | AC: 220-240V 50/60Hz |
| Protections | 2 × 20 Amp fuse in ± DC supply 5 Amp circuit breaker in AC mains Protected against high AC mains voltage, overload & temperature |
| Power Consumption | 1000 VA |
| Dimensions | W482 × H166 × D435 mm |
| Weight | 23.5kg |
The UBA-500DP is an Ahuja dj and PA power amplifier in the UBA Series rated 500 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Bass and Treble controls provided for precise and accurate tonal setting of the programme.precise and accurate tonal setting of the programme; Line Input and Line Output have been provided to enable interconnections with other power amplifiers; Circuit Protector Device has been provided which safeguards the amplifier against overload and short circuit; The amplifier has built-in protection against over voltage in AC mains supply which is specially useful while operating on a Genset; Indicator LEDs for Power, Signal, Temp, Overload and Fault conditions have been provided; 2Ω speaker matching provided in addition to 4 & 8Ω.
The UBA-500DP output regulation is ≤ 2dB, no load to full load at 1kHz.
The UBA-500DP input channels is 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 20kΩ.
The UBA-500DP frequency response is 50Hz–18,000Hz ±3dB.
The UBA-500DP signal to noise ratio is 60dB.
The UBA-500DP tone controls is Bass (100Hz) : ± 8dB, Treble (10kHz) : ± 8dB.
