Ahuja
UBA-500M
- Power
- 500 WATTS
- Series
- UBA Series
- Category
- Power Amplifiers
- Category
- PA Power Amplifiers

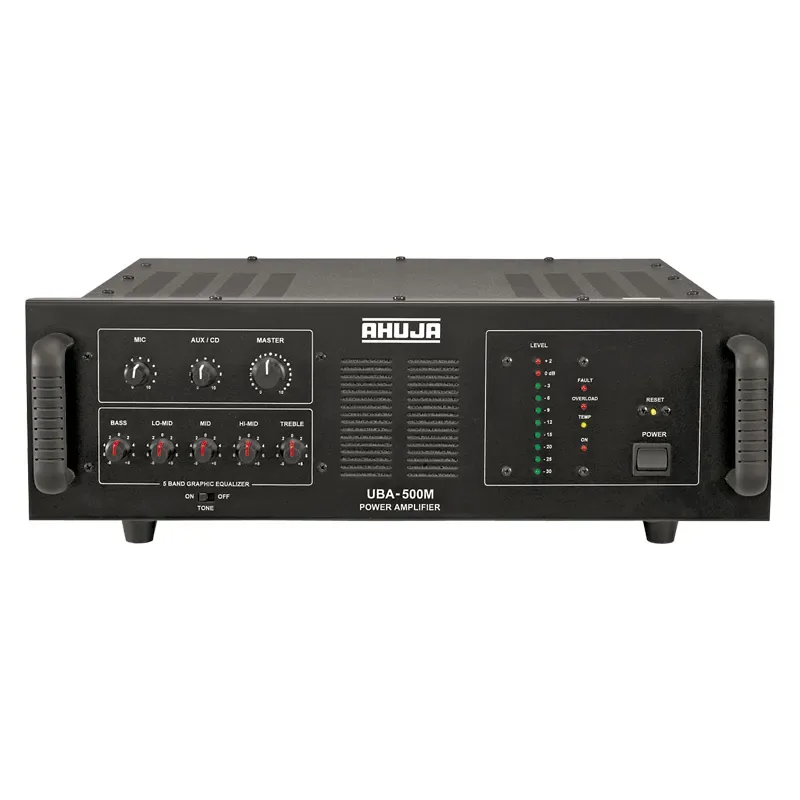

The Ahuja UBA-500M is a 500W dj and PA power amplifier. UBA-500M is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
Features
- Designed for use in a wide variety of PA applications and DJ performances.
- UBA-500M is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc.
- The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
Specifications, Q&A and videos
| Power Output | 650W RMS Max., 500W RMS at 10%THD, 475W RMS at 5% THD 450W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2dB, no load to full load at 1kHz |
| Input Channels | 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ |
| Frequency Response | 50Hz–18,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB |
| Line Output | 1V/1kΩ |
| Speaker Output | 2Ω, 4Ω & 8Ω |
| Power Supply | AC: 220-240V 50/60Hz |
| Protections | 2 × 20 Amp fuse in ± DC supply 5 Amp circuit breaker in AC mains, Protected against high AC mains voltage, overload & temperature |
| Power Consumption | 1000 VA |
| Dimensions | W482 × H166 × D435 mm |
| Weight | 23.5kg |
The UBA-500M is an Ahuja dj and PA power amplifier in the UBA Series rated 500 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Designed for use in a wide variety of PA applications and DJ performances; UBA-500M is a 500 Watts amplifier which can be connected to various input sources like a Microphone, PA Mixer, DJ Mixer, CD Player, Cassette Player, Keyboard etc; The amplifier includes an built-in 5 Band Graphic Equalizer with tone ON/OFF switch which enables precise and accurate tonal setting of the programme.
The UBA-500M output regulation is ≤ 2dB, no load to full load at 1kHz.
The UBA-500M input channels is 1 × Mic 1mV / 4.7kΩ, 1 × Aux 100mV / 470kΩ, 1 × Aux 250mV / 20kΩ, 1 × CD 250mV / 20kΩ, 1 × Line 1V / 10kΩ.
The UBA-500M frequency response is 50Hz–18,000Hz ±3dB.
The UBA-500M signal to noise ratio is 60dB.
The UBA-500M tone controls is Bass (100Hz) : ± 8dB, Lo-Mid (315Hz) : ± 8dB, Mid (1kHz) : ± 8dB, Hi-Mid (3.1kHz) : ± 8dB, Treble (10kHz) : ± 8dB.
