Ahuja
APA-480
- Power
- 600 WATTS
- Category
- Power Amplifiers
- Category
- PA Power Amplifiers

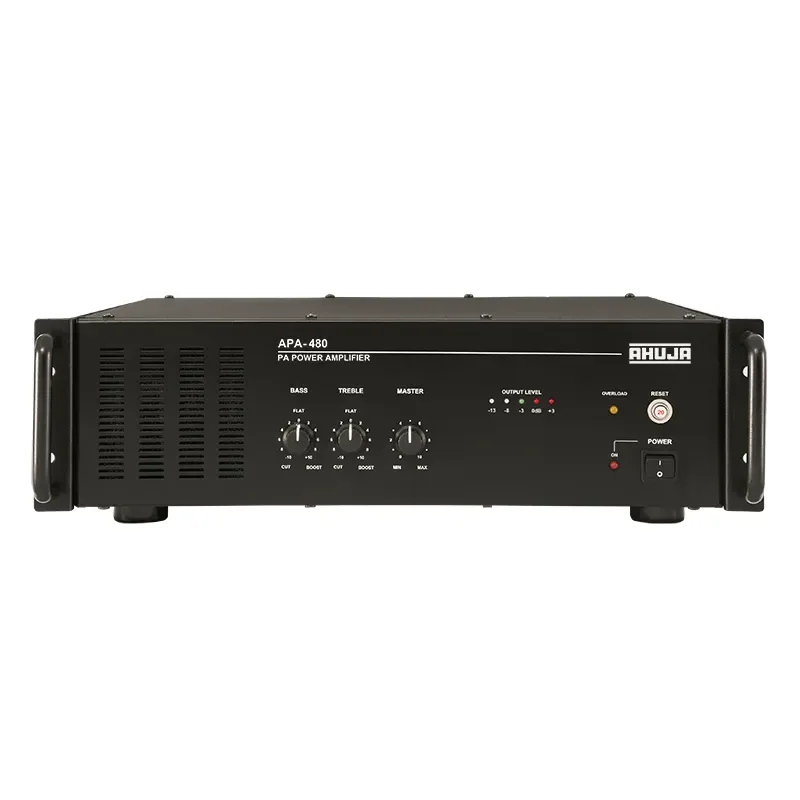

The Ahuja APA-480 is a 600W installation PA power amplifier. 100V input is provided for connecting another amplifier's output in long line applications.
Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
Features
- 1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs.
- 100V input is provided for connecting another amplifier's output in long line applications.
- Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations.
- Resettable circuit breaker for protection against overload and short circuit.
- Loop through output for connecting another booster amplifier.
- 19" Rack mountable chassis.
- Instant transfer to DC power (Car Battery) if AC power fails.
Specifications, Q&A and videos
| Power Output | 750W Max., 600W RMS at 10% THD, 550W RMS at 5% THD, 500W RMS at 2% THD, 480W RMS at 1% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Outputs | Loop through 1 × 200mV/600W, 2 ×1V/1kW |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 24V (2×12V Car Battery) |
| Power Consumption | AC: 1200VA DC: 15A |
| Dimensions | W485 × H142 × D510 mm |
| Weight | 32.20kg |
The APA-480 is an Ahuja installation PA power amplifier rated 600 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
1x Line 200mV unbalanced input and 2xLine 1V balanced inputs through XLR connector, one 1V input having priority over all other inputs; 100V input is provided for connecting another amplifier's output in long line applications; Ground lift switch provided at rear panel which helps reducing the hum that occures due to multiple ground loops in the installations; Resettable circuit breaker for protection against overload and short circuit; Loop through output for connecting another booster amplifier; 19" Rack mountable chassis.
The APA-480 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The APA-480 input channels is 1 × 200mV/470kΩ (unbal.), 2 × 1V/50kΩ (bal.), 1 × 100V Input/50kΩ.
The APA-480 frequency response is 50-15,000Hz ±3dB.
The APA-480 signal to noise ratio is 60dB.
The APA-480 tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
