Ahuja
SUB-300A
- Power
- 300 WATTS
- Category
- Speakers
- Category
- Active Subwoofers

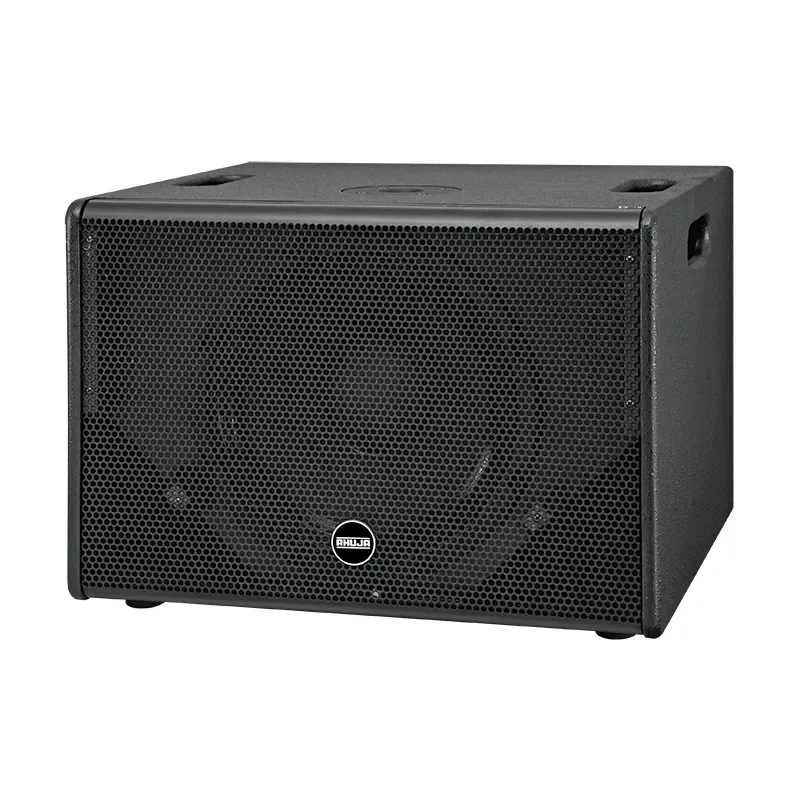

The Ahuja SUB-300A is a 300W PA active subwoofer with 12" LF woofer. It is fitted with a heavy duty 30.48cm (12") speaker in a painted plywood cabinet, with black metal grille protection. Built-in 300W RMS amplifier, the SUB-300A also has built in active crossover with 100Hz high pass filter.
No external crossover is required. The SUB-300A can be driven by any standard mixer.
Features
- SUB-300A is a powered sub-woofer designed for excellenct low frequency reproduction in music programmes and other PA applications.
- Fitted with a heavy duty 30.48cm (12") speaker in a painted plywood cabinet, with black metal grille protection.
- Built-in 300W RMS amplifier, the SUB-300A also has built in active crossover with 100Hz high pass filter. No external crossover is required. The SUB-300A can be driven by any standard mixer.
- Link/Loopthrough Output is provided to connect an additional SUB-300A.
- Built in Clip Limiter, to guard against accidental overloading of the input.
- Volume Control, Ground Lift Switch and Phase Reversal Switch provided.
- High Pass output which can be used to drive the top speaker without any external Crossover.
Specifications, Q&A and videos
| AC Power Consumption | 400 VA |
|---|---|
| Power Output | 300W RMS |
| Input | 1V / 0dBu |
| Frequency Response (-6db) | 47-125 Hz |
| SPL at (1W/1m) | 96dB |
| Max. Rated SPL | 121dB |
| Low Frequency Speaker | 1 × 304.8mm (12”) with Ø63.5mm (2.5”) Voice Coil |
| Input Connectors | LEFT/MONO: COMBO (XLR+ 1/4” Stereo Jack), RIGHT: F/XLR, LINK L&R: 2×M/XLR |
| output Connectors | LEFT/MONO & RIGHT: 2×M/XLR |
| Protection | AC: Fuse 1×3A (T 3A L) |
| Power Supply | AC: 220-240V 50/60Hz |
| Dimensions | W530 × H370 × D480 mm |
| Weight | 18.60kg |
The SUB-300A is an Ahuja PA active subwoofer rated 300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
SUB-300A is a powered sub-woofer designed for excellenct low frequency reproduction in music programmes and other PA applications; Fitted with a heavy duty 30.48cm (12") speaker in a painted plywood cabinet, with black metal grille protection; Built-in 300W RMS amplifier, the SUB-300A also has built in active crossover with 100Hz high pass filter. No external crossover is required. The SUB-300A can be driven by any standard mixer; Link/Loopthrough Output is provided to connect an additional SUB-300A; Built in Clip Limiter, to guard against accidental overloading of the input; Volume Control, Ground Lift Switch and Phase Reversal Switch provided.
The SUB-300A ac power consumption is 400 VA.
The SUB-300A input is 1V / 0dBu.
The SUB-300A frequency response (-6db) is 47-125 Hz.
The SUB-300A spl at (1w/1m) is 96dB.
The SUB-300A max. rated spl is 121dB.
