Ahuja

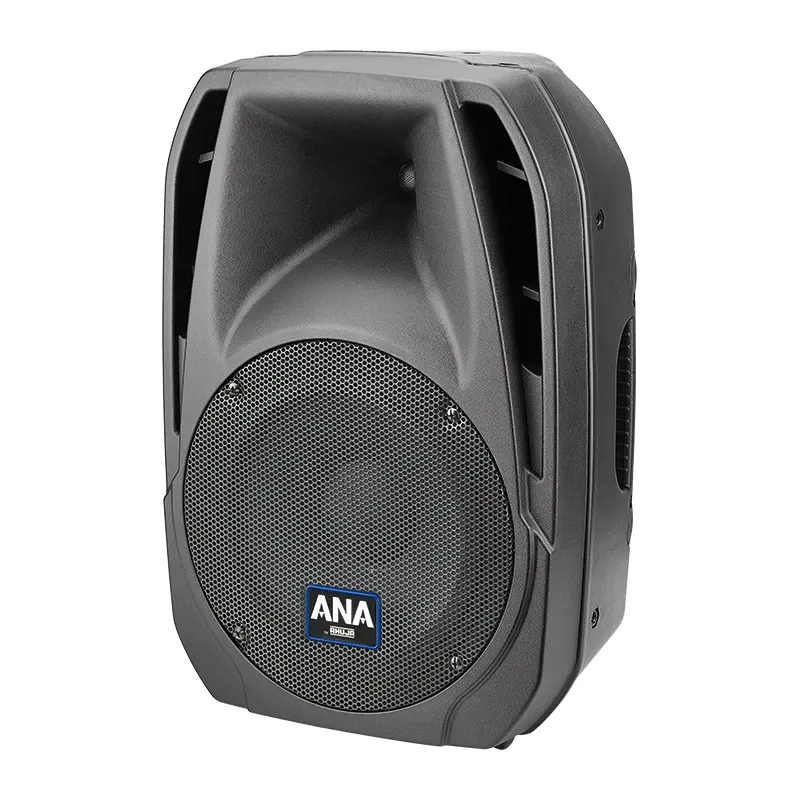

The Ahuja ABA-5000 is a 400W bi-amp PA active loudspeaker with 15" LF woofer, dynamic horn, and moulded cabinet. It has a balanced mic/line input.
A link output can feed another ABA-5000 or a recorder.
| Power Output (Bi-AMP) | LF: 350W RMS at 1% THD Class H, HF: 50W RMS at 1% THD Class AB |
|---|---|
| Output Regulation | ≤ 0.5dB, no load to full load at 1kHz |
| Input Channels | INPUT-1: MIC 20mV/3kΩ balanced, LINE: 775mV/10kΩ balanced, INPUT-2: LINE (Jack) 250mV/20kΩ balanced, RCA: 250mV (L&R)/10kΩ |
| Frequency Response | 50-20,000Hz ±3dB |
| Crossover Frequency | 2.5kHz , Filter Slope 24dB per octave |
| Signal To Noise Ratio | 60dB |
| Tone Controls | Bass: ±5dB at 100Hz, Treble: ±5dB at 10kHz |
| Output | (a) Loop through (INPUT-1): 20mV or 775mV (b) Mixed Output (1+2): 775mV/1kΩ |
| Protections | AC: Fuse 1x5A (T 5A L) DC: Fuse 2x8A (T 8A L) |
| Power Supply | AC: 220-240V 50/60Hz |
| AC Power Consumption | 500VA |
| Dimensions | W450 x H690 x D360 mm |
| Weight | 28.10kg |
The ABA-5000 is an Ahuja bi-amp PA active loudspeaker in the ABA Series rated 400 WATTS. The Ahuja ABA-5000 is a 400W bi-amp PA active loudspeaker with 15" LF woofer, dynamic horn, and moulded cabinet. Available from Mansukhlal Sales Corp, an authorized dealer.
1xBalanced Mic/Line Input selectable through a push switch; 1xLine Input can be used for connecting balanced MONO signal through jack or unbalanced STEREO signal source through dual RCA; Switchable balanced output either as a Loop through output of Input-1 or a mix output of Input-1 and 2; Balanced output to link another ABA-5000 or for recording on a computer, record player; 2-Way Speaker System: 38.1cm (15") LF Woofer (ø7.62cm (3.0") Voice Coil) + Dynamic Horn (ø4.44cm (1.75") Voice Coil); Moulded Cabinet Bi-Amp PA Acitve Loudspeaker.
The ABA-5000 power output (bi-amp) is LF: 350W RMS at 1% THD Class H, HF: 50W RMS at 1% THD Class AB.
The ABA-5000 output regulation is ≤ 0.5dB, no load to full load at 1kHz.
The ABA-5000 input channels is INPUT-1: MIC 20mV/3kΩ balanced, LINE: 775mV/10kΩ balanced, INPUT-2: LINE (Jack) 250mV/20kΩ balanced, RCA: 250mV (L&R)/10kΩ.
The ABA-5000 frequency response is 50-20,000Hz ±3dB.
The ABA-5000 crossover frequency is 2.5kHz , Filter Slope 24dB per octave.
