Ahuja
SSB-80DFM
- Power
- 80 WATTS
- Series
- SSB Series
- Category
- Mixer Amplifiers
- Category
- DP Mixer Amplifiers

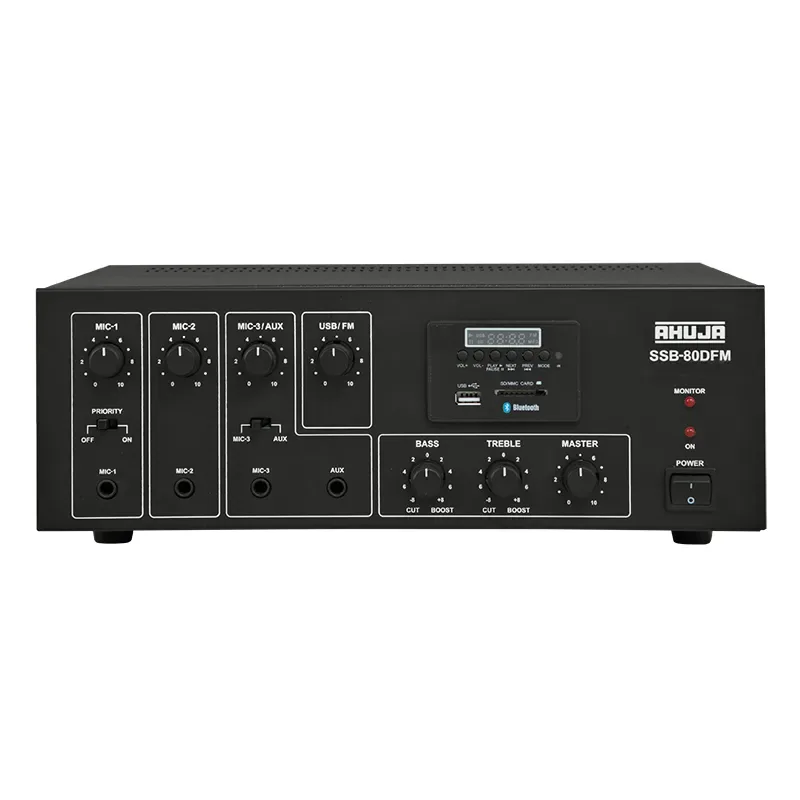

The Ahuja SSB-80 DFM is a PA product. Built-in MP3 player with remote control for USB, SD/MMC card reader, Bluetooth and FM.
Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
Features
- 3 Mic & 1 Aux Inputs.
- Built-in MP3 player with remote control for USB, SD/MMC card reader, Bluetooth and FM.
- Preamplifier Output for connecting to a Booster Amplifier and for recording the programme.
- Cut & Boost type Bass & Treble controls.
- Instant transfer to DC power (Car Battery) if AC power fails.
Specifications, Q&A and videos
| Power Output | 110W Max., 80W RMS at 10% THD, 75W RMS at 5% THD, 60W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 3 × Mic 1.0mV/4.7kΩ, 1 × Aux 100mV/470 kΩ |
| Frequency Response | 65-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±8dB at 100Hz, Treble: ±8dB at 10kHz |
| Outputs | Preamp 200mV/600Ω |
| Speaker Outputs | 4Ω, 8Ω, 16Ω, 70V & 100V |
| Digital Player | MP3 Player with USB, SD & MMC Card Reader, Bluetooth & FM |
| Power Supply | AC: 220-240V 50/60Hz, DC: 12V (12V Car Battery) |
| Power Consumption | AC: 180VA DC: 3A |
| Dimensions | W355 × H133 × D285 mm |
| Weight | 8.43kg |
The SSB-80DFM is an Ahuja PA product in the SSB Series rated 80 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
3 Mic & 1 Aux Inputs; Built-in MP3 player with remote control for USB, SD/MMC card reader, Bluetooth and FM; Preamplifier Output for connecting to a Booster Amplifier and for recording the programme; Cut & Boost type Bass & Treble controls; Instant transfer to DC power (Car Battery) if AC power fails.
The SSB-80DFM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSB-80DFM input channels is 3 × Mic 1.0mV/4.7kΩ, 1 × Aux 100mV/470 kΩ.
The SSB-80DFM frequency response is 65-15,000Hz ±3dB.
The SSB-80DFM signal to noise ratio is 60dB.
The SSB-80DFM tone controls is Bass: ±8dB at 100Hz, Treble: ±8dB at 10kHz.
