Ahuja
SSB-120DPM
- Power
- 120 WATTS
- Series
- SSB Series
- Category
- Mixer Amplifiers
- Category
- DP Mixer Amplifiers

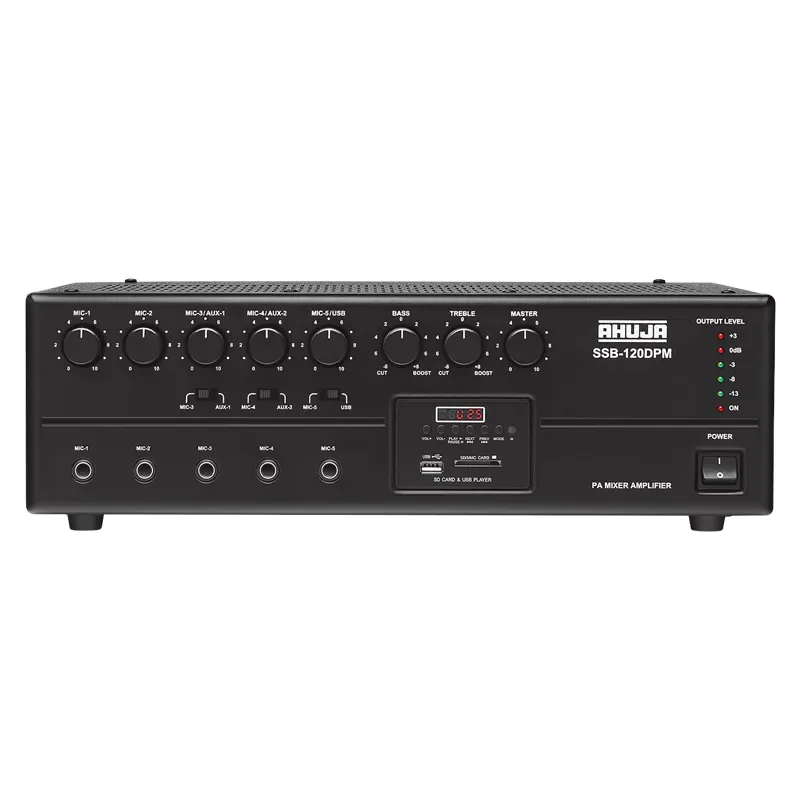

The Ahuja SSB-120 DPM is a PA product. Built-in MP3 player with remote control for USB, SD/MMC card reader.
Line output for connecting to a Booster Amplifier and Preamplifier Output for recording the programme.
Features
- 5 Mic & 2 Aux Inputs.
- Built-in MP3 player with remote control for USB, SD/MMC card reader.
- Bluetooth facility.
- Line output for connecting to a Booster Amplifier and Preamplifier Output for recording the programme.
- Cut and Boost type Bass & Treble controls.
- Instant transfer to DC power (Car Battery) if AC power fails.
- 5 LED array for output level monitoring.
Specifications, Q&A and videos
| Power Output | 160W Max., 120W RMS at 10% THD, 105W RMS at 5% THD, 95W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±8dB at 100Hz, Treble: ±8dB at 10kHz |
| Output | Preamp 200mV/600Ω, Line 1V/1kΩ |
| Speaker Outputs | 4Ω, 8Ω, 16Ω, 70V & 100V |
| Ditital Player | MP3 Player with USB, SD & MMC Card Reader, Bluetooth |
| Power Supply | AC: 220-240V 50/60Hz DC: 12V (12V Car Battery) |
| Power Consumption | AC: 250VA DC: 5.5A |
| Dimensions | W420 × H135 × D275 mm |
| Weight | 10.30kg |
The SSB-120DPM is an Ahuja PA product in the SSB Series rated 120 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
5 Mic & 2 Aux Inputs; Built-in MP3 player with remote control for USB, SD/MMC card reader; Bluetooth facility; Line output for connecting to a Booster Amplifier and Preamplifier Output for recording the programme; Cut and Boost type Bass & Treble controls; Instant transfer to DC power (Car Battery) if AC power fails.
The SSB-120DPM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SSB-120DPM input channels is 5 × Mic 0.65mV/4.7kΩ, 2 × Aux 100mV/470 kΩ.
The SSB-120DPM frequency response is 50-15,000Hz ±3dB.
The SSB-120DPM signal to noise ratio is 60dB.
The SSB-120DPM tone controls is Bass: ±8dB at 100Hz, Treble: ±8dB at 10kHz.
