Ahuja
SPA-5000EM
- Power
- 500 WATTS
- Series
- SPA Series
- Category
- Power Amplifiers
- Category
- PA Power Amplifiers

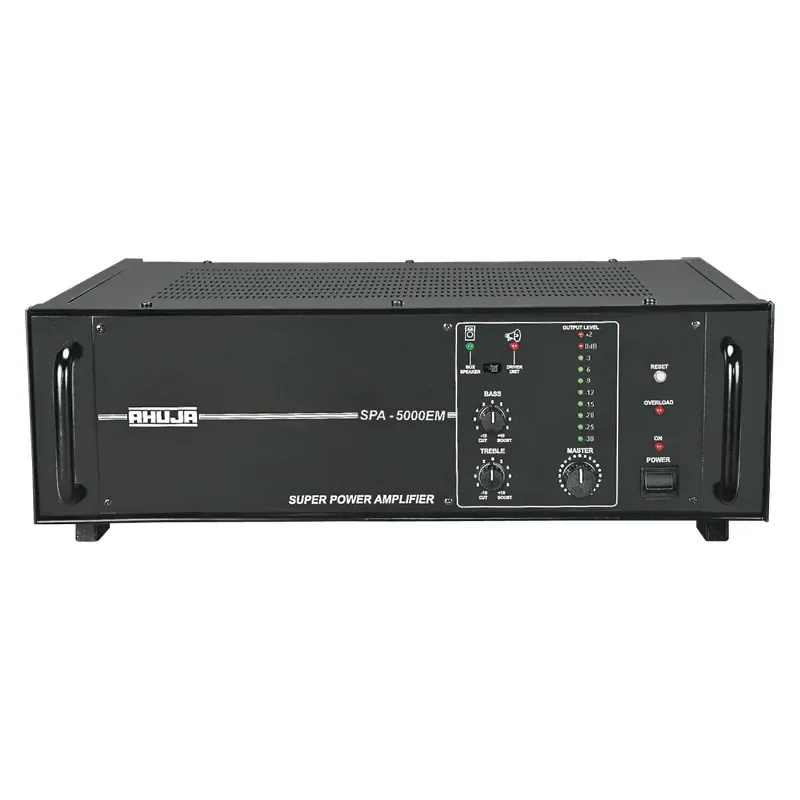

The Ahuja SPA-5000EM is a 500W high wattage PA power amplifier. It has box speaker/driver unit selector switch.
Bass boost defeated at driver unit position for safer operation of driver units. Resettable circuit breaker for protection against overload and short circuit.
Features
- Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Ideal for large installations where a high power output is required. A combination of a SSA-5000EM and one SPA-5000EM can deliver 1000W power output.
Specifications, Q&A and videos
| Power Output | 750W Max., 500W RMS at 10% THD, 450W RMS at 5% THD, 415W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Speaker Outputs | 4Ω, 8Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 36V (3×12V Car Battery) |
| Power Consumption | AC: 1000VA DC: 8A |
| Dimensions | W510 × H172 × D385 mm |
| Weight | 25.7kg |
The SPA-5000EM is an Ahuja high wattage PA power amplifier in the SPA Series rated 500 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Line Input 200mV/1V switchable for connecting a mixer or another amplifier; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units; Ideal for large installations where a high power output is required. A combination of a SSA-5000EM and one SPA-5000EM can deliver 1000W power output.
The SPA-5000EM output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SPA-5000EM input channels is 1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ.
The SPA-5000EM frequency response is 50-15,000Hz ±3dB.
The SPA-5000EM signal to noise ratio is 60dB.
The SPA-5000EM tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
