Ahuja
SPA-10000
- Power
- 1000 WATTS
- Series
- SPA Series
- Category
- Power Amplifiers
- Category
- PA Power Amplifiers

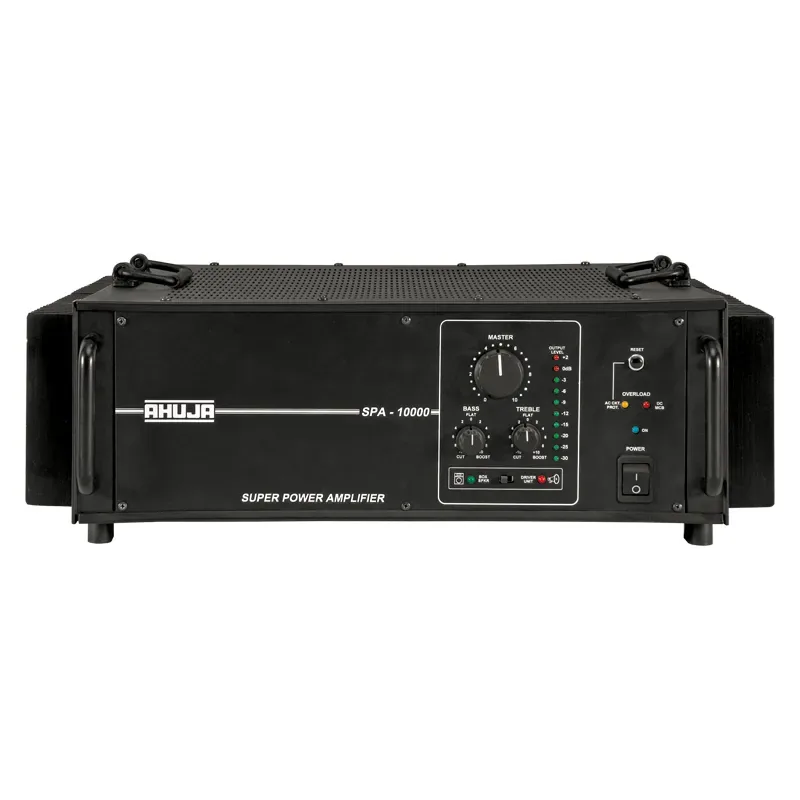

The Ahuja SPA-10000 is a 1000W high wattage PA power amplifier. 100V input for connecting another amplifier output.
It has box speaker/driver unit selector switch. Bass boost defeated at driver unit position for safer operation of driver units.
Features
- Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
- 100V input for connecting another amplifier output.
- Resettable circuit breaker for protection against overload and short circuit.
- Instant transfer to DC power (Car Battery) if AC power fails.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
- Ideal for large installations where a high power output is required. A combination of a SSA-10000 and one SPA-10000 can deliver 2000W power output.
Specifications, Q&A and videos
| Power Output | 1350W Max., 1000W RMS at 10% THD, 850W RMS at 5% THD, 800W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ, 1 × 100V Input |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 60dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Speaker Outputs | 2Ω, 4Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz DC: 48V (4×12V Car Battery) |
| Power Consumption | AC: 1600VA DC: 12A |
| Dimensions | W540 × H185 × D510 mm |
| Weight | 41.0kg |
The SPA-10000 is an Ahuja high wattage PA power amplifier in the SPA Series rated 1000 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Line Input 200mV/1V switchable for connecting a mixer or another amplifier; 100V input for connecting another amplifier output; Resettable circuit breaker for protection against overload and short circuit; Instant transfer to DC power (Car Battery) if AC power fails; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units; Ideal for large installations where a high power output is required. A combination of a SSA-10000 and one SPA-10000 can deliver 2000W power output.
The SPA-10000 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SPA-10000 input channels is 1 × Line 200mV/100kΩ, 1 × Line 1V/50kΩ, 1 × 100V Input.
The SPA-10000 frequency response is 50-15,000Hz ±3dB.
The SPA-10000 signal to noise ratio is 60dB.
The SPA-10000 tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
