Ahuja
SPA-25000
- Power
- 2500 WATTS
- Series
- SPA Series
- Category
- Power Amplifiers
- Category
- PA Power Amplifiers

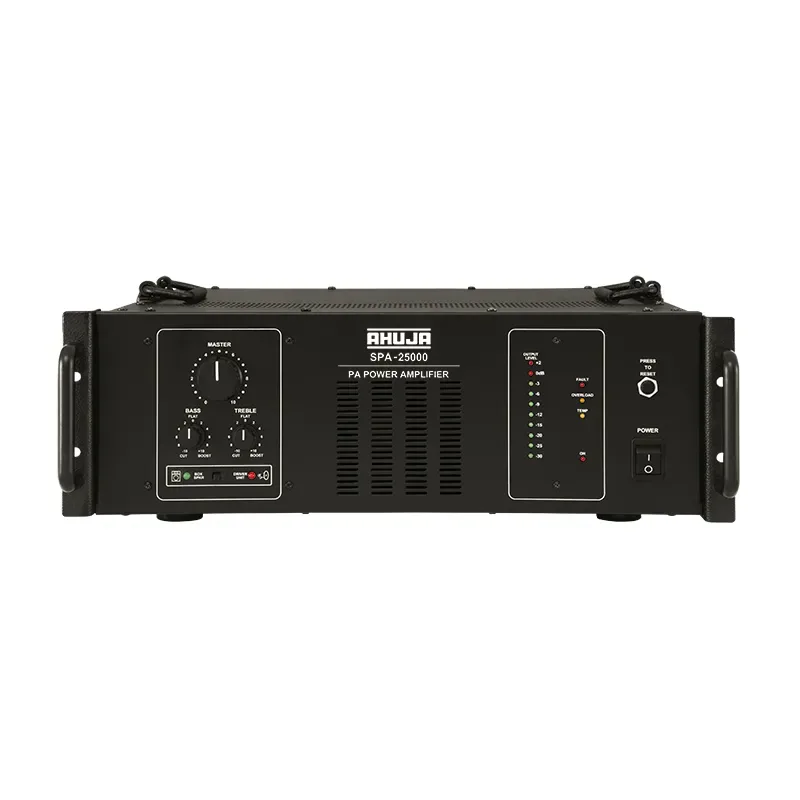

The Ahuja SPA-25000 is a 2500W high wattage PA power amplifier. 100V input for connecting to another amplifier 100V output.
Ideal for large installations where very high power output is required.
Features
- Super high power single channel PA booster amplifier, specially designed for big installations where large number of speakers are required. Class H operation for optimum efficiency
- Line Input 200mV/1V switchable for connecting a mixer or another amplifier.
- 100V input for connecting to another amplifier 100V output.
- Built-in circuit for protection against overload, short circuit and temperature.
- Built-in protection against overvoltage in AC mains supply which is specially useful while operating on a genset.
- Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
- 100V/70V, 4W and 2W power outputs
- Ideal for large installations where very high power output is required.
Specifications, Q&A and videos
| Power Output | 3000W Max., 2500W RMS at 10% THD 2300W RMS at 5% THD, 2150W RMS at 2% THD |
|---|---|
| Output Regulation | ≤ 2 dB, no load to full load at 1kHz |
| Input Channels | 1 × Line 200mV/20kΩ balanced, 10kΩ unbalanced, 1 × Line 1V/20kΩ balanced, 10kΩ unbalanced, 1 × 100V Input/50kΩ |
| Frequency Response | 50-15,000Hz ±3dB |
| Signal to Noise Ratio | 75dB |
| Tone Controls | Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz |
| Speaker Outputs | 2Ω, 4Ω, 70V & 100V |
| Power Supply | AC: 220-240V 50/60Hz |
| Power Consumption | AC: 3400VA |
| Dimensions | W520 × H185 × D595 mm |
| Weight | 38.50kg |
The SPA-25000 is an Ahuja high wattage PA power amplifier in the SPA Series rated 2500 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Super high power single channel PA booster amplifier, specially designed for big installations where large number of speakers are required. Class H operation for optimum efficiency; Line Input 200mV/1V switchable for connecting a mixer or another amplifier; 100V input for connecting to another amplifier 100V output; Built-in circuit for protection against overload, short circuit and temperature; Built-in protection against overvoltage in AC mains supply which is specially useful while operating on a genset; Box Speaker/Driver Unit selector switch. Bass boost defeated at Driver Unit position for safer operation of driver units.
The SPA-25000 output regulation is ≤ 2 dB, no load to full load at 1kHz.
The SPA-25000 input channels is 1 × Line 200mV/20kΩ balanced, 10kΩ unbalanced, 1 × Line 1V/20kΩ balanced, 10kΩ unbalanced, 1 × 100V Input/50kΩ.
The SPA-25000 frequency response is 50-15,000Hz ±3dB.
The SPA-25000 signal to noise ratio is 75dB.
The SPA-25000 tone controls is Bass: ±10dB at 100Hz, Treble: ±10dB at 10kHz.
