Ahuja

SK-15FRZ

Download Datasheet

Power
200 WATTS
Category
Transducers

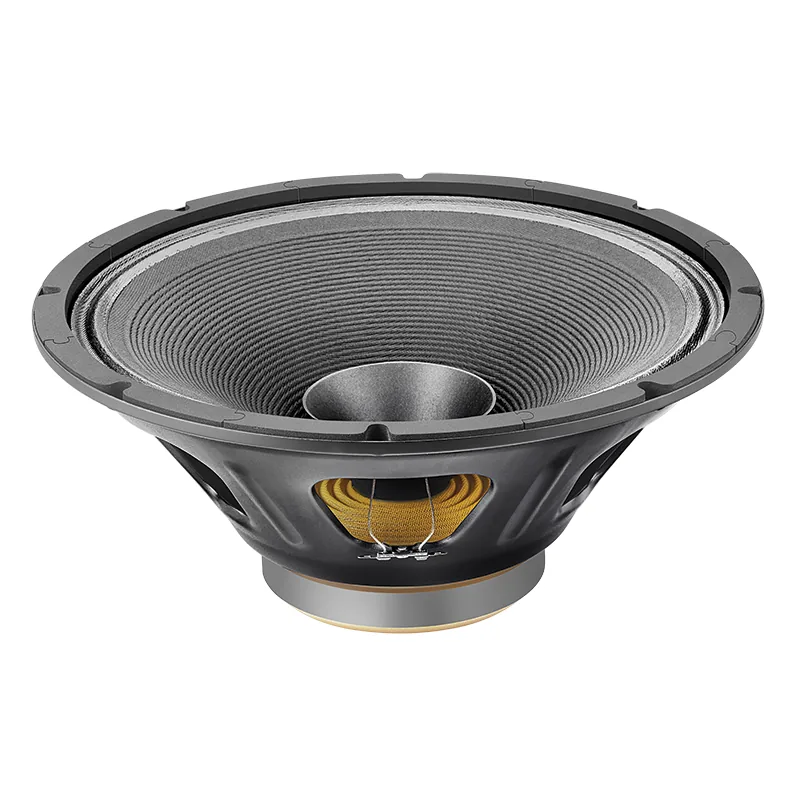

The Ahuja SK-15FRZ is a 200W high efficiency 38.1cm (15”) dual cone full range speaker with 16Ω nominal impedance.

Wide 50–16,000Hz response with high quality imported parts for low distortion and clean sound.

Features

  • It is a 38.1cm (15") high quality dual cone full range PA speaker with a very wide frequency range 50-16,000Hz.
  • Impedance of SK-15FRX is 8Ω and SK-15FRZ is 16Ω.
  • High quality specially designed imported parts for low distortion and clean sound.

Specifications, Q&A and videos

SK-15FRZ technical specifications
Power Rating200W RMS / 400W Programme
Nominal Diameter380mm (15”)
Nominal Impedance16Ω
Sensitivity (1W/1m )98 dB
Magnet Weight1.54kg
Resonant FrequenceY (Fs)75Hz
DC resistance (Re)11.0Ω
Voice Coil Diameter2.0”
Overall Diameter385 mm
Depth165 mm
Baffle Hole Diameter355 mm
Bolt Mount Diameter (PCD)373 mm (8 Bolts)
Weight4.90kg
