Ahuja
SK-12FRZ
- Power
- 100 WATTS
- Channels
- 2 Channels
- Category
- Transducers
- Category
- Speaker Components

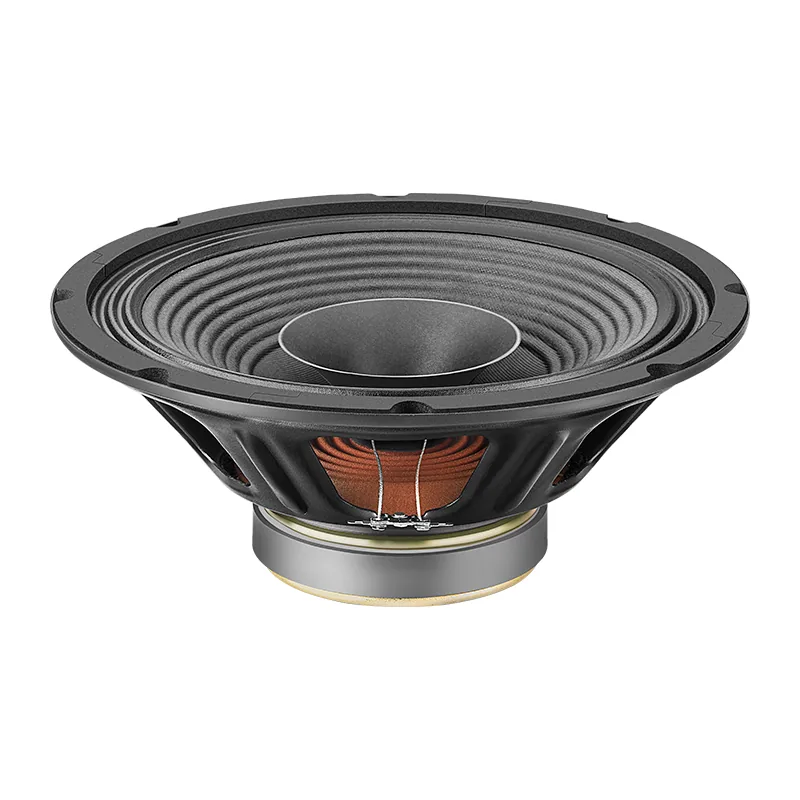

Ahuja SK-12FRZ loudspeakers fit distributed PA and install projects — MSC advises matching amplifier wattage and enclosure type for your space. Authorized Ahuja distributor; contact us for BOM and delivery. The Ahuja SK-12FRZ is a 100W high efficiency 30.
48cm (12”) dual cone full range speaker with 16Ω nominal impedance. Wide 50–16,000Hz response with high quality imported parts for low distortion and clean, transparent sound.
Features
- 30.48cm (12") dual cone full range PA speaker with a very wide frequency range 50–16,000Hz.
- Nominal impedance 16Ω — pair with the correct amplifier load.
- High quality specially designed imported parts for low distortion and a clean transparent sound.
Specifications, Q&A and videos
| Power Rating | 100W RMS / 200W Programme |
|---|---|
| Nominal Diameter | 305 mm (12”) |
| Nominal Impedance | 16Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 1.1kg |
| Resonant FrequenceY (Fs) | 50Hz |
| DC Resistance (Re) | 13.0Ω |
| Voice Coil Diameter | 1.5” |
| Overall Diameter | 311 mm |
| Depth | 130 mm |
| Baffle Hole Diameter | 285 mm |
| Bolt Mount Diameter (PCD) | 292 mm (8 Bolts) |
| Weight | 3.20kg |
What type of high efficiency 30.48cm (12”) dual cone full range speaker is the SK-12FRZ?
The SK-12FRZ is an Ahuja high efficiency 30.48cm (12”) dual cone full range speaker rated 100 WATTS. Ahuja SK-12FRZ loudspeakers fit distributed PA and install projects — MSC advises matching amplifier wattage and enclosure type for your space. Available from Mansukhlal Sales Corporation, an authorized dealer.
What are the main features of the SK-12FRZ?
30.48cm (12") dual cone full range PA speaker with a very wide frequency range 50–16,000Hz; Nominal impedance 16Ω — pair with the correct amplifier load; High quality specially designed imported parts for low distortion and a clean transparent sound.
What is the nominal diameter of the SK-12FRZ?
The SK-12FRZ nominal diameter is 305 mm (12”).
What is the nominal impedance of the SK-12FRZ?
The SK-12FRZ nominal impedance is 16Ω.
What is the sensitivity (1w/1m ) of the SK-12FRZ?
The SK-12FRZ sensitivity (1w/1m ) is 97dB.
What is the magnet weight of the SK-12FRZ?
The SK-12FRZ magnet weight is 1.1kg.
What is the resonant frequencey (fs) of the SK-12FRZ?
The SK-12FRZ resonant frequencey (fs) is 50Hz.
