Ahuja

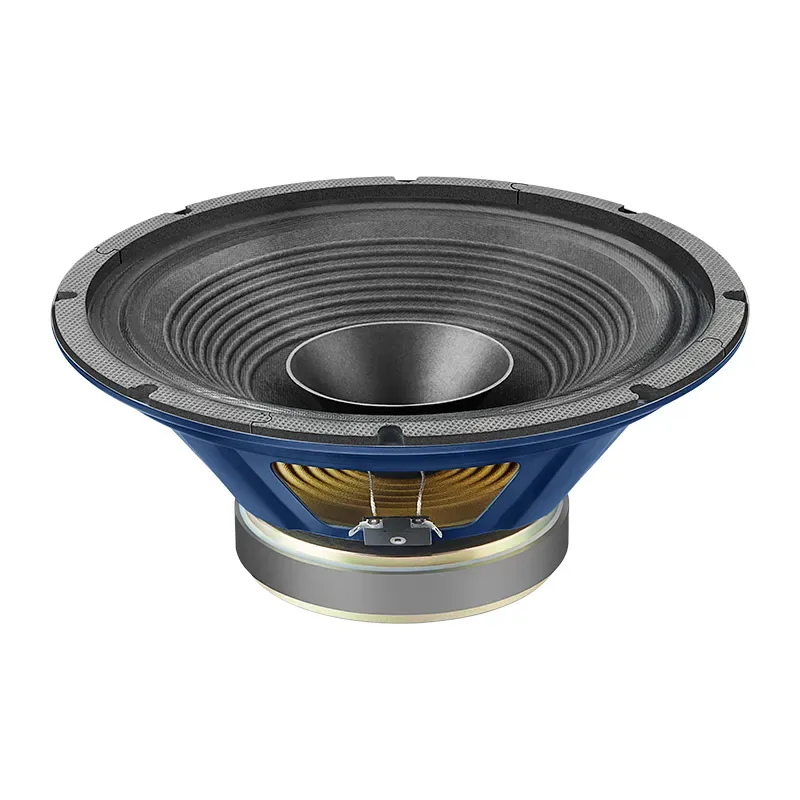

The Ahuja DX12-F200 is a 200W high efficiency 30. 48cm (12”) dual cone full range speaker.
High quality specially designed imported cones and spider for extremely clear, low distortion sound reproduction.
| Power Rating | 200W RMS |
|---|---|
| Nominal Diameter | 305 mm (12”) |
| Nominal Impedance | 8Ω/16Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 1.16kg |
| Resonant FrequenceY (Fs) | 50Hz |
| DC resistance (Re) | 6.8Ω/13.0Ω |
| Electromagnetic Q (Qes) | 0.92 |
| Mechanical Q (Qms) | 3.26 |
| Total Q (Qts) | 0.72 |
| Surface Area of Cone (Sd) | 510cm2 |
| Reference Efficiency (ηo) | 3.6% |
| Voice Coil DIAMETER | 2.0” |
| Overhang (Xmax) | 2.5 mm |
| Moving Mass (Mms) | 36.7gm |
| BL Product (BL) | 11.2TM |
| Coil Inductance (Le) | 0.69mH |
| Overall Diameter | 313 mm |
| Depth | 127 mm |
| Baffle Hole Diameter | 285 mm |
| Bolt Mount Diameter (PCD) | 295 mm (8 Bolts) |
| Weight | 4.16kg |
The DX12-F200 is an Ahuja high efficiency 30.48cm (12”) dual cone full range speaker rated 200 WATTS. The Ahuja DX12-F200 is a 200W high efficiency 30. Available from Mansukhlal Sales Corp, an authorized dealer.
Impedance of DX12-F200 is 8Ω and DZ12-F200 is 16Ω; 5.08cm (2") CCAW voice coil with high temperature rating for safe, reliable operation.
The DX12-F200 nominal diameter is 305 mm (12”).
The DX12-F200 nominal impedance is 8Ω/16Ω.
The DX12-F200 sensitivity (1w/1m ) is 97dB.
The DX12-F200 magnet weight is 1.16kg.
The DX12-F200 resonant frequencey (fs) is 50Hz.
