Ahuja
SK-12FRX
- Power
- 100 WATTS
- Channels
- 2 Channels
- Category
- Transducers
- Category
- Speaker Components

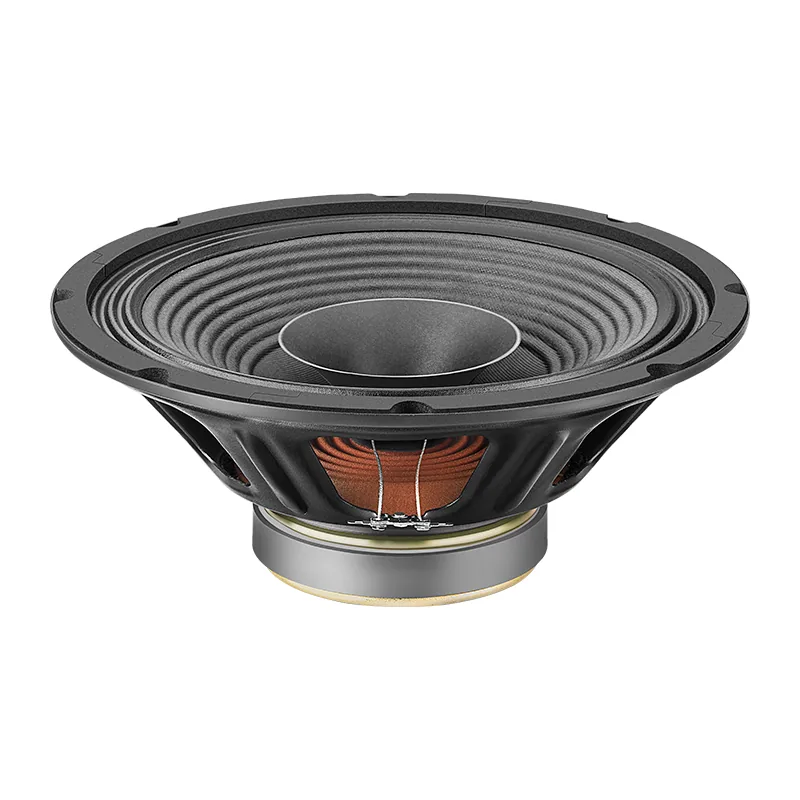

Ahuja SK-12FRX loudspeakers fit distributed PA and install projects — MSC advises matching amplifier wattage and enclosure type for your space. Authorized Ahuja distributor; contact us for BOM and delivery. The Ahuja SK-12FRX is a 100W high efficiency 30.
48cm (12”) dual cone full range speaker with 8Ω nominal impedance. Wide 50–16,000Hz response with high quality imported parts for low distortion and clean, transparent sound.
Features
- 30.48cm (12") dual cone full range PA speaker with a very wide frequency range 50–16,000Hz.
- Nominal impedance 8Ω — pair with the correct amplifier load.
- High quality specially designed imported parts for low distortion and a clean transparent sound.
Specifications, Q&A and videos
| Power Rating | 100W RMS / 200W Programme |
|---|---|
| Nominal Diameter | 305 mm (12”) |
| Nominal Impedance | 8Ω |
| Sensitivity (1W/1m ) | 97dB |
| Magnet Weight | 1.1kg |
| Resonant FrequenceY (Fs) | 50Hz |
| DC Resistance (Re) | 6.4Ω |
| Voice Coil Diameter | 1.5” |
| Overall Diameter | 311 mm |
| Depth | 130 mm |
| Baffle Hole Diameter | 285 mm |
| Bolt Mount Diameter (PCD) | 292 mm (8 Bolts) |
| Weight | 3.20kg |
What type of high efficiency 30.48cm (12”) dual cone full range speaker is the SK-12FRX?
The SK-12FRX is an Ahuja high efficiency 30.48cm (12”) dual cone full range speaker rated 100 WATTS. Ahuja SK-12FRX loudspeakers fit distributed PA and install projects — MSC advises matching amplifier wattage and enclosure type for your space. Available from Mansukhlal Sales Corporation, an authorized dealer.
What are the main features of the SK-12FRX?
30.48cm (12") dual cone full range PA speaker with a very wide frequency range 50–16,000Hz; Nominal impedance 8Ω — pair with the correct amplifier load; High quality specially designed imported parts for low distortion and a clean transparent sound.
What is the nominal diameter of the SK-12FRX?
The SK-12FRX nominal diameter is 305 mm (12”).
What is the nominal impedance of the SK-12FRX?
The SK-12FRX nominal impedance is 8Ω.
What is the sensitivity (1w/1m ) of the SK-12FRX?
The SK-12FRX sensitivity (1w/1m ) is 97dB.
What is the magnet weight of the SK-12FRX?
The SK-12FRX magnet weight is 1.1kg.
What is the resonant frequencey (fs) of the SK-12FRX?
The SK-12FRX resonant frequencey (fs) is 50Hz.
