SM Professional
RAX 5020
- Power
- 5600 WATTS
- Channels
- 2 Channels
- Series
- RAX Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers
The RAX 5020 is our high-performance and cost-effective power amplifiers designed to deliver high power, rock-solid stability, and superb acoustic characteristics.
Features
- High-current toroidal transformers with high-endurance cores for a wide transient response.
- Audio-grade rectifier capacitors for superior sonic performance.
- Hgh-quality double-sided PTH PCBs and components ensure reliability even in tough ambient environs.
- 3 switchable operational modes: stereo, parallel, and bridge.
- Intelligent cooling via large 120mm temperature-controlled high speed fans.

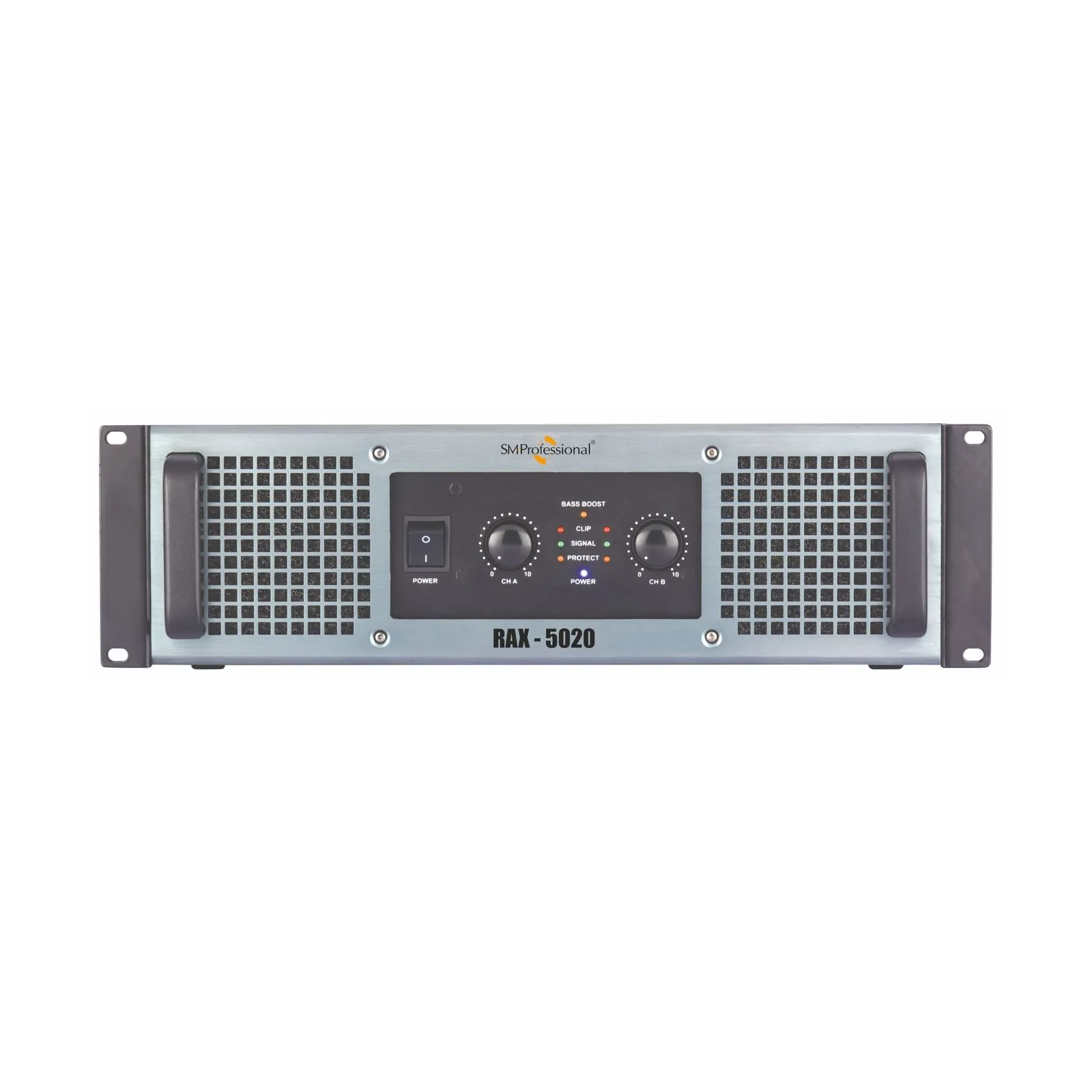

- LED indicators on the front panel for power, signal, clip, bass boost, and protect modes.
- Classy brushed aluminum finish front dial plate.
Specifications, Q&A and videos
| Power Output | heading |
|---|---|
| 2 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 2800 W |
| 2 Ω (EIA), 1kHz , 1%THD | 2 x 3700 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1900 W |
| 4 Ω (EIA), 1kHz , 1%THD | 2 x 2500 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1200 W |
| 8 Ω (EIA), 1kHz , 1%THD | 2 x 1400 W |
| Bridged Mode | heading |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 5600 W |
| 8 Ω (T rue RMS),20Hz-20kHz,1% THD | 3800 W |
| Damping factor (8 Ω) | > 350:1 |
| Frequency Range | 20Hz-20kHz (± 0.5dB) |
| Protection | Temperature, DC, Short Circuit, Soft-Start |

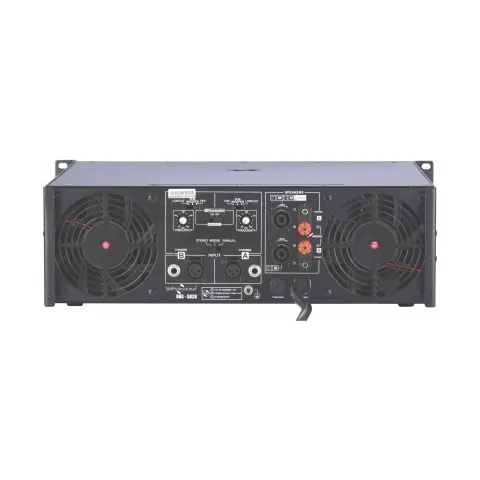

| Input Connector (Per Channel) | XLR, jack stereo 6.3mm |
| Output Connector (Per Channel) | Speakon and Binding Post |
| Dimensions (W x D x H) mm | 482 x 527 x 133 (3U) |
| Net Weight (Kg) | 32 |
| Series | RAX Series |
The RAX 5020 is an SM Professional PA product in the RAX Series rated 5600 WATTS. The RAX 5020 is our high-performance and cost-effective power amplifiers designed to deliver high power, rock-solid stability, and superb acoustic characteristics. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
High-current toroidal transformers with high-endurance cores for a wide transient response; Audio-grade rectifier capacitors for superior sonic performance; Hgh-quality double-sided PTH PCBs and components ensure reliability even in tough ambient environs; 3 switchable operational modes: stereo, parallel, and bridge; Intelligent cooling via large 120mm temperature-controlled high speed fans; LED indicators on the front panel for power, signal, clip, bass boost, and protect modes.
The RAX 5020 2 ω (true rms),20hz-20khz,1% thd is 2 x 2800 W.
The RAX 5020 2 ω (eia), 1khz , 1%thd is 2 x 3700 W.
The RAX 5020 4 ω (true rms),20hz-20khz,1% thd is 2 x 1900 W.
The RAX 5020 4 ω (eia), 1khz , 1%thd is 2 x 2500 W.
The RAX 5020 8 ω (true rms),20hz-20khz,1% thd is 2 x 1200 W.
