SM Professional

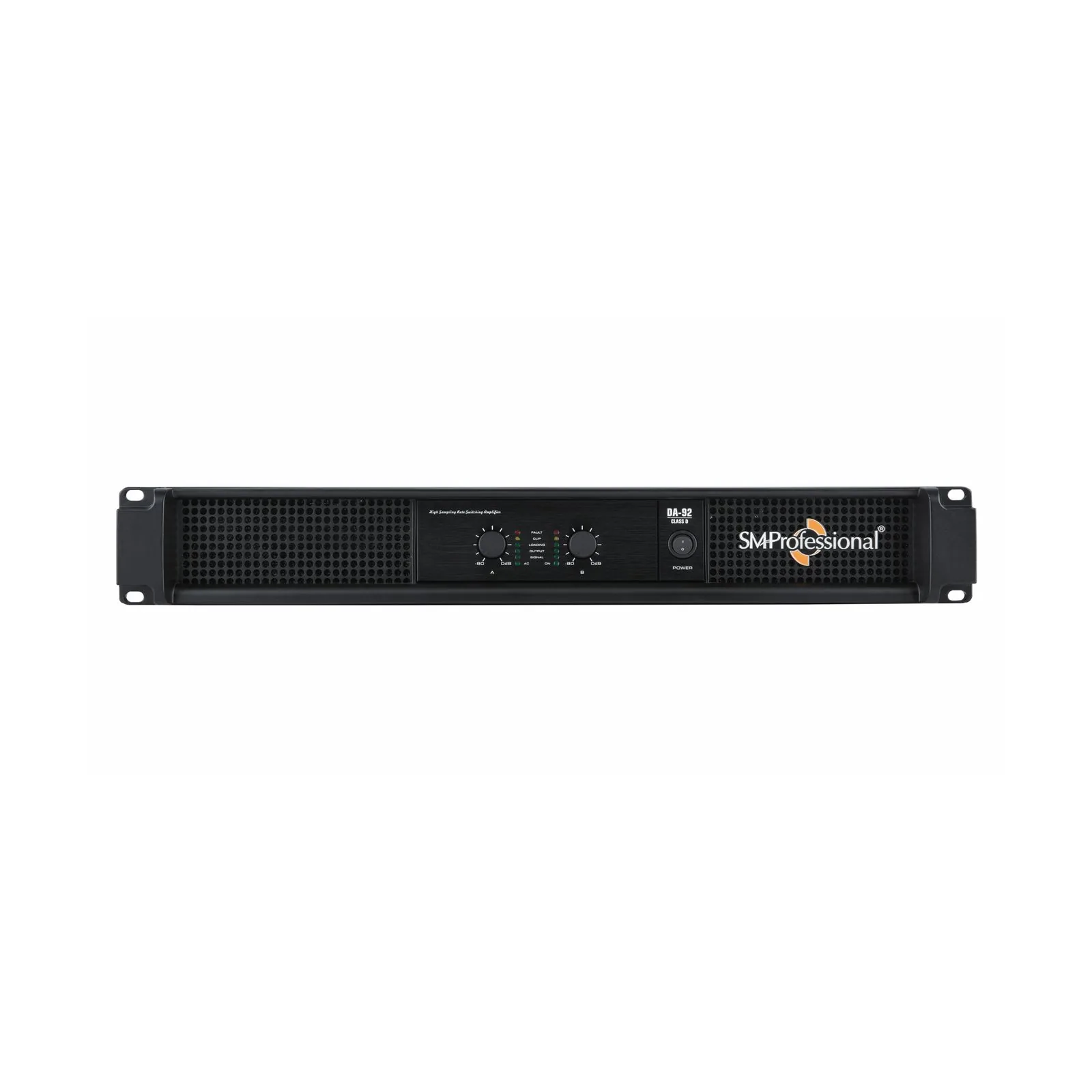

DA 92
- Power
- 4600 WATTS
- Channels
- 2 Channels
- Series
- DA Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers
The DA series is our range of powerful and efficient professional class D digital amplifiers.
Integrating an efficient switched-mode power supply (SMPS), high resolution sampling rate and a host of advanced technologies and premium components, the sleek and lightweight amplifiers are geared for driving high wattage loudspeakers in live and touring applications.
Features
- Highly powerful and efficient professional class D amplifiers
- Designed for driving high wattage loudspeakers with utmost ease
- Switched-mode power supply (SMPS) for high efficiency
- High resolution sampling rate for high fidelity signal conversion and clear sound reproduction
- Power Factor Correction (PFC) & Pulse Width Modulation (PWM) for accuracy and efficiency
- Compact 19” 1.5U size and less than 9kg weight for easy transportation
- Integrates high capacity inductor cores, high tolerance capacitor banks and premium PCB components
- Large Aluminium heat sink and 3 x low-noise high-speed fans for optimal heat dissipation
- Short circuit, over voltage, over current, thermal, clip limiter and soft-start for protection
- Audio-grade Neutrik™ balanced XLR input and link and Speakon loudspeaker connectors
- Sensitivity selection between 1.4V, 2V and 3V for flexibility in input source connections
- Classy brushed Aluminium finish front dial plate
Specifications, Q&A and videos
| 4Ω | 2 x 4600W |
|---|---|
| 8Ω | 2 x 2300W |
| Sampling Rate | 192kHz |
| Input Sensitivity (Rear Panel) | 1.41V / 1.96V / 2.82V (Switchable) |
| Frequency Response | 20Hz-20kHz (±0.35dB) 0.05% Typical |
| Input Impedance | 9.5KΩ Balanced | 4.75KΩ Unbalanced |
| Protections | Short Circuit, Over Voltage, Over Current, Thermal, Clip Limiter, Soft-Start |
| Input Connector (Per Channel) | Neutrik® XLR (F) |
| Link Connector (Per Channel) | Neutrik® XLR (M) |
| Output Connector (Per Channel) | Neutrik® Speakon |
| Cooling | 3 x Low-Noise High-Speed Fans |
| Indicators (Per Channel) | Signal / Clip / Loading (Powering) / Fault / AC On / Power On |
| Supply Voltage | 240V~ 50Hz |
| Dimensions (W x D x H) mm | 482 x 405 x 66 (1.5U) |
| Net Weight (Kg) | 8.9 |
The DA 92 is an SM Professional PA product in the DA Series rated 4600 WATTS. The DA series is our range of powerful and efficient professional class D digital amplifiers. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Highly powerful and efficient professional class D amplifiers; Designed for driving high wattage loudspeakers with utmost ease; Switched-mode power supply (SMPS) for high efficiency; High resolution sampling rate for high fidelity signal conversion and clear sound reproduction; Power Factor Correction (PFC) & Pulse Width Modulation (PWM) for accuracy and efficiency; Compact 19” 1.5U size and less than 9kg weight for easy transportation.
The DA 92 4ω is 2 x 4600W.
The DA 92 8ω is 2 x 2300W.
The DA 92 sampling rate is 192kHz.
The DA 92 input sensitivity (rear panel) is 1.41V / 1.96V / 2.82V (Switchable).
The DA 92 frequency response is 20Hz-20kHz (±0.35dB) 0.05% Typical.
