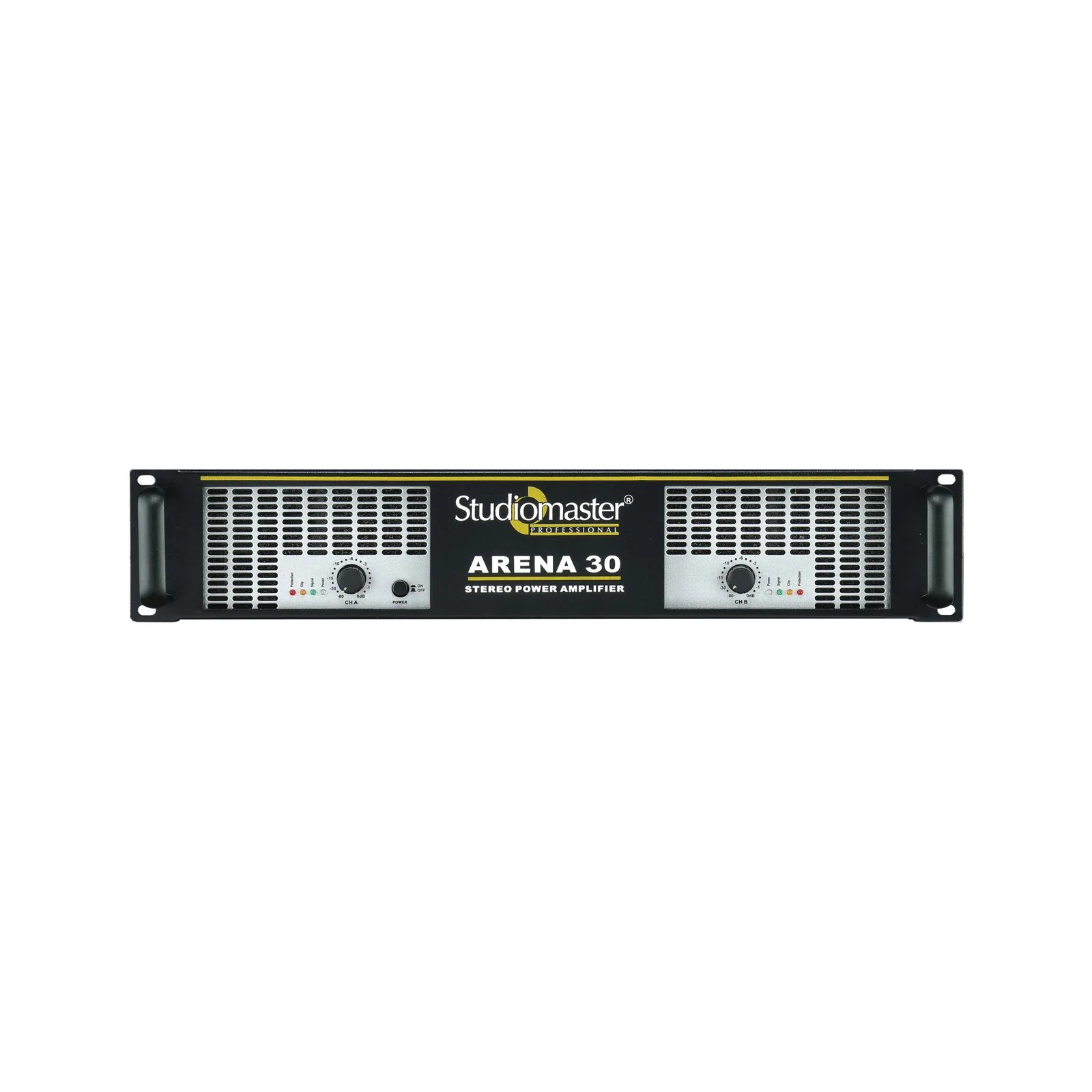

SM Professional
ARENA 30
- Power
- 6050 WATTS
- Channels
- 2 Channels
- Series
- Arena Series
- Category
- Power Amplifiers
- Category
- 2 Channel Power Amplifiers
The SM Professional Arena Series are a range of amplifiers, which boast of excellent sound quality, road worthy toughness & reliability, as well as incredible power.
Features
- Professional high-power amplifiers.
- Balanced XLR Input & Link Out.
- High current torroidal transformer.
- Overdrive, DC, Short circuit, High temperature protections.
- Switchable modes (Stereo, Parallel & Bridge with indication).
- Sensitivity, Low cut, Limiter, Ground/Lift selection switches.
- Each channel LED indication for Power, Signal, Clip & Protect.
- Temperature controlled fans with front to back airflow .
- Main voltage operation from 180V to 240V .
- Output: Speakon connections.
Specifications, Q&A and videos
| Series | Arena Series |
|---|---|
| 2 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1500 W |
| 2 Ω (EIA), 1kHz , 1%THD | 2 x 3025 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 1100 W |
| 4 Ω (EIA), 1kHz , 1%THD | 2 x 1800 W |
| 8 Ω (True RMS),20Hz-20kHz,1% THD | 2 x 750 W |
| 8 Ω (EIA), 1kHz , 1%THD | 2 x 1055 W |
| 4 Ω (True RMS), 20Hz-20kHz, 1% THD | 3000 W |
| 4 Ω (EIA), 1kHz , 1%THD | 6050 W |
| 8 Ω (T rue RMS), 20Hz-20kHz, 1% THD | 2200 W |
| 8 Ω (EIA), 1kHz , 1%THD | 3600 W |
| Damping factor (8 Ω) | > 400 :1 |
| Frequency Response | 20Hz - 20kHz (-3dB) |
| Protection Devices | Temperature, DC, Short Circuit, Soft-Start, Thermal Power Transformer |
| Input Connector (Per Channel) | XLR |
| Output Connector (Per Channel) | Speakon Connector |
| Dimensions (W x D x H)mm | 482 x 432 x 88 (2U) |
| Net Weight (Kgs.) | 22 |
The ARENA 30 is an SM Professional Power amplifiers for live and install in the Arena Series rated 6050 WATTS. The SM Professional Arena Series are a range of amplifiers, which boast of excellent sound quality, road worthy toughness & reliability, as well as incredible power. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional high-power amplifiers; Balanced XLR Input & Link Out; High current torroidal transformer; Overdrive, DC, Short circuit, High temperature protections; Switchable modes (Stereo, Parallel & Bridge with indication); Sensitivity, Low cut, Limiter, Ground/Lift selection switches.
The ARENA 30 2 ω (true rms),20hz-20khz,1% thd is 2 x 1500 W.
The ARENA 30 2 ω (eia), 1khz , 1%thd is 2 x 3025 W.
The ARENA 30 4 ω (true rms),20hz-20khz,1% thd is 2 x 1100 W.
The ARENA 30 4 ω (eia), 1khz , 1%thd is 2 x 1800 W.
The ARENA 30 8 ω (true rms),20hz-20khz,1% thd is 2 x 750 W.
