Ahuja

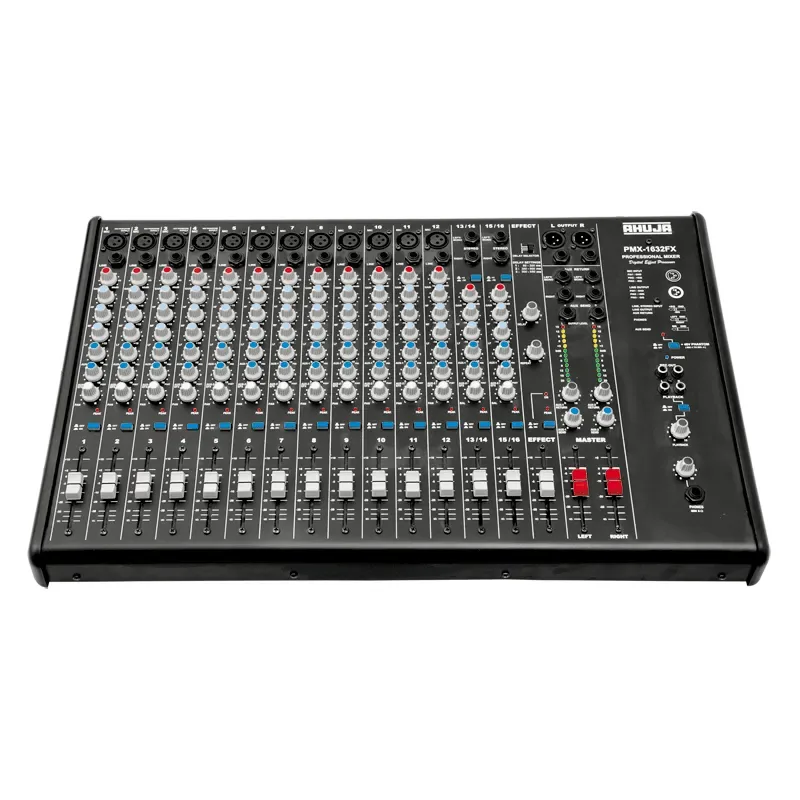

The Ahuja PMX-1632FX is a 48v phantom supply on 4 channels. It has a balanced mic/line input.
All MIC inputs are through 3 pin F/XLR connectors and All LINE and STEREO inputs are through 6. 3mm stereo phone jack sockets.
| Impedance/Gain | 2kΩ Balanced/65dB |
|---|---|
| Impedance/Gain (-10dBu Input) | 10kΩ Balanced/14dB |
| Impedance/Gain (+4dBu Input) | 10kΩ Balanced/0dB |
| THD | <0.08% |
| L/R Line Output | 25Hz - 20kHz (+0, -1dB) |
| Bass/Mid/Treble | ±12dB at 100Hz/2kHz/10kHz |
| Clip LED Indication | 4 dB prior to true clip |
| Nominal/Max Level | 4dBu/21dBu (1.22V/9V) |
| Impedance | 600Ω |
| Delay System | Digital Signal Processing |
| Delay Range Settings | 1: 60-300ms, 2: 300-500ms, 3: 500-650ms |
| Headphone Output | 200mV at 8Ω, THD <1% |
| Mic Input to Line Outputs | 78dB |
| Line Input to Line Outputs | 58dB |
| Stereo Input to Line Outputs | 28dB (-10dBu Input), 14dB (+4dBu Input) |
| AUX Send (Pre) | 1.4V/100Ω Unbalanced |
| AUX Send (Post) | 2.7V/100Ω Unbalanced |
| AUX Return (L&R) | 150mV/10kΩ Balanced |
| Record Output | 250mV/600Ω |
| Playback Input | 250mV/1kΩ (variable thru’ GAIN control) |
| Signal to Noise Ratio | >70dB |
| Power Supply | AC: 220-240V, 50Hz |
| Dimensions | W609 × H110 × D435mm |
| Weight | 9.7kg |
The PMX-1632FX is an Ahuja 48v phantom supply on 4 channel in the PMX Mixers. Available from Mansukhlal Sales Corp, an authorized dealer.
PMX-1632FX has 12 MIC/LINE Balanced Mono input channels and 2 STEREO Balanced input channels; MIC/LINE Balanced Mono inputs with enhanced headroom; All MIC inputs are through 3 pin F/XLR connectors and All LINE & STEREO inputs are through 6.3mm stereo phone jack sockets; Four MIC inputs (MIC-1 to MIC-4) are available with 48V phantom supply which can be switched ON/OFF through a common switch; STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu; Separate EFFECT channel is provided for controlling the built-in digital effect processor through a delay selector switch and delay, repeat and level controls.
The PMX-1632FX impedance/gain is 2kΩ Balanced/65dB.
The PMX-1632FX impedance/gain (-10dbu input) is 10kΩ Balanced/14dB.
The PMX-1632FX impedance/gain (+4dbu input) is 10kΩ Balanced/0dB.
The PMX-1632FX thd is <0.08%.
The PMX-1632FX l/r line output is 25Hz - 20kHz (+0, -1dB).
