Ahuja
The Ahuja PMX-1032DFX is a 48v phantom supply on 4 channels with built-in MP3 player. It has a balanced mic/line input.
Balanced Left and Right Line outputs through M/XLR connectors as well as 6. 3mm stereo phone jack sockets.
| Impedance/Gain | 2kΩ Balanced/65dB |
|---|---|
| Impedance/Gain (-10dBu Input) | 10kΩ Balanced/14dB |
| Impedance/Gain (+4dBu Input) | 10kΩ Balanced/0dB |
| THD | <0.08% |
| FREQUENCY RESPONSE | 25Hz - 20kHz (+0, -1dB) |
| Bass/Mid/Treble | ±12dB at 100Hz/2kHz/10kHz |
| CLIP LED INDICATION | 4 dB prior to true clip |
| Nominal/Max Level | 4dBu/21dBu (1.22V/9V) |
| IMPEDANCE | 600Ω |
| DELAY SYSTEM | Digital Signal Processing |
| DELAY RANGE SETTINGS | 1: 60-300ms, 2: 300-500ms, 3: 500-650ms Variable from 20 to 300ms |
| DIGITAL PLAYER | MP3 Player with USB, SD and MMC Card Reader |
| HEADPHONE OUTPUT | 200mV at 8Ω, THD <1% |
| Mic Input to Line Outputs | 78dB |
| Line Input to Line Outputs | 58dB |
| Stereo Input to Line Outputs | 28dB (-10dBu Input) 14dB (+4dBu Input) |
| AUX Send (Pre) | 1.4V/100Ω Unbalanced |
| AUX Send (Post) | 2.7V/100Ω Unbalanced |
| AUX Return (L&R) | 150mV/10kΩ Balanced |
| Record Output (L&R) | 250mV/600Ω |
| Playback Input (L&R) | 250mV/1kΩ (variable through GAIN control) |
| SIGNAL TO NOISE RATIO | >70dB |
| POWER SUPPLY | AC: 220-240V, 50Hz |
| DIMENSIONS | W465 × H110 × D435 mm |
| WEIGHT | 7.70kg |
The PMX-1032DFX is an Ahuja 48v phantom supply on 4 channels with built-in MP3 player in the PMX Mixers. Available from Mansukhlal Sales Corp, an authorized dealer.

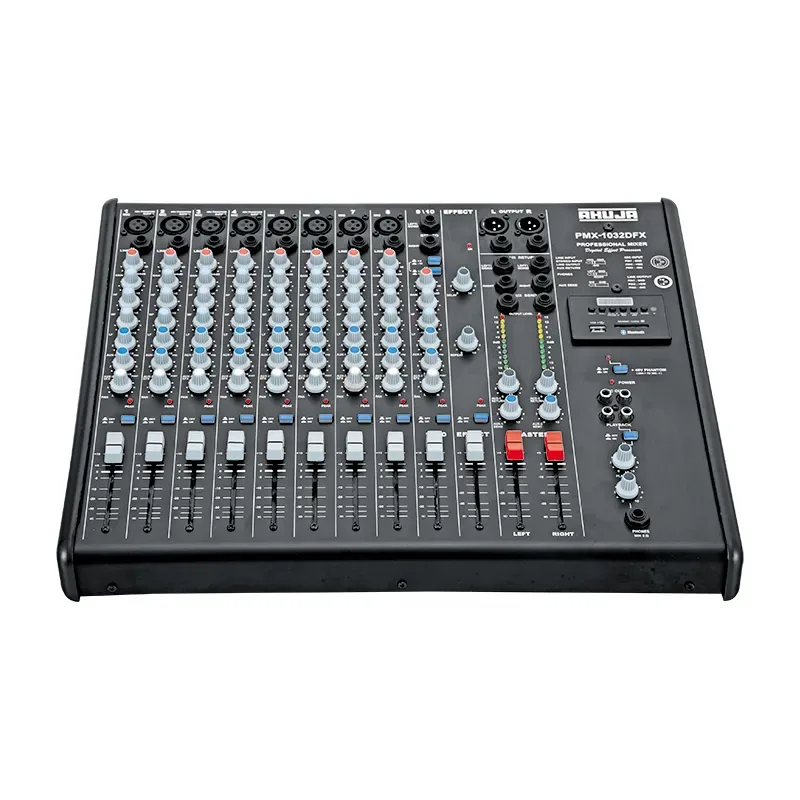

Ahuja introduces a high performance Professional PA Mixer PMX-1032DFX, which has 8 MIC/LINE input channels, 1 Stereo input channel and built in MP3 player. It is designed for exceptional sound quality & superior reliability in both monitoring and live sound applications; Rugged, reliable, high quality analog mixer with user-friendly construction & aesthetically designed side panels; Eight MIC/LINE Balanced Mono inputs with enhanced headroom; One STEREO Balanced input in two selectable sensitivities of -10dBu & +4dBu; Built-in MP3 player with USB, SD/MMC card reader and Bluetooth; Seperate EFFECT channel is provided for controlling the built-in digital effect processor through delay, repeat and level controls.
The PMX-1032DFX impedance/gain is 2kΩ Balanced/65dB.
The PMX-1032DFX impedance/gain (-10dbu input) is 10kΩ Balanced/14dB.
The PMX-1032DFX impedance/gain (+4dbu input) is 10kΩ Balanced/0dB.
The PMX-1032DFX thd is <0.08%.
The PMX-1032DFX frequency response is 25Hz - 20kHz (+0, -1dB).
