Ahuja
AMX-1412
- Channels
- 14 Channels
- Series
- AMX Mixers
- Category
- Mixers
- Category
- Analog Mixers

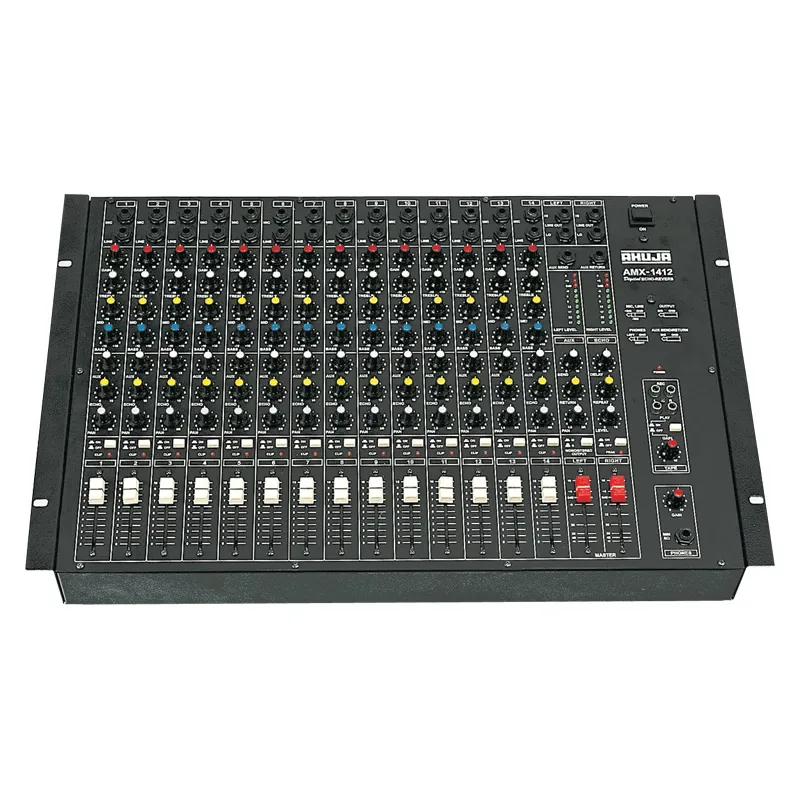

The Ahuja AMX-1412 is a 14-channel PA analog mixer. Echo section provided with Delay, Repeat and Level controls.
Tape section for Record and Playback facility. Each channel has GAIN, BASS, MID, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
Features
- Input Channels : Each Channel has separate 1/4" balanced phone jack for Mic and Line & accepts both balanced & unbalanced signals.
- AUX Control : This controls the level of the channel in the final mix to Aux Send output.
- AUX Send & AUX Return : These have been provided for sending the pre-fader output of channels for monitoring or for adding a Special Effects Unit.
- MONO/STEREO Output : Mono output is available from either Left & Right output jacks when the switch is in 'Mono' position.
- Each channel has GAIN, BASS, MID, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
- Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
Specifications, Q&A and videos
| Power Requirements | AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery) |
|---|---|
| MIC INPUT (Impedance/Gain) | 2kΩ/62dB |
| LINE INPUT (Impedance/Gain) | 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB |
| Distortion | < 0.08% |
| Frequency Response | 30Hz - 20kHz (+0, -1dB) |
| Tone Controls | Bass : ±12dB at 100Hz, Mid : ±12dB at 2kHz, Treble : ± 12dB at 10kHz |
| Line Output LO | -10dBm/+2dBm (200mV/1V) |
| Line Output HI | 0dBm/+17dBm (775mV/5.5V) |
| ECHO/Reverb System | Digital Signal Processing |
| Signal to Noise Ratio | >70dB (0dBm, 0.775V) |
| Dimensions | W633 × H93 × D420 mm |
| Weight | 9.4kg |
The AMX-1412 is an Ahuja 14-channel PA analog mixer in the AMX Mixers. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Input Channels : Each Channel has separate 1/4" balanced phone jack for Mic and Line & accepts both balanced & unbalanced signals; AUX Control : This controls the level of the channel in the final mix to Aux Send output; AUX Send & AUX Return : These have been provided for sending the pre-fader output of channels for monitoring or for adding a Special Effects Unit; MONO/STEREO Output : Mono output is available from either Left & Right output jacks when the switch is in 'Mono' position; Each channel has GAIN, BASS, MID, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator; Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
The AMX-1412 power requirements is AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery).
The AMX-1412 mic input (impedance/gain) is 2kΩ/62dB.
The AMX-1412 line input (impedance/gain) is 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB.
The AMX-1412 distortion is < 0.08%.
The AMX-1412 frequency response is 30Hz - 20kHz (+0, -1dB).
