Ahuja
AMX-912
- Channels
- 9 Channels
- Series
- AMX Mixers
- Category
- Mixers
- Category
- Analog Mixers

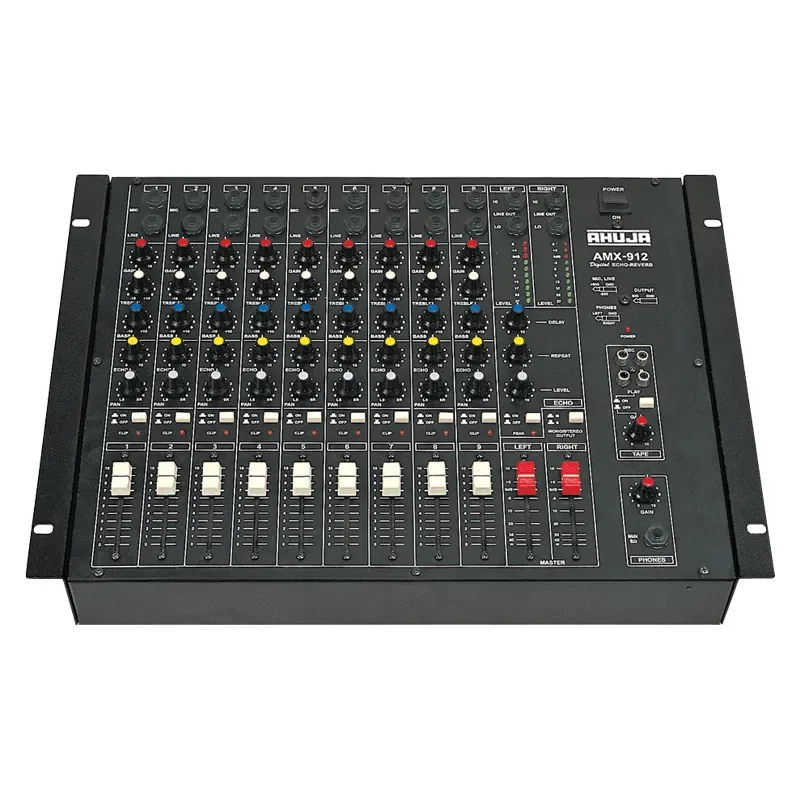

The Ahuja AMX-912 is a 9-channel PA analog mixer. Input Channels: Each Channel has separate 1/4" balanced phone jack for Mic and Line and accepts both balanced and unbalanced signals.
Echo section provided with Delay, Repeat and Level controls. Tape section for Record and Playback facility.
Features
- Input Channels: Each Channel has separate 1/4" balanced phone jack for Mic & Line & accepts both balanced & unbalanced signals.
- Mono/Stereo Output: Mono output is available from Left & Right output jacks when the switch is in 'Mono' position.
- Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
- Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
Specifications, Q&A and videos
| Power Requirements | AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery) |
|---|---|
| MIC Input (Impedance/Gain) | 2kΩ/62dB |
| LINE Input (Impedance/Gain) | 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB |
| Distortion | < 0.08% |
| Frequency Response | 30Hz - 20kHz (+0, -1dB) |
| Tone Controls | Bass: ±12dB at 100Hz, Treble : ± 12dB at 10kHz |
| Line Output LO | -10dBm/+2dBm (200mV/1V) |
| Line Output HI | 0dBm/+17dBm (775mV/5.5V) |
| ECHO/Reverb System | Digital Signal Processing |
| Signal to Noise Ratio | >70dB (0dBm, 0.775V) |
| Dimensions | W483 × H93 × D366 mm |
| Weight | 6.7kg |
The AMX-912 is an Ahuja 9-channel PA analog mixer in the AMX Mixers. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Input Channels: Each Channel has separate 1/4" balanced phone jack for Mic & Line & accepts both balanced & unbalanced signals; Mono/Stereo Output: Mono output is available from Left & Right output jacks when the switch is in 'Mono' position; Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator; Echo section provided with Delay, Repeat & Level controls. Tape section for Record & Playback facility.
The AMX-912 power requirements is AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery).
The AMX-912 mic input (impedance/gain) is 2kΩ/62dB.
The AMX-912 line input (impedance/gain) is 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB.
The AMX-912 distortion is < 0.08%.
The AMX-912 frequency response is 30Hz - 20kHz (+0, -1dB).
