Ahuja
AMX-912DP
- Channels
- 9 Channels
- Series
- AMX Mixers
- Category
- Mixers
- Category
- Analog Mixers

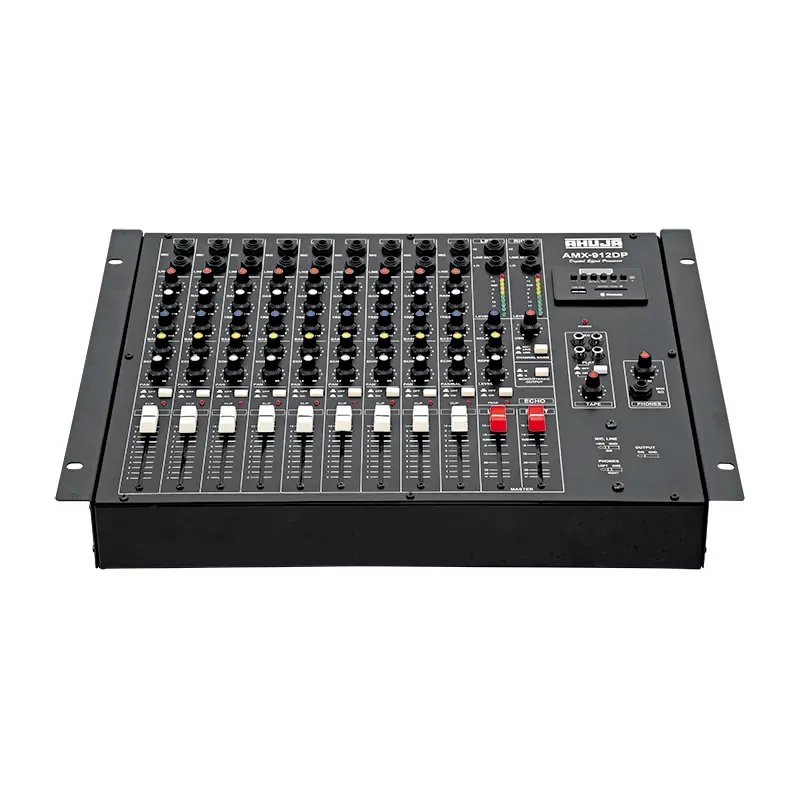

The Ahuja AMX-912DP is a 9-channel PA analog mixer with built-in MP3 player and digital effects. USB Playback: Built-in MP3 Player selectable through Channel 9/USB Switch and controllable through an independant USB input volume control.
Channel 9 can be used for Mic and Line inputs or USB Playback function. Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
Features
- Input Channels: Each Channel has separate 6.3mm (1/4") balanced phone jack for Mic & Line which accepts both balanced & unbalanced signals.
- USB Playback: Built-in MP3 Player selectable through Channel 9/USB Switch and controllable through an independant USB input volume control. Channel 9 can be used for Mic & Line inputs or USB Playback function.
- Mono/Stereo Output: Mono output is available from Left & Right output jacks when the switch is in 'Mono' position.
- Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator.
- Echo section provided with Delay, Repeat & Level controls.
- Stereo RCA IN/OUT for record and playback.
- Headphone output with Level Control for output monitoring.
Specifications, Q&A and videos
| POWER REQUIREMENTS | AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery) |
|---|---|
| MIC INPUT (Impedance/Gain) | 2kΩ/62dB |
| LINE INPUT (Impedance/Gain) | 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB |
| DISTORTION | < 0.08% |
| FREQUENCY RESPONSE | 30Hz - 20kHz (+0, -1dB) |
| TONE CONTROLS | Bass : ±12dB at 100Hz, Treble : ± 12dB at 10kHz |
| OUTPUT | Line Output LO: -10dBu/+2dBu (200mV/1V), Line Output HI: 0dBu/+17dBu (775mV/5.5V) |
| DELAY SYSTEM | Digital Signal Processing |
| DIGITAL PLAYER | MP3 Player with USB, SD and MMC Card Reader |
| SIGNAL TO NOISE RATIO | >70dB (0dBm, 0.775V) |
| DIMENSIONS | W483 × H93 × D366 mm |
| WEIGHT | 6.90kg |
The AMX-912DP is an Ahuja 9-channel PA analog mixer with built-in MP3 player and digital effect in the AMX Mixers. The Ahuja AMX-912DP is a 9-channel PA analog mixer with built-in MP3 player and digital effects. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Input Channels: Each Channel has separate 6.3mm (1/4") balanced phone jack for Mic & Line which accepts both balanced & unbalanced signals; USB Playback: Built-in MP3 Player selectable through Channel 9/USB Switch and controllable through an independant USB input volume control. Channel 9 can be used for Mic & Line inputs or USB Playback function; Mono/Stereo Output: Mono output is available from Left & Right output jacks when the switch is in 'Mono' position; Each channel has GAIN, BASS, TREBLE, ECHO, PAN and slide LEVEL controls with CLIP LED indicator; Echo section provided with Delay, Repeat & Level controls; Stereo RCA IN/OUT for record and playback.
The AMX-912DP power requirements is AC: 220-240V 50/60Hz, DC: 24v (2×12V Car Battery).
The AMX-912DP mic input (impedance/gain) is 2kΩ/62dB.
The AMX-912DP line input (impedance/gain) is 20kΩ Balanced/42dB, 10kΩ Unbalanced/42dB.
The AMX-912DP distortion is < 0.08%.
The AMX-912DP frequency response is 30Hz - 20kHz (+0, -1dB).
