SM Professional
Eos 24.6
- Channels
- 24 Channels
- Category
- Mixers
- Category
- Analog Mixers

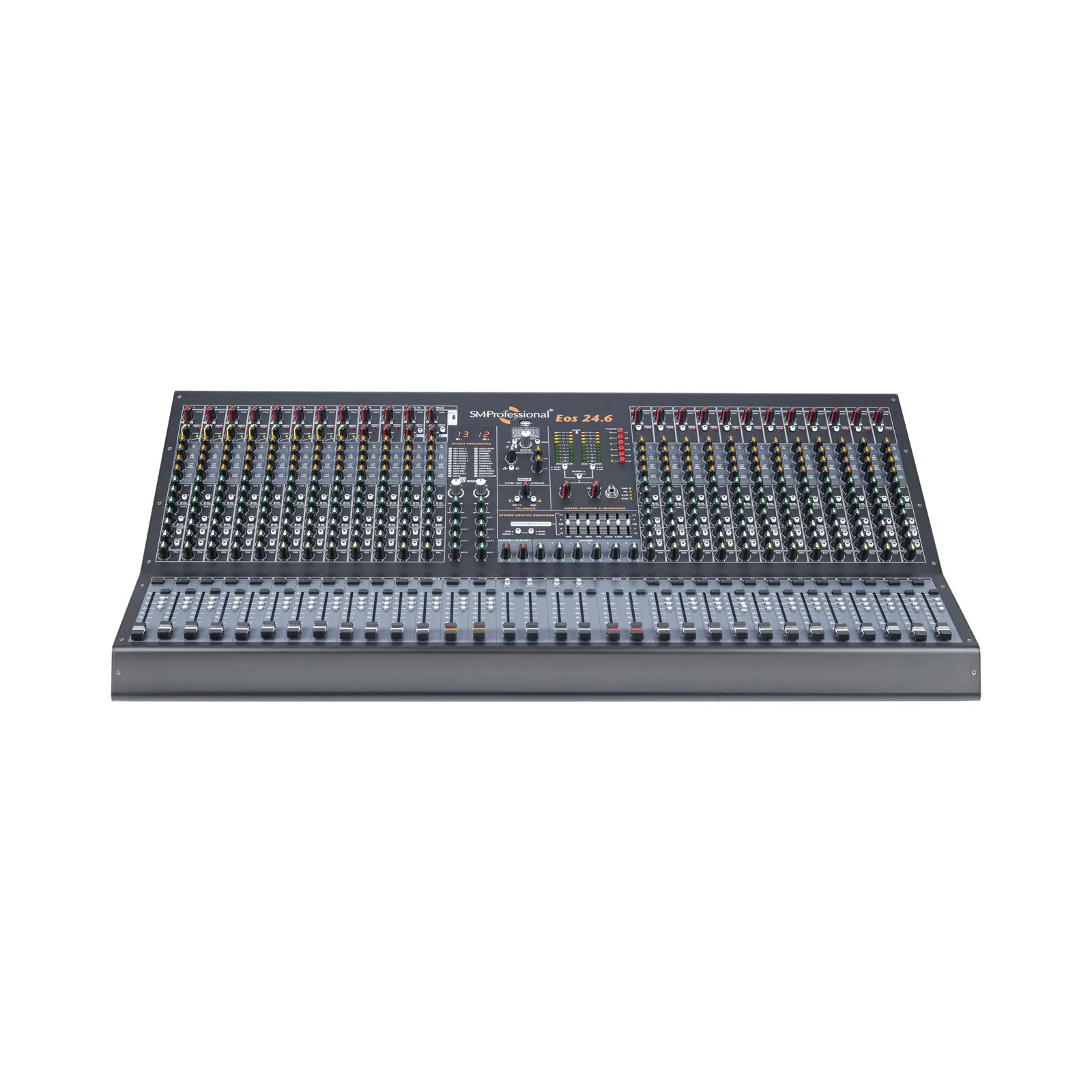

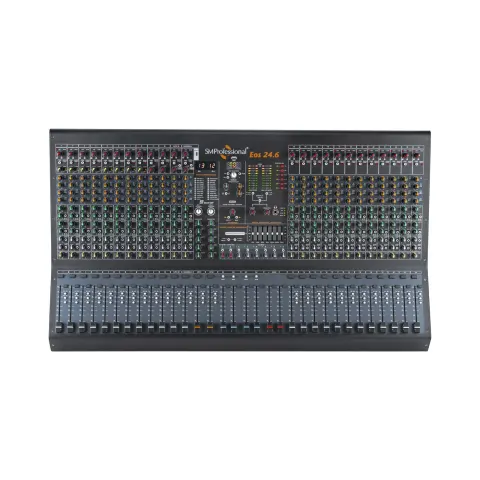

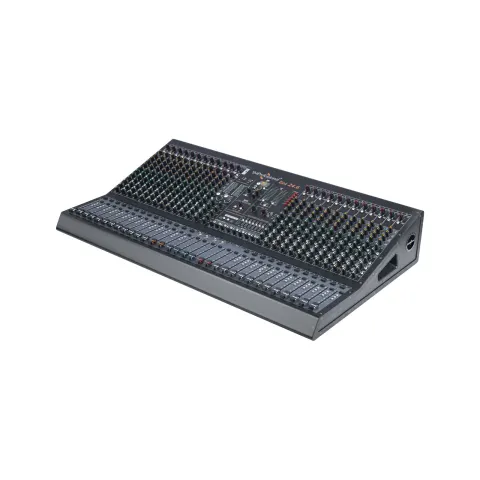

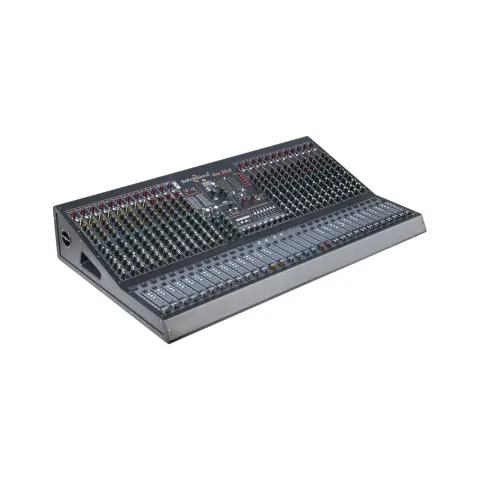

The SM Professional Eos 24.6 is a large-format 24 channel live mixing console.
Featuring 24 XLR inputs, 6 Aux sends, 4 subgroups, multiple music playback options, advanced routing and more, the mixing console is ideal for live, front-of-house, touring, and complex installation applications in large venues.
Features
- 24 Channels: 24 Mic / 28 Line Inputs.
- MON:Ster (Mono-Stereo) Inputs for Full Flexibility
- Ultra low-noise preamps with wide headroom and dynamic range.
- 75Hz low cut on mono channels.
- 4-Band EQ on all Inputs.
- 6 Aux Sends – 4 Pre/Post and 2 Post.
- 4 Sub Groups with Individual ¼” Outputs.
- Insert (Send/Return) On the First 8 Mono Channels and Main Output.
- Split Global Switched +48V Phantom Power Supply (6 Groups of 4 Channels Each).
- Responsive Large 100mm Faders for Easy Mixing.
- One Knob Compressor on Channels 1-8.
- Dual Multi-EFX Processor with 24 DSP Presets And Editable Parameters.
- Provisions to Route EFX to Monitor via 4 Aux Buses.
- USB audio interface with plug & play connectivity for recording and playback using a PC.
- USB Type C Mobile Media Player and Audio Interface
- USB MP3 Media Player & RECORDER with Bluetooth.
- Level Control, 2-band EQ with Internal/External Media Input Selection.
- Stereo AUX Returns.
- Balanced XLR and ¼” Jack Main Outputs.
- Mute, Solo, Group and Main (L-R) routing per Channel.
- Illuminated Mute & PFL (Solo) Switches.
- Additional Talkback Microphone Input.
- Stereo RCA Input and Record Output.
- Headphone Output with Level Control.
- 7-Band Stereo Graphic Equalizers.
- Dual Assignable 10-Segment LED Meters.
- Ergonomically Angled Design for Better Visibility.

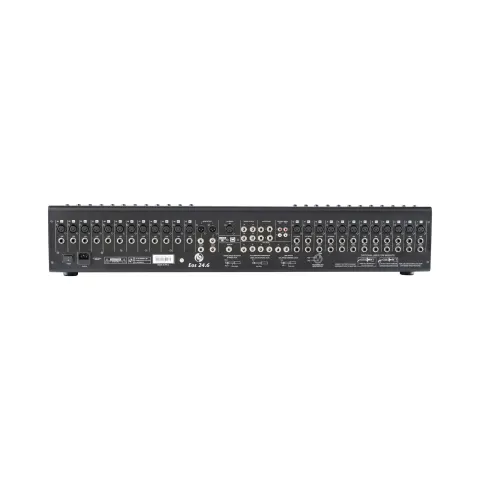

- Clutter-free Rear Panel Input and Output Connectivity.
Specifications, Q&A and videos
| Series | Eos Series |
|---|---|
| Nominal Gain (Mic / Line / Stereo Line) | 60dB / 40dB / 20dB |
| Max Gain (Mic / Line / Stereo Line) | 80dB / 60dB / 40dB |
| Mic (Gain Min / Gain Max) | -10dBu / -60dBu |
| Line (Gain Min / Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min / Gain Max) | +10dBu / -20dBu |
| Aux Return (Nominal / Max) | -10dBu / +30dBu |
| Main Output (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Insert In/Out (Nominal / Max) | 0dBu (0.775V RMS) / +20dBu (7.75V RMS) Max |
| Mono MIC (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Stereo Line (Hi / Hi-Mid / Low-Mid / Low) | ±15dB @ 12kHz / 2.5kHz / 400Hz / 80Hz |
| Mic Input Impedance | 5 KΩ Balanced |
| Line Input Impedance | 20KΩ Balanced / 10KΩ Unbalanced |
| Frequency Response | 20Hz-20kHz (+0 / -1dB) |
| Total Harmonic Distortion | < 0.02% |
| MIC EIN (Equivalent Input Noise) | -128dB |
| Main Out/Group Out | -80dB |
| Dimensions (W x D x H) mm | 940 x 540 x 170 |
| Net Weight (Kg) | 14 |
The Eos 24.6 is an SM Professional large-format 24 channel live Mixer. The SM Professional Eos 24.6 is a large-format 24 channel live mixing console. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
24 Channels: 24 Mic / 28 Line Inputs; MON:Ster (Mono-Stereo) Inputs for Full Flexibility; Ultra low-noise preamps with wide headroom and dynamic range; 75Hz low cut on mono channels; 4-Band EQ on all Inputs; 6 Aux Sends – 4 Pre/Post and 2 Post.
The Eos 24.6 series is Eos Series.
The Eos 24.6 nominal gain (mic / line / stereo line) is 60dB / 40dB / 20dB.
The Eos 24.6 max gain (mic / line / stereo line) is 80dB / 60dB / 40dB.
The Eos 24.6 mic (gain min / gain max) is -10dBu / -60dBu.
The Eos 24.6 line (gain min / gain max) is +10dBu / -40dBu.
