SM Professional
AiR Pro 18
- Channels
- 18 Channels
- Series
- AiR Pro Series
- Category
- Mixers
- Category
- Analog Mixers

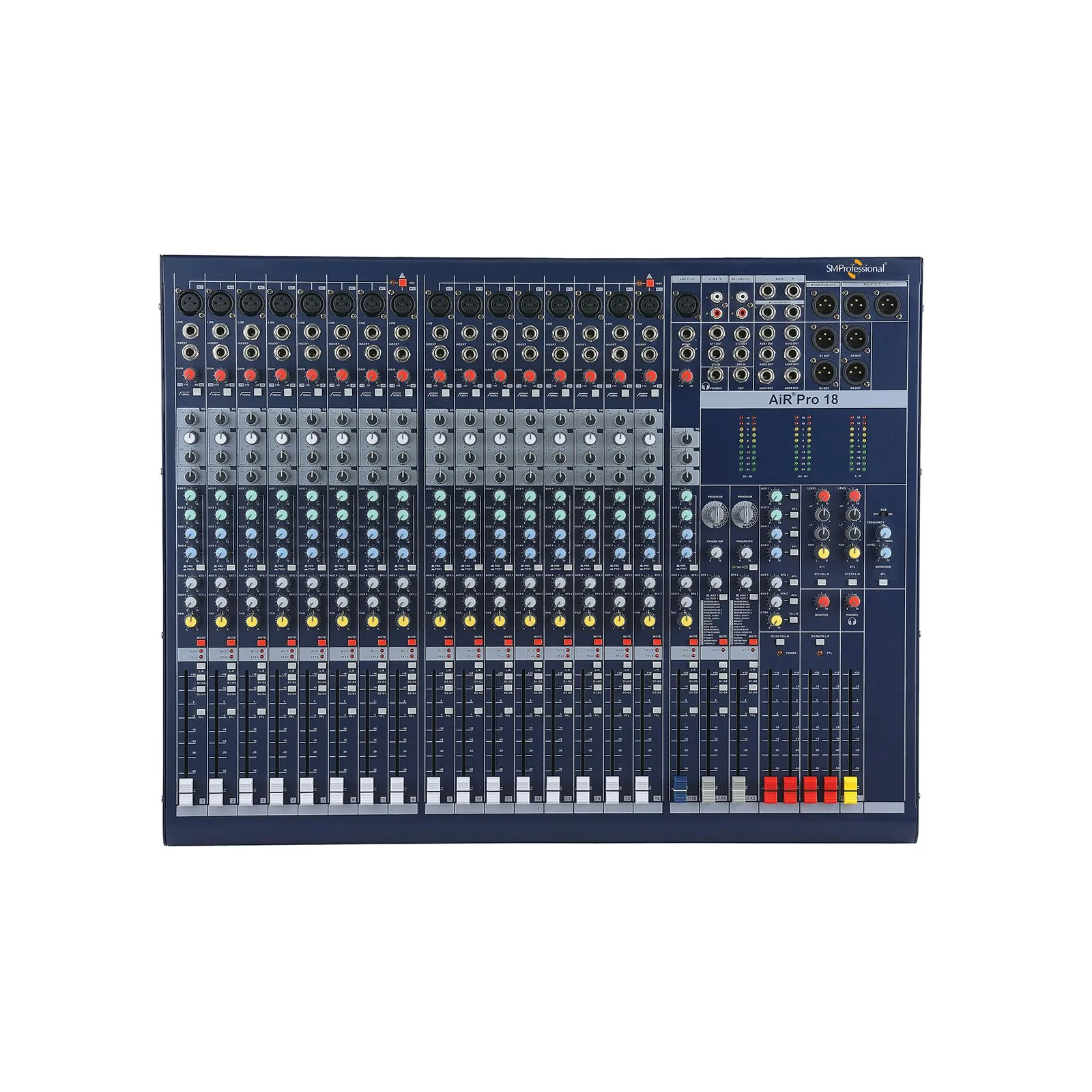

The AiR Pro 18 is a 18 channel Mixing Console with a dual multi effects processor, designed for live, front-of-house touring and installation applications.
Features
- 18 Input Mixer (16 Mic / Line + 1 Stereo Input).
- 6 AUX Channels (4 pre, 2 post).
- Provision on board to route EFX to monitors (via AUX 3 & AUX 4).
- 4 Sub Group with individual outputs.
- Split global Phantom power from 1-8 & 9-16.
- Mono sub output with low frequency selection.
- 3-band EQ with Mid-sweep on mono inputs.
- 3-band EQ on stereo inputs.
- Inserts on mono channel.
- Mix & Group Routing on each channel.
- Stereo AUX Return.
- 100mm faders.
- PFL switch on each channel.
- 100Hz Low cut on each mono channels.
- Peak & Mute LED per channel.
- 12 V Lamp Socket.
- Balanced XLR & Jack main outputs
Specifications, Q&A and videos
| Series | AiR Pro Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu / -20dBu |
| Mic Input | 1.5 KΩ Balanced |
| Line input | 20KΩ (Balanced) /10KΩ (Unbalanced) |
| Main Output & Group Output (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | < 0.02% |
| Signal to Noise Ratio | -80dB |
| Clip indication | 5dB prior to true clip |
| Mono Mic [Treble/Mid(with sweep)/Bass] | ±16dB @ 12KHz/140Hz-3KHz/80 Hz |
| Stereo Mic/Line (Treble/Bass) | ±16dB @ 12KHz/80Hz |
| Phantom Supply | +48V (Split Global for 1-8 & 9-16 Channels) |
| Dimensions (W x D x H)mm | 645 x 506.5 x 111.5 |
| Net Weight (Kgs.) | 12 |
The AiR Pro 18 is an SM Professional 18 channel Mixer in the AiR Pro Series. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
18 Input Mixer (16 Mic / Line + 1 Stereo Input); 6 AUX Channels (4 pre, 2 post); Provision on board to route EFX to monitors (via AUX 3 & AUX 4); 4 Sub Group with individual outputs; Split global Phantom power from 1-8 & 9-16; Mono sub output with low frequency selection.
The AiR Pro 18 nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The AiR Pro 18 max gain (mic/line/stereo line) is 80dB/60dB/40dB.
The AiR Pro 18 mic (gain min/gain max) is -10dBu / -60dBu.
The AiR Pro 18 line (gain min /gain max) is +10dBu / -40dBu.
The AiR Pro 18 stereo line (gain min /gain max) is +10dBu / -20dBu.
