SM Professional
AiR 6R
- Channels
- 6 Channels
- Series
- AiR Series
- Category
- Mixers
- Category
- Analog Mixers

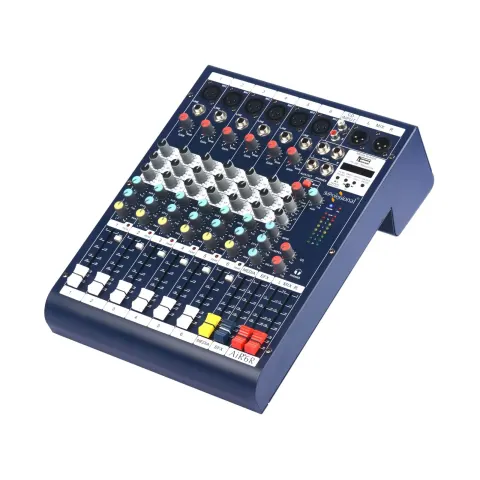

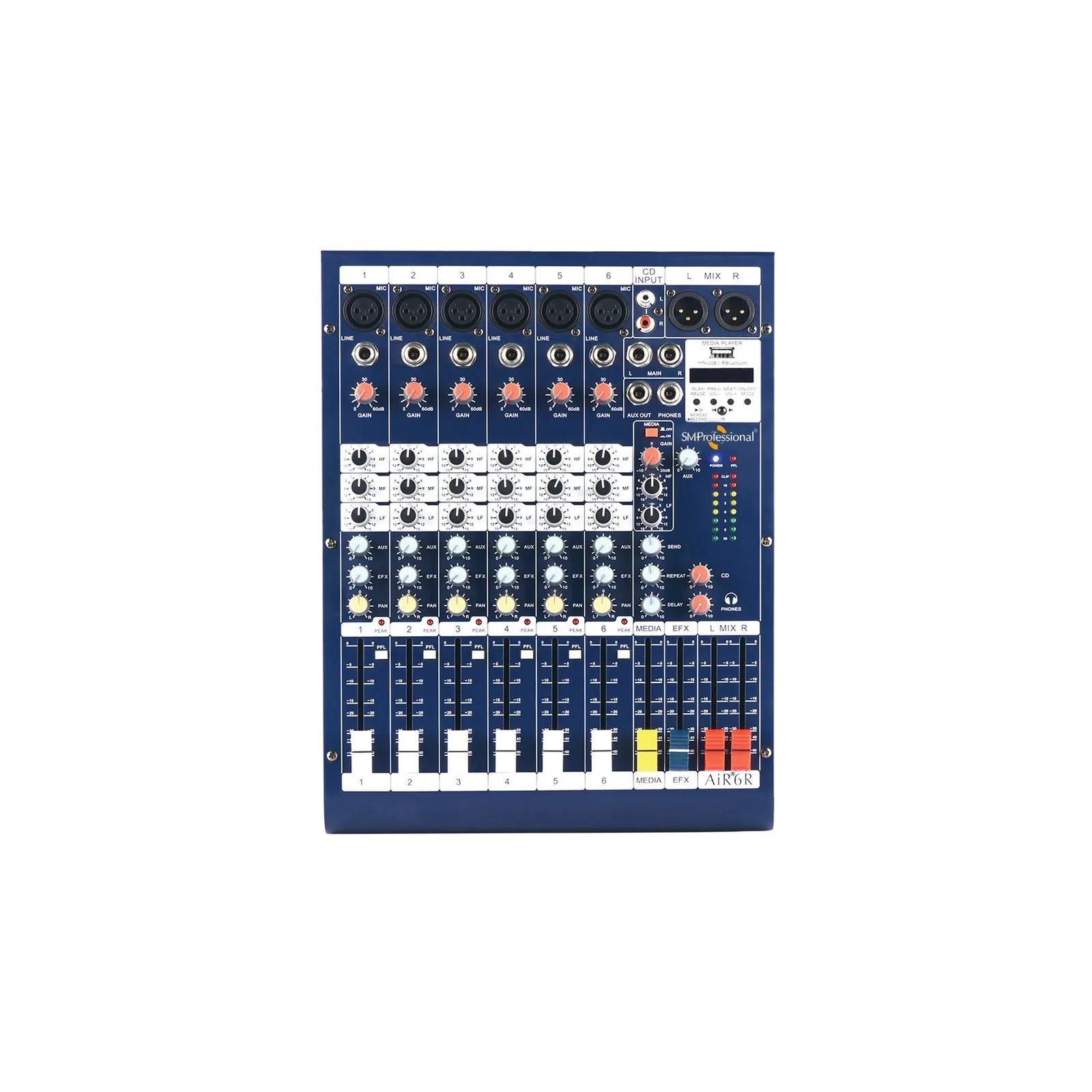

The SM Professional AiR 6R is compact 6 channel mixer with a built-in USB MP3 player & recorder, Bluetooth and delay EFX that ideal for budget-conscious users who refuse to sacrifice sound quality and reliability.
Features
- 6 balanced mic/line inputs.
- Built-in USB MP3 player and recorder and Bluetooth.
- 3-band EQ per channel.
- 1 Aux send.
- Delay EFX on board with send per channel.
- 60mm long faders.
- L/R pan pot and clip LED per channel.
- Stereo RCA CD input with control.
- 8-segment L/R LED meter for master level.
- Headphone output (¼”) with level control.
- Balanced XLR and ¼” jack master outputs.
Specifications, Q&A and videos
| Series | AiR Series |
|---|---|
| Input sensitivity | -60dBm to -40dBm |
| Nominal Input Level | MIC (-60dBm) Line (-40dBm) Effect (-10dB) AUX In (-20dB) Tape In (-10dB) |
| Nominal Output Level | Effect Send (-10dBm) AUX Send (0dBm) |
| Frequency Response | 20Hz-20kHz (± 3dB) |
| Total Harmonic Distortion | <0.03% |
| Signal to Noise Ratio | -85dB |
| Clip indication | 4dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±15dB @ 12kHz / 2.5kHz / 80Hz |
| EFX | Delay with repeat |
| Power Supply | AC 240V / 50Hz |
| Dimensions (W x D x H) mm | 252 x 334 x 107 |
| Net Weight (Kg) | 3.6 |
The AiR 6R is an SM Professional 6 channel mixer in the AiR Series. The SM Professional AiR 6R is compact 6 channel mixer with a built-in USB MP3 player & recorder, Bluetooth and delay EFX that ideal for budget-conscious users who refuse to. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 balanced mic/line inputs; Built-in USB MP3 player and recorder and Bluetooth; 3-band EQ per channel; 1 Aux send; Delay EFX on board with send per channel; 60mm long faders.
The AiR 6R input sensitivity is -60dBm to -40dBm.
The AiR 6R nominal input level is MIC (-60dBm) Line (-40dBm) Effect (-10dB) AUX In (-20dB) Tape In (-10dB).
The AiR 6R nominal output level is Effect Send (-10dBm) AUX Send (0dBm).
The AiR 6R frequency response is 20Hz-20kHz (± 3dB).
The AiR 6R total harmonic distortion is <0.03%.
