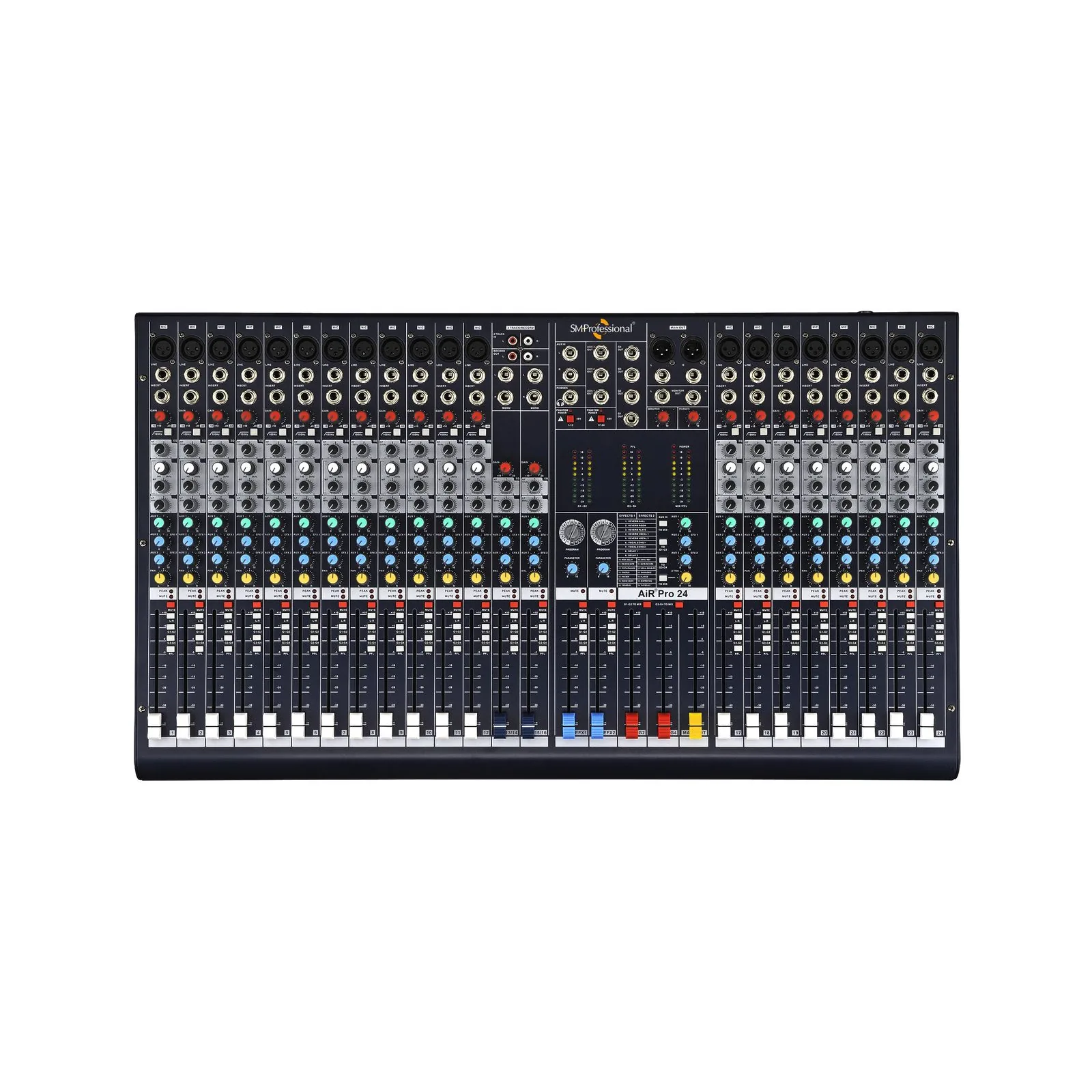

The AiR 24 is a 24 channel Mixing Console with dual multi effects processor, designed for live, front-of-house touring and installation applications.
Features
- 24 Channel Mixer (20 Mic/Line 2 Stereo Inputs).
- Built-in Dual Multi Effect Processor.
- 3-band EQ with Mid-sweep on mono inputs.
- 2-band EQ on stereo inputs.
- Insert On Mono Channel.
- 3 AUX Channels ( 1 Pre, 2 Post).
- Stereo AUX Return.
- Mix & Group Routing on each channel.
- 4 Sub Group out with individual output.
- 100mm faders.
- PFL switch on each channel.
- 100Hz Low cut switch on each channel.
- Split global phantom power (from channel 1-12 & 17-24)
- Peak & Mute LED per channel.
- 2-track RCA record output.
- Headphones & Monitor outputs with level control.
- 2-track RCA Input with level control.
- Balanced XLR & Jack Master Output
Specifications, Q&A and videos
| Series | AiR Series |
|---|---|
| Nominal Gain (Mic/Line/Stereo Line) | 60dB/40dB/20dB |
| Max Gain (Mic/Line/Stereo Line) | 80dB/60dB/40dB |
| Mic (Gain Min/Gain Max) | -10dBu / -60dBu |
| Line (Gain Min /Gain Max) | +10dBu / -40dBu |
| Stereo Line (Gain Min /Gain Max) | +10dBu / -20dBu |
| Mic Input | 1.5 KΩ Balanced |
| Line input | 20KΩ (Balanced) /10KΩ (Unbalanced) |
| Main Output & Group Output (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-1 dB) |
| Total Harmonic Distortion | < 0.02% |
| Signal to Noise Ratio | -80dB |
| Clip indication | 5dB prior to true clip |
| Mono Mic [Treble/Mid(with sweep)/Bass] | ±16dB @ 12KHz/140Hz-3KHz/80 Hz |
| Stereo Mic/Line (Treble/Bass) | ±16dB @ 12KHz/80Hz |
| EFX & USB | 2 x 16EFX (EFX1 & EFX2) |
| Phantom Supply | +48V (Separate Selection for 1-12 & 17-24 Channels) |
| Power Supply | 150V 250V AC/50Hz (External Power supply) |
| Dimensions (W x D x H)mm | 680 x 520 x 130 |
| Net Weight (Kgs.) | 12.5 |
The AiR 24 is an SM Professional 24 channel Mixer in the AiR Series. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
24 Channel Mixer (20 Mic/Line 2 Stereo Inputs); Built-in Dual Multi Effect Processor; 3-band EQ with Mid-sweep on mono inputs; 2-band EQ on stereo inputs; Insert On Mono Channel; 3 AUX Channels ( 1 Pre, 2 Post).
The AiR 24 nominal gain (mic/line/stereo line) is 60dB/40dB/20dB.
The AiR 24 max gain (mic/line/stereo line) is 80dB/60dB/40dB.
The AiR 24 mic (gain min/gain max) is -10dBu / -60dBu.
The AiR 24 line (gain min /gain max) is +10dBu / -40dBu.
The AiR 24 stereo line (gain min /gain max) is +10dBu / -20dBu.
