SM Professional

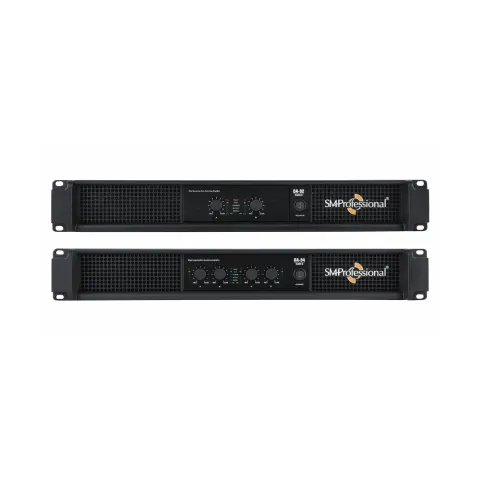

The DA series is our range of powerful and efficient professional class D digital amplifiers.
Integrating an efficient switched-mode power supply (SMPS), high resolution sampling rate and a host of advanced technologies and premium components, the sleek and lightweight amplifiers are geared for driving high wattage loudspeakers in live and touring applications.
| Highlight3 | Switched Mode Power Supply (SMPS) |
|---|---|
| 4Ω | 4 x 2600W |
| 8Ω | 4 x 1300W |
| Sampling Rate | 384kHz |
| Input Sensitivity (Rear Panel) | 1.41V / 1.96V / 2.82V (Switchable) |
| Frequency Response | 20Hz-20kHz (±0.35dB) 0.05% Typical |
| Input Impedance | 9.5KΩ Balanced | 4.75KΩ Unbalanced |
| Protections | Short Circuit, Over Voltage, Over Current, Thermal, Clip Limiter, Soft-Start |
| Input Connector (Per Channel) | Neutrik® XLR (F) |
| Link Connector (Per Channel) | Neutrik® XLR (M) |
| Output Connector (Per Channel) | Neutrik® Speakon |
| Cooling | 3 x Low-Noise High-Speed Fans |
| Indicators (Per Channel) | Signal / Clip / Loading (Powering) / Fault / AC On / Power On |
| Supply Voltage | 240V~ 50Hz |
| Dimension (W x D X H) mm | 482 x 405 x 66 (1.5U) |
| Net Weight (Kg) | 8.9 |

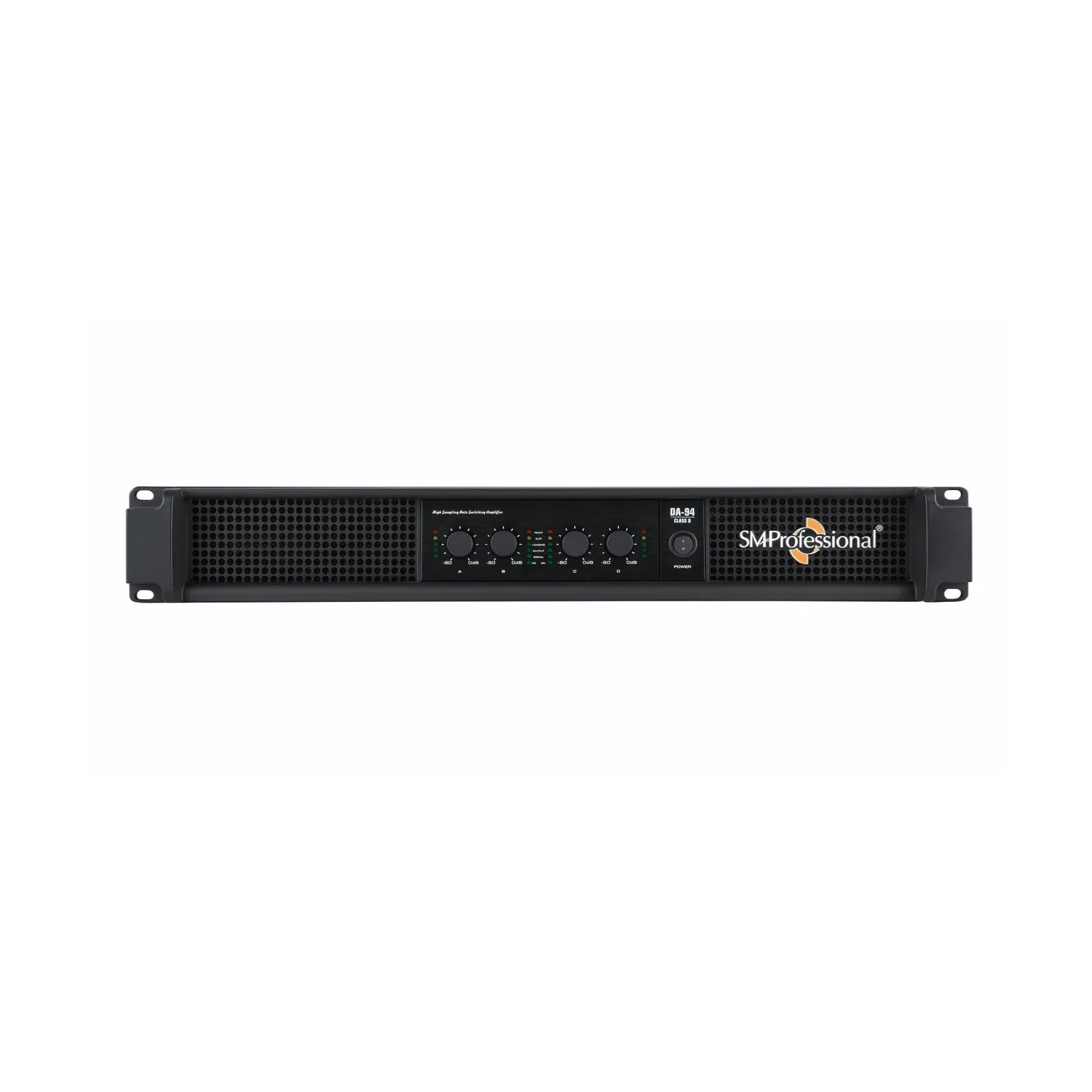

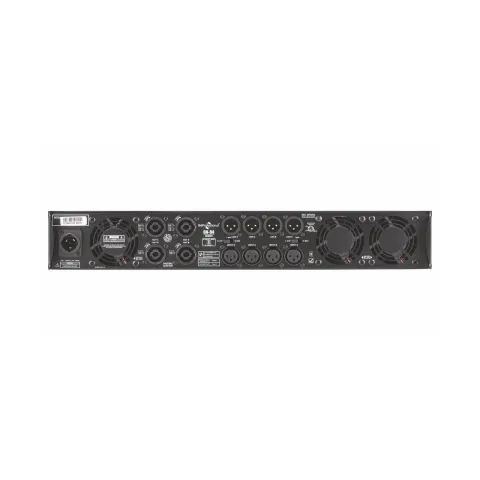

The DA 94 is an SM Professional PA product in the DA Series. The DA series is our range of powerful and efficient professional class D digital amplifiers. Available from Mansukhlal Sales Corp, an authorized dealer.
Designed for driving high wattage loudspeakers with utmost ease; Switched-mode power supply (SMPS) for high efficiency; High resolution sampling rate for high fidelity signal conversion and clear sound reproduction; Power Factor Correction (PFC) & Pulse Width Modulation (PWM) for accuracy and efficiency; Compact 19” 1.5U size and less than 9kg weight for easy transportation; Integrates high capacity inductor cores, high tolerance capacitor banks and premium PCB components.
The DA 94 highlight3 is Switched Mode Power Supply (SMPS).
The DA 94 4ω is 4 x 2600W.
The DA 94 8ω is 4 x 1300W.
The DA 94 sampling rate is 384kHz.
The DA 94 input sensitivity (rear panel) is 1.41V / 1.96V / 2.82V (Switchable).
