SM Professional
DJA 8004
- Power
- 3000 WATTS
- Channels
- 4 Channels
- Series
- DJA Series
- Category
- Power Amplifiers
- Category
- 4 Channel Power Amplifiers

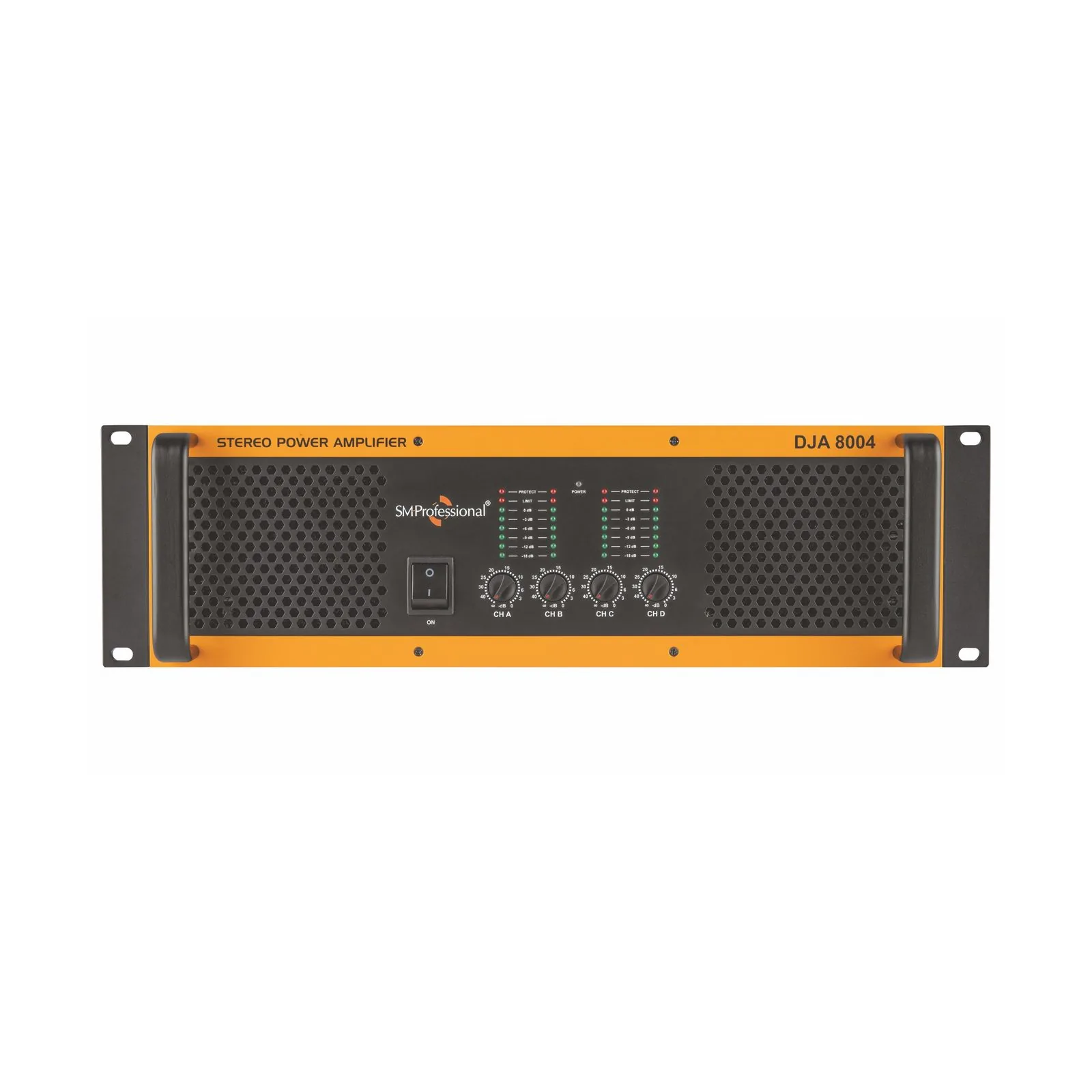

The SM Professional DJA 8004, a high performance 4 channel power amplifier.
Engineered for reliability, the amplifier delivers ample power on 4 channels to effortlessly drive multiple loudspeaker systems in live, touring, DJ and install applications.
Features
- Rugged and reliable professional 4 channel power amplifier.
- High-current toroidal transformers with high-endurance cores for superior transient response.
- Ultra-functional Low Cut and Subwoofer with crossover selection options.
- 3 switchable operational modes: stereo, parallel, and bridge.
- Intelligent cooling and heat dissipation using large low-noise variable speed fans.
- Protection: Temperature, DC and short circuit.
- LED indicators on the front panel for power, signal, clip and protect modes.
- Mains voltage operation 240V AC as well as low voltage operation at 180V AC.
- Audio-grade balanced XLR input connectors.
- High-performance Speakon output and connectors.
Specifications, Q&A and videos
| Series | DJA Series |
|---|---|
| 2 Ω (True RMS), 20Hz-20kHz, 1% THD | 4 x 1500 W |
| 4 Ω (True RMS),20Hz-20kHz,1% THD | 4 x 1400 W |
| 8 Ω (True RMS), 20Hz-20kHz, 1% THD | 4 x 1000 W |
| 4 Ω (True RMS), 20Hz-20kHz,1% THD | 2 x 3000 W |
| 8 Ω (True RMS), 20Hz-20kHz,1% THD | 2 x 2850 W |
| Damping factor (8 Ω) | >600:1 |
| Frequency Response | 20Hz-20kHz (-3dB) |
| Protection | Temperature, DC, Short Circuit |
| Input Connector (Per Channel) | XLR |
| Output Connector (Per Channel) | Speakon and Binding Post |
| Dimension (W x D X H) mm | 482 x 530 x 133 (3U) |
| Net Weight (Kg) | 36 |
The DJA 8004 is an SM Professional DJ / entertainment amplifier in the DJA Series rated 3000 WATTS. The SM Professional DJA 8004, a high performance 4 channel power amplifier. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Rugged and reliable professional 4 channel power amplifier; High-current toroidal transformers with high-endurance cores for superior transient response; Ultra-functional Low Cut and Subwoofer with crossover selection options; 3 switchable operational modes: stereo, parallel, and bridge; Intelligent cooling and heat dissipation using large low-noise variable speed fans; Protection: Temperature, DC and short circuit.
The DJA 8004 2 ω (true rms), 20hz-20khz, 1% thd is 4 x 1500 W.
The DJA 8004 4 ω (true rms),20hz-20khz,1% thd is 4 x 1400 W.
The DJA 8004 8 ω (true rms), 20hz-20khz, 1% thd is 4 x 1000 W.
The DJA 8004 4 ω (true rms), 20hz-20khz,1% thd is 2 x 3000 W.
The DJA 8004 8 ω (true rms), 20hz-20khz,1% thd is 2 x 2850 W.
