Ahuja
XDA-3004
- Power
- 1200 WATTS
- Channels
- 4 Channels
- Series
- XDA Series
- Category
- Power Amplifiers
- Category
- 4 Channel Power Amplifiers

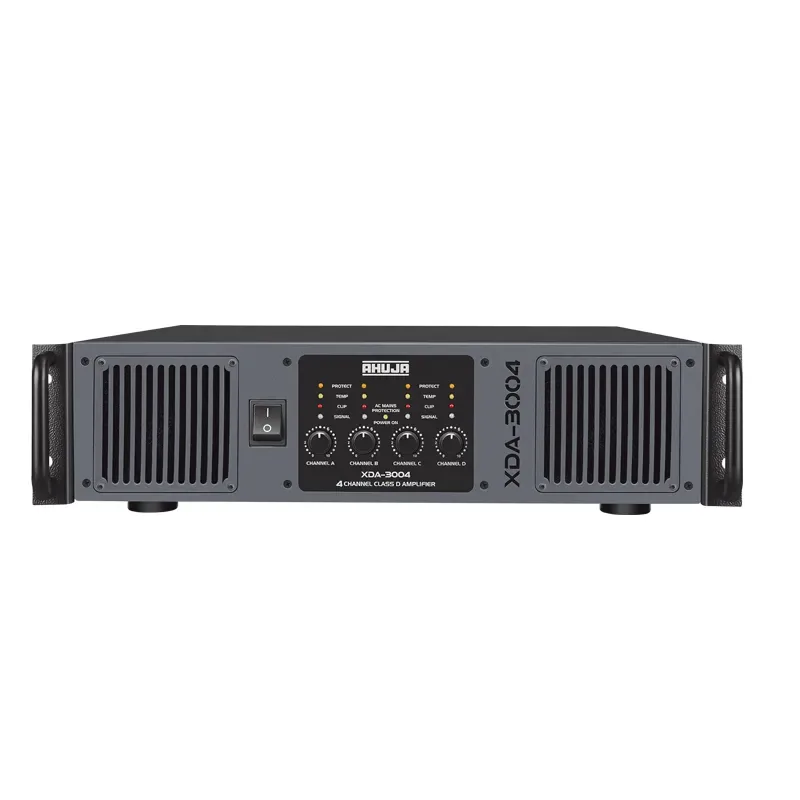

The Ahuja XDA-3004 is a 1200W Class-D PA power amplifier with a toroidal transformer power supply. Three selectable modes of operation ie.
, Individual, Dual and ALL. 1200 Watts rated output from each channel.
Features
- Four Channel Class D Power Amplifier.
- 1200 Watts rated output from each channel .
- Three selectable modes of operation ie., Individual, Dual and ALL.
- Built-in Limiter ON/OFF circuit.
- Toroidal Transformer power supply.
- Two selectable input sensitivities.
- Built-in Amplifier Protection system: DC offset, HF, Short circuit, Thermal, Overload, Overvoltage & Clip Monitoring.
- Rack mountable in 3U Size.
- BIS approved.
Specifications, Q&A and videos
| Continuous Rated Power Stereo/Mono | 8Ω : 700W + 700W + 700W + 700W RMS, 4Ω : 1200W + 1200W + 1200W + 1200W RMS |
|---|---|
| THD + N | < 0.1% |
| Frequency Response (-1dB) | 20-20,000Hz |
| Power Bandwidth (0.5% THD) | 20-20,000Hz |
| Input Sensitivity | 0dBu (775mV) & 4dBu (1.23V) (Selectable) |
| Input Impedance | 10k Unbalanced, 20k Balanced |
| Signal to Noise Ratio | > 100dB |
| Channel Separation | > 65dB at 1kHz |
| Damping Factor (8Ω) | >1000 |
| Slew Rate | 20V/µs |
| Protections | Temperature, DC, RFI, Short Circuit, Overload, Overvoltage, Built-in Limiter (ON/OFF) AC: Circuit Protector 20A; ± DC: Fuse 2×12A (T 12A L) for each channel |
| Input Connectors | 4×XLR, Stereo Phone Jack 6.3mm |
| Output Connectors | Speakon 4-Way for each channel |
| Cooling | 4 × Variable Speed DC Fan with Temperature Sensing |
| Front Panel Controls | 4×41 Step Level Attenuators |
| Indicators | Power ON/AC Mains Protection, Signal, Clip, Temperature, Protect (Ch. A, B, C & D) |
| Power Consumption (Rated) | 5620W; 6460va @ 220-240V ~ 50/60Hz |
| Dimensions | W482 × H126 × D540mm |
| Weight | 28.50kg |
The XDA-3004 is an Ahuja Class-D PA power amplifier in the XDA Series. The Ahuja XDA-3004 is a 1200W Class-D PA power amplifier with a toroidal transformer power supply. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Four Channel Class D Power Amplifier; 1200 Watts rated output from each channel; Three selectable modes of operation ie., Individual, Dual and ALL; Built-in Limiter ON/OFF circuit; Toroidal Transformer power supply; Two selectable input sensitivities.
The XDA-3004 continuous rated power stereo/mono is 8Ω : 700W + 700W + 700W + 700W RMS, 4Ω : 1200W + 1200W + 1200W + 1200W RMS.
The XDA-3004 thd + n is < 0.1%.
The XDA-3004 frequency response (-1db) is 20-20,000Hz.
The XDA-3004 power bandwidth (0.5% thd) is 20-20,000Hz.
The XDA-3004 input sensitivity is 0dBu (775mV) & 4dBu (1.23V) (Selectable).
