SM Professional
D.Mix 20
- Category
- Mixers
- Category
- Digital Mixers

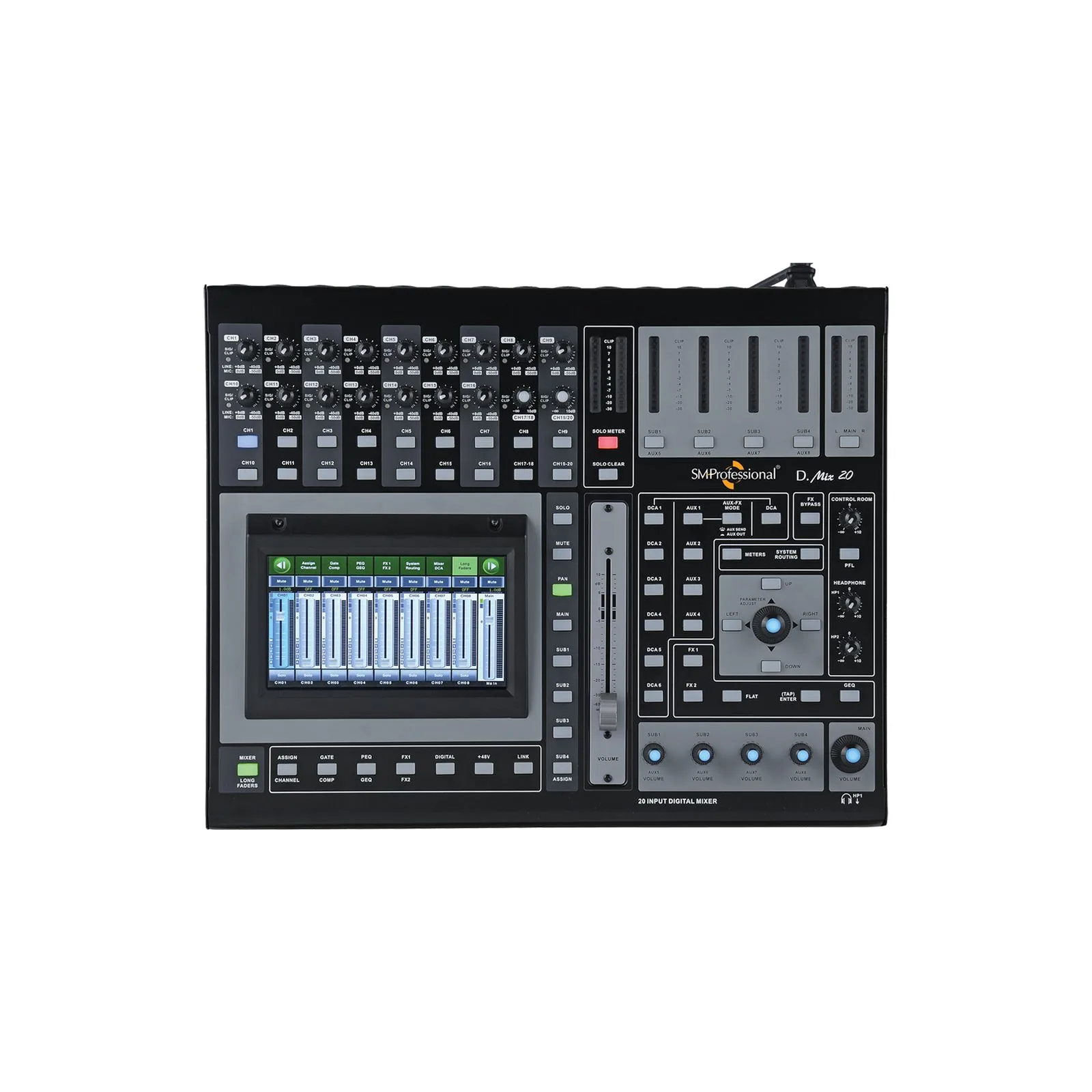

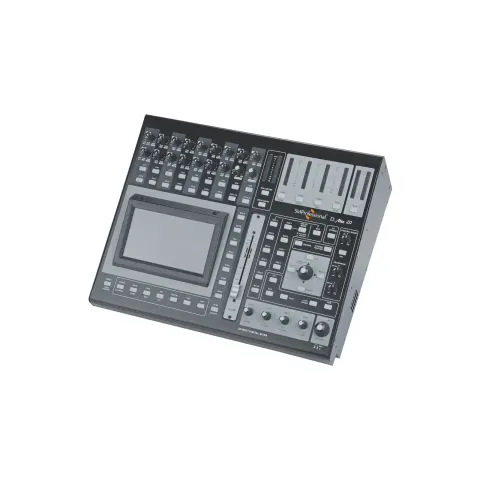

The SM Professional D.
Mix 20 combines the best of what an LCD touch screen can offer a digital mixer and a familiar & intuitive interface for functions where speed and precision are required – and for those live instances where nothing beats reaching for a real fader or a knob.
Features
- 16 mono Input channels with assignable controls.
- 8 Channels Inserts.
- 2 Stereo input channels.
- 1 USB audio channels.
- Full duplex USB port (allows for simultaneous recording & reproduction) for reproduction of digital audio data from a PC & recording mixing onto a PC..
- 2 integrated DSP’s with EQ, Noise Gate, Compressor / Limiter & Delay.
- 4 Aux Send outs & 4 Subgroup outs or 8 Aux outputs.
- 6 DCA groups.
- 100mm motor-driven fader.
- 24 bits/48kHz sampling rate.
- User definable presets.
- +48V Phantom power.
- LCD touch screen for settings, routing and navigation.
- XLR & Jack Main outputs & Stereo Control Room output.
Specifications, Q&A and videos
| Series | D.Mix Series |
|---|---|
| Gain (Mic/Line/Stereo Line) | 50dB / 50 dB |
| Max Gain (Mic/Line) | 70dB / 70 dB |
| Mic (Gain Min/Gain Max) | 0 dBu / -50 dBu |
| Line (Gain Min /Gain Max) | +8 dBu / -40 dBu |
| Mic Input | 5K Balanced |
| Line input | 19K Unbalanced |
| Main Output level (Nominal / Max) | 0 dBu (0.775 V RMS) / +20 dBu (8V RMS) |
| Main Output Impedance | 120 Ω |
| Frequency Response | 20Hz to 20KHz (+0dB ± 1.5dB) |
| Total Harmonic Distortion | <0.05% |
| Signal to Noise Ratio | 85dB |
| Mono Mic (Treble/Mid with Sweep/Bass) | ±24dB (21 Hz - 19.2 KHZ) |
| Stereo Line (Treble/Mid-Hi/Mid-low/Bass) | ±24dB (21 Hz - 19.2 KHZ) |
| EFX | 32 – Bit EFX Processor |
| Phantom Supply | +48V |
| Dimensions (W x D x H)mm | 445 x 355 x 140 |
| Net Weight (Kgs.) | 7.25 |
The D.Mix 20 is an SM Professional Mixer. The SM Professional D. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
16 mono Input channels with assignable controls; 8 Channels Inserts; 2 Stereo input channels; 1 USB audio channels; Full duplex USB port (allows for simultaneous recording & reproduction) for reproduction of digital audio data from a PC & recording mixing onto a PC; 2 integrated DSP’s with EQ, Noise Gate, Compressor / Limiter & Delay.
The D.Mix 20 series is D.Mix Series.
The D.Mix 20 gain (mic/line/stereo line) is 50dB / 50 dB.
The D.Mix 20 max gain (mic/line) is 70dB / 70 dB.
The D.Mix 20 mic (gain min/gain max) is 0 dBu / -50 dBu.
The D.Mix 20 line (gain min /gain max) is +8 dBu / -40 dBu.
