SM Professional
AiR 12
- Series
- AiR Series
- Category
- Mixers
- Category
- Analog Mixers
The SM Professional AiR Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability.
Features
- 12 Mic / Line
- 3 Band EQ per channel.
- 1 Aux send.
- PFL (Cue) Switch with individual channel control
- L/R pan pot and clip LED per channel.
- Stereo RCA CD input with Control.
- Delay EFX on board & FX send per channel.
- 8 Segments L/R LED meter for master level.
- Headphone output with level control.
- Balanced XLR & ¼” Jack Master Output.
Specifications, Q&A and videos
| Series | AiR Series |
|---|---|
| Gain (Mic/Line) | 60dB/40dB |
| Mic (Gain Min/Gain Max) | -5dBu / -60dBu |
| Line (Gain Min /Gain Max) | +6dBu / -40dBu |
| Main Output level (Nominal / Max) | +0dBu (0.775V RMS) / +20dBu (7.75V RMS) |
| Frequency Response | 20Hz to 20KHz (+0/-3 dB) |
| Total Harmonic Distortion | < 0.03% |
| Signal to Noise Ratio | -85dB |
| Clip indication | 4 dB prior to true clip |
| Equalisation (Treble/Mid/Bass) | ±15dB @ 12KHz/2.5KHz/80Hz |
| EFX | Delay with repeat |
| Power Supply | AC 240 V/50Hz |
| Dimensions (W x D x H in mm) | 410 x 335 x 115 |
| Net Weight (Kgs.) | 4.8 |

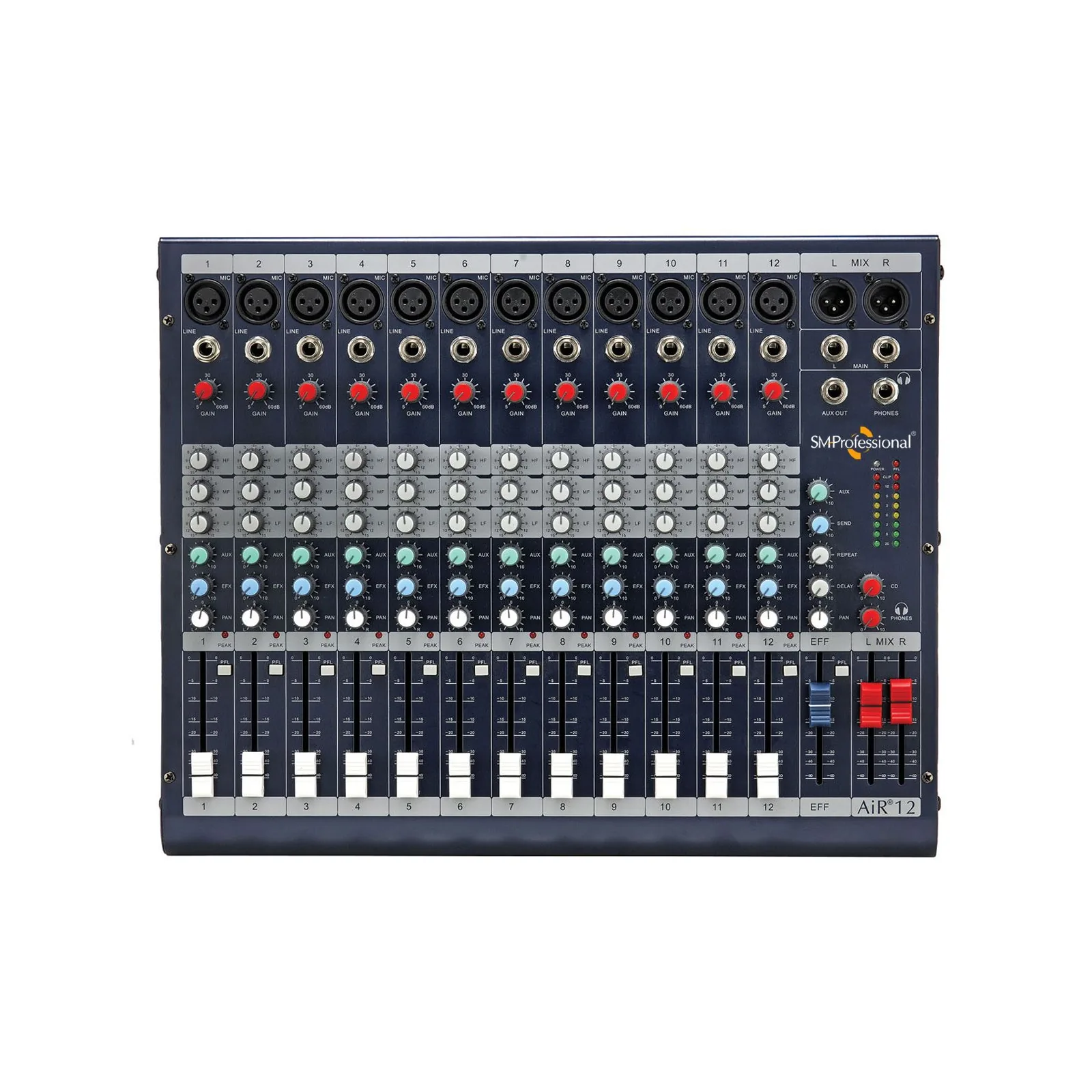

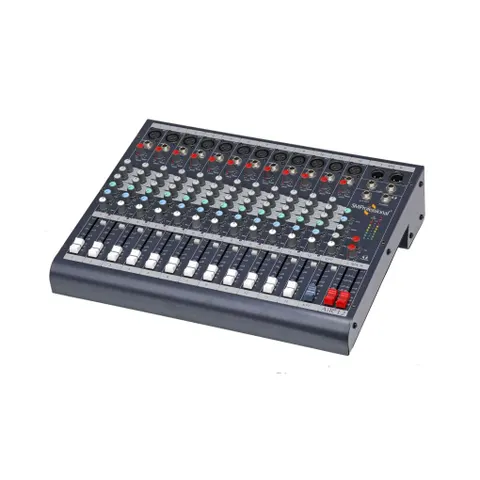

The AiR 12 is an SM Professional Robust analog mixing consoles for budget-conscious professional in the AiR Series. The SM Professional AiR Series mixers are the answer for budget-conscious users who refuse to sacrifice sound quality and reliability. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
12 Mic / Line; 3 Band EQ per channel; 1 Aux send; PFL (Cue) Switch with individual channel control; L/R pan pot and clip LED per channel; Stereo RCA CD input with Control.
The AiR 12 gain (mic/line) is 60dB/40dB.
The AiR 12 mic (gain min/gain max) is -5dBu / -60dBu.
The AiR 12 line (gain min /gain max) is +6dBu / -40dBu.
The AiR 12 main output level (nominal / max) is +0dBu (0.775V RMS) / +20dBu (7.75V RMS).
The AiR 12 frequency response is 20Hz to 20KHz (+0/-3 dB).
