SM Professional
ADI 24.12
- Channels
- 24 Channels
- Series
- ADi Series
- Category
- Mixers
- Category
- Digital Mixers

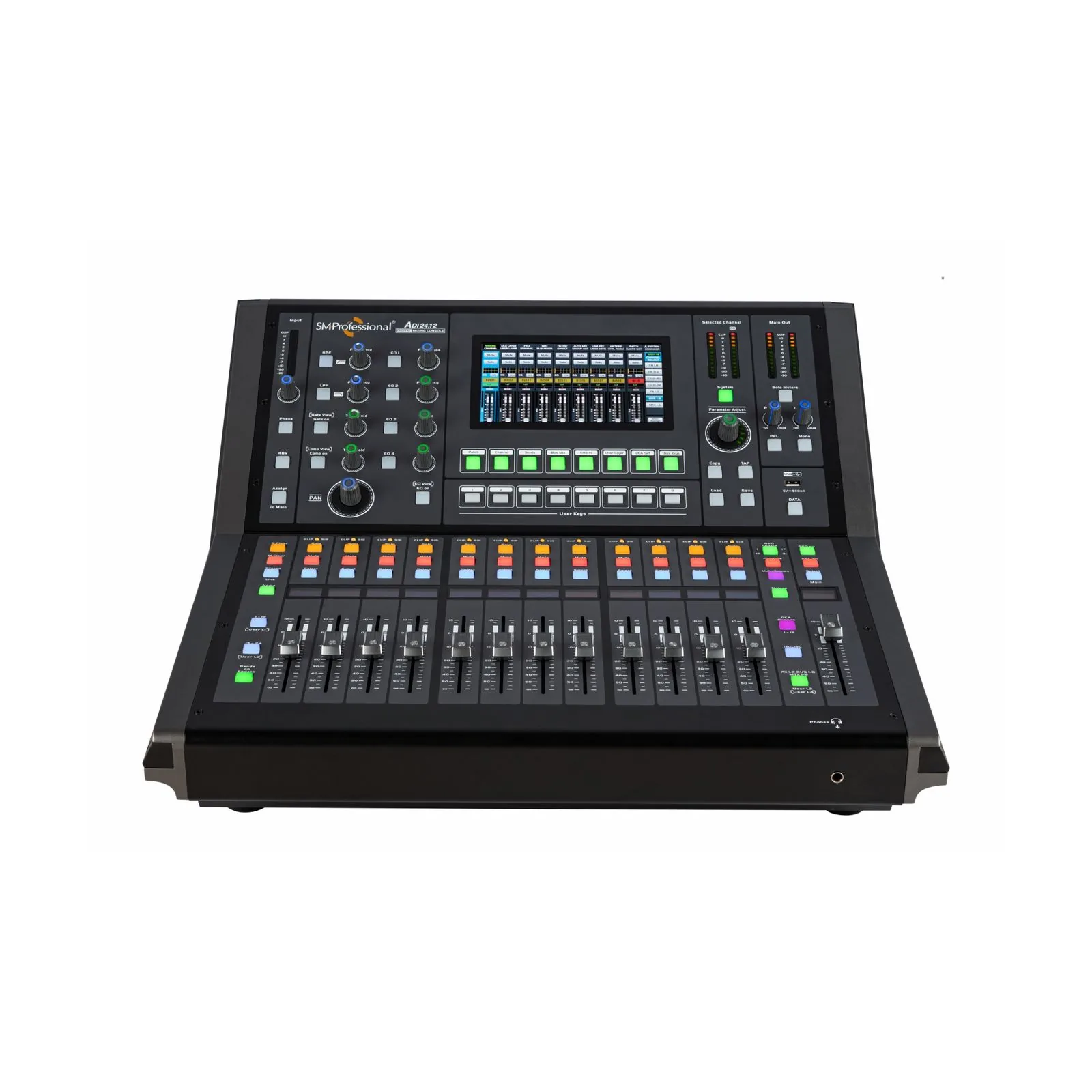

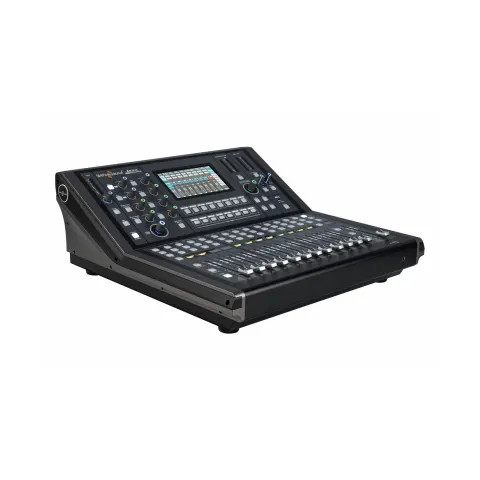

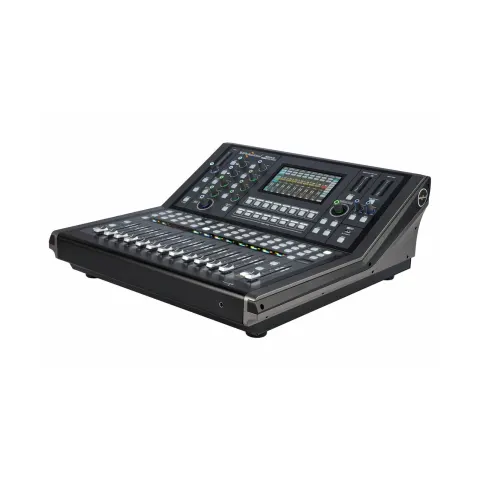

The SM Professional ADI 24.12, is a premium 24 Channel Digital Mixing Console.
Featuring multiple inputs and outputs, 7” LCD touchscreen display, 13 motorised faders, 12 smart DCAs, abundant DSP EFX processing tools and more, the ADI 24.12 is engineered to deliver a complete integrated solution to empower speed and precision in real-world live mixing use cases.
Features

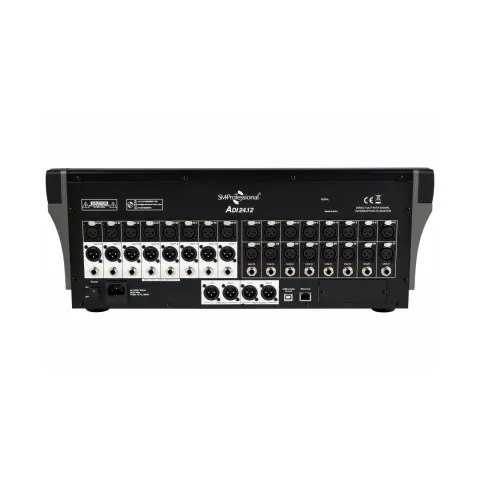

- 24 XLR and 8 Line analog inputs with digital gain control.
- 12 flexible outputs: 8 x assignable mix bus (XLR & 1⁄4” line), 2 main L/R (XLR) and control room L/R (XLR).
- Premium 13 x 100mm motorised faders for agile control.
- Responsive 7” high-resolution colour LCD touchscreen for end-to-end navigation and control.
- 13 individual OLED displays for channel data.
- Integrated 32-bit dual DSP EFX with EQ, noise gate, compressor/limiter, delay and more.
- Digital 4-band full PEQ with multiple filters (inputs & outputs) and 31-band GEQ (outputs).
- High-resolution 24-bit/48kHz sampling rate.
- Full duplex USB audio interface for simultaneous recording and playback from a PC.
- Individually assignable +48V Phantom power.
- Advanced features including Auto mix, RTA analyzer, feedback control, talkback, signal generator, matrix routing and much more.
- Multiple colour LED metering and self-illuminated switches for effortless visual mixing cues.
- User definable presets with multiple storing and recall options.
- Password protection to lock and unlock settings.
- Dante add-on for network AV integration (available separately)
Specifications, Q&A and videos
| Gain (Mic / Line / Stereo Mic / Stereo Line) | 50dB / 50dB |
|---|---|
| Max Gain (Mic / Line / Stereo Line) | 50dB / 50dB |
| Mic (Gain Min / Gain Max) | 0dBu / -50dBu |
| Line (Gain Min / Gain Max) | -20dBu / +30dBu |
| Mic Input | 6.8KΩ |
| Line input | 75KΩ |
| Main Output level (Nominal / Max) | +20dBu ±0.5dBu |
| Main Output Impedance | 120 Ω |
| Frequency Response | 22Hz-20kHz at 0dBu ±2dBu |
| Total Harmonic Distortion | <0.03% at 0dBu 1kHz |
| Signal to Noise Ratio | -90dBu |
| Mono Mic | ±15dBu(±2dBu), 20Hz-20KHz |
| Stereo Line | ±15dBu(±2dBu), 20Hz-20KHz |
| EFX | 32-bit / 24.bit |
| Phantom Supply | +48V |
| Dimensions (W x D x H) mm | 532.2 x 537.5 x 220 |
| Net Weight (Kg) | 13.25 |
The ADI 24.12 is an SM Professional Premium digital mixing consoles for live, touring, install, and studio in the ADi Series. The SM Professional ADI 24.12, is a premium 24 Channel Digital Mixing Console. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
24 XLR and 8 Line analog inputs with digital gain control; 12 flexible outputs: 8 x assignable mix bus (XLR & 1⁄4” line), 2 main L/R (XLR) and control room L/R (XLR); Premium 13 x 100mm motorised faders for agile control; Responsive 7” high-resolution colour LCD touchscreen for end-to-end navigation and control; 13 individual OLED displays for channel data; Integrated 32-bit dual DSP EFX with EQ, noise gate, compressor/limiter, delay and more.
The ADI 24.12 gain (mic / line / stereo mic / stereo line) is 50dB / 50dB.
The ADI 24.12 max gain (mic / line / stereo line) is 50dB / 50dB.
The ADI 24.12 mic (gain min / gain max) is 0dBu / -50dBu.
The ADI 24.12 line (gain min / gain max) is -20dBu / +30dBu.
The ADI 24.12 mic input is 6.8KΩ.
