SM Professional
ADI 16.6
- Channels
- 16 Channels
- Series
- ADi Series
- Category
- Mixers
- Category
- Digital Mixers

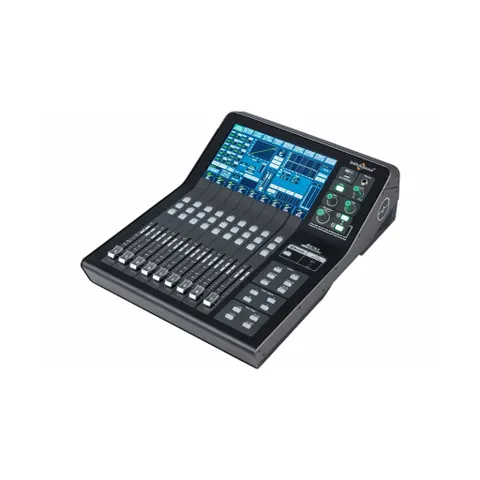

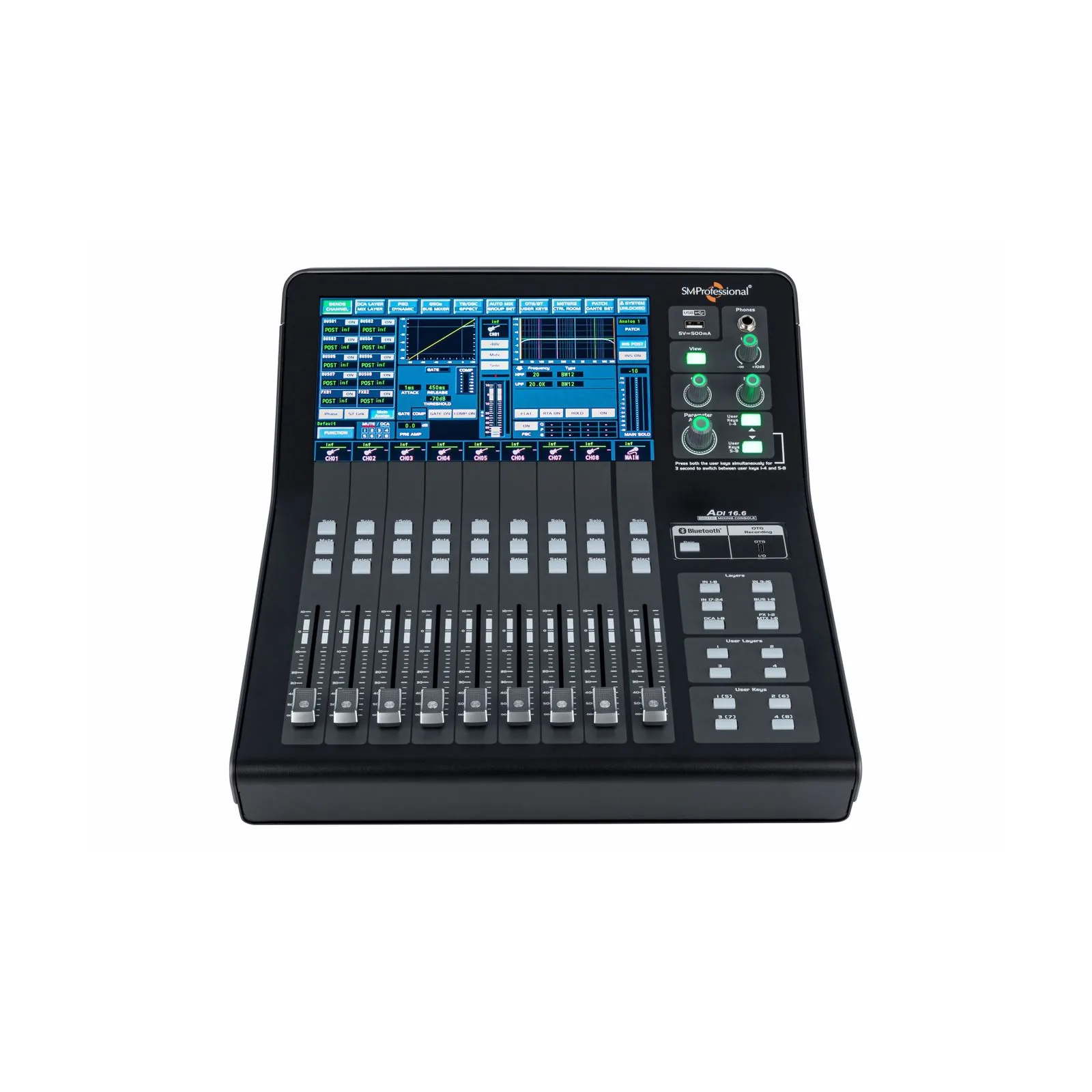

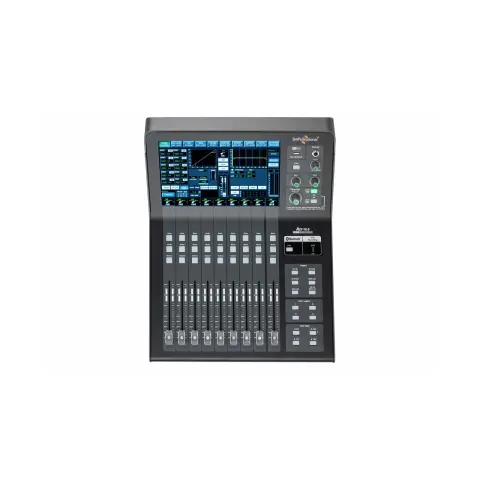

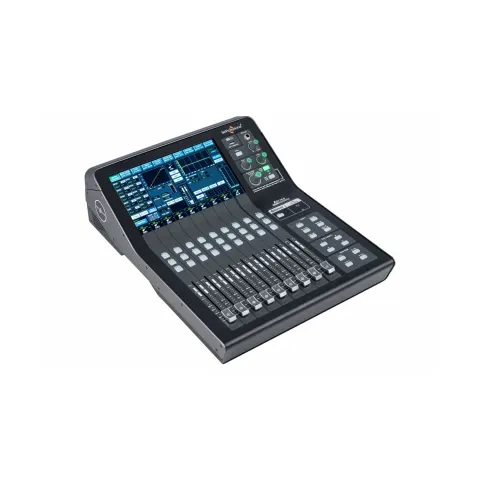

The SM Professional ADI 16.6 is a premium 16 Channel Digital Mixing Console.
Featuring multiple inputs and outputs, 10” LCD touchscreen display, 9 motorised faders, smart DCAs, abundant DSP EFX processing tools and more, the ADI 16.6 is engineered to deliver a complete integrated solution to empower speed and precision in real-world live mixing use cases.
Features
- 16 XLR and 4 Line analog inputs with digital gain control.

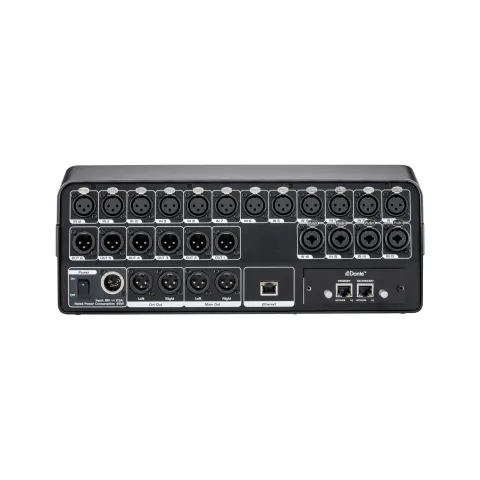

- Flexible outputs: 6 x assignable mix bus (XLR), 2 main L/R (XLR) and control room L/R (XLR).
- Premium 9 x 100mm motorised faders for agile control.
- Responsive 10” high-resolution colour LCD touchscreen for end-to-end navigation and control.
- Integrated dual DSP EFX with EQ, noise gate, compressor/limiter, delay and more.
- Digital 4-band full PEQ with multiple filters (inputs & outputs) and 31-band GEQ (outputs).
- High-resolution 24-bit/48kHz sampling rate.
- Bluetooth for wireless audio playback with assignable master and bus routing.
- Full duplex USB audio interface for simultaneous recording and playback from a PC, Smartphone or Tablet.
- Individually assignable +48V Phantom power.
- Ethernet port to connect and empower remote app-based mixing.
- Advanced features including Auto mix, RTA analyzer, feedback control, talkback, matrix routing and much more.
- Multiple colour LED metering and illuminated switches for effortless visual mixing cues.
- User definable presets with multiple storing and recall options.
- Password protection to lock and unlock settings.
- Dante add-on for network AV integration (available separately).
Specifications, Q&A and videos
| Gain (Mic / Line / Stereo Mic / Stereo Line) | 50dB / 50dB |
|---|---|
| Max Gain (Mic / Line / Stereo Line) | 50dB / 50dB |
| Mic (Gain Min / Gain Max) | 0dBu / -50dBu |
| Line (Gain Min / Gain Max) | -20dBu / +30dBu |
| Mic Input | 6.8KΩ |
| Line input | 75KΩ |
| Main Output level (Nominal / Max) | +20dBu ±0.5dBu |
| Main Output Impedance | 120 Ω |
| Frequency Response | 22Hz-20kHz at 0dBu +1/-2.5dB |
| Total Harmonic Distortion | <0.03% at 0dBu 1kHz |
| Signal to Noise Ratio | 107dB |
| Colour Display / Main LCD | 10.1-inch (1024px x 600px) |
| Phantom Power Supply | +48V |
| Power Supply / Mains Voltage | 240VAC, 50Hz |
| Operating Free-Air Temperature Range | 0°C to 40°C |
| Storage Temperature Range | -20°C to 45°C |
| Dimensions (W x D x H)mm | 349 x 452 x 147 |
| Net Weight (Kgs.) | 6.7 |
The ADI 16.6 is an SM Professional 16 Channel Digital Mixer in the ADi Series. The SM Professional ADI 16.6 is a premium 16 Channel Digital Mixing Console. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
16 XLR and 4 Line analog inputs with digital gain control; Flexible outputs: 6 x assignable mix bus (XLR), 2 main L/R (XLR) and control room L/R (XLR); Premium 9 x 100mm motorised faders for agile control; Responsive 10” high-resolution colour LCD touchscreen for end-to-end navigation and control; Integrated dual DSP EFX with EQ, noise gate, compressor/limiter, delay and more; Digital 4-band full PEQ with multiple filters (inputs & outputs) and 31-band GEQ (outputs).
The ADI 16.6 gain (mic / line / stereo mic / stereo line) is 50dB / 50dB.
The ADI 16.6 max gain (mic / line / stereo line) is 50dB / 50dB.
The ADI 16.6 mic (gain min / gain max) is 0dBu / -50dBu.
The ADI 16.6 line (gain min / gain max) is -20dBu / +30dBu.
The ADI 16.6 mic input is 6.8KΩ.
