Ahuja

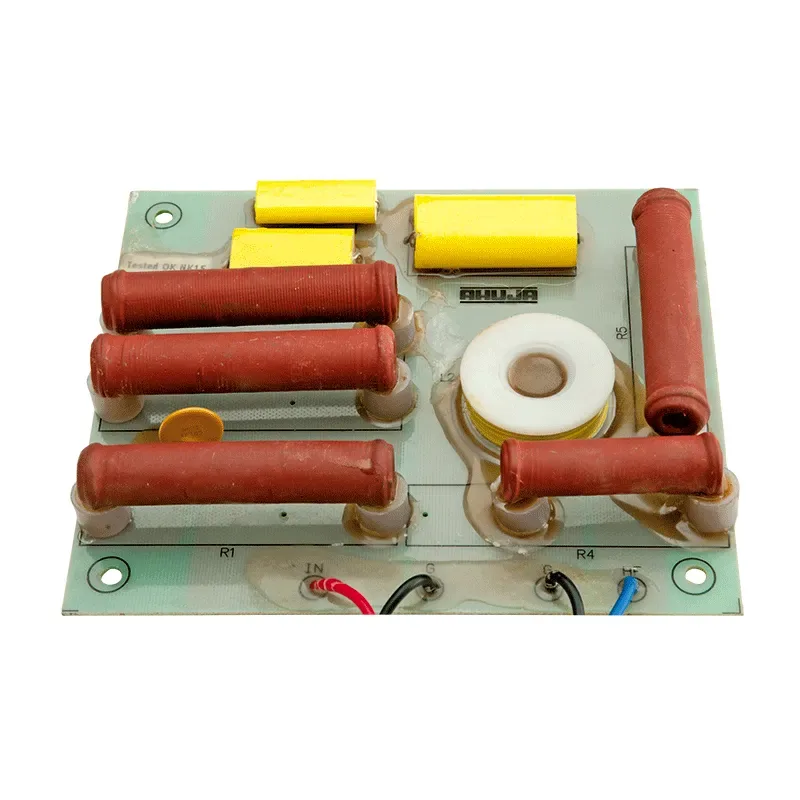

The Ahuja C-80HF is a 500W crossover network.
High quality metallised polyester capacitors.
| Type | HF Crossover |
|---|---|
| Power Capacity | 500W |
| Crossover Frequency | 2.5kHz |
| Nominal Impedance | 8Ω |
| High Pass Filter Slope | 18dB/Octave with Protection |
| Dimensions | W161 × H32 × D140mm |
| Weight | 0.35kg |
The C-80HF is an Ahuja crossover network in the Crossover Networks rated 500 WATTS. Available from Mansukhlal Sales Corp, an authorized dealer.
Designed for use with 2-Way Speaker System using 1 no. comprision driver AHUJA model CD-80; High power and Low resistance coils.
The C-80HF type is HF Crossover.
The C-80HF power capacity is 500W.
The C-80HF crossover frequency is 2.5kHz.
The C-80HF nominal impedance is 8Ω.
The C-80HF high pass filter slope is 18dB/Octave with Protection.
