Ahuja
C-300/200
- Power
- 300 WATTS
- Series
- Crossover Networks
- Category
- Processors
- Category
- Crossover Networks

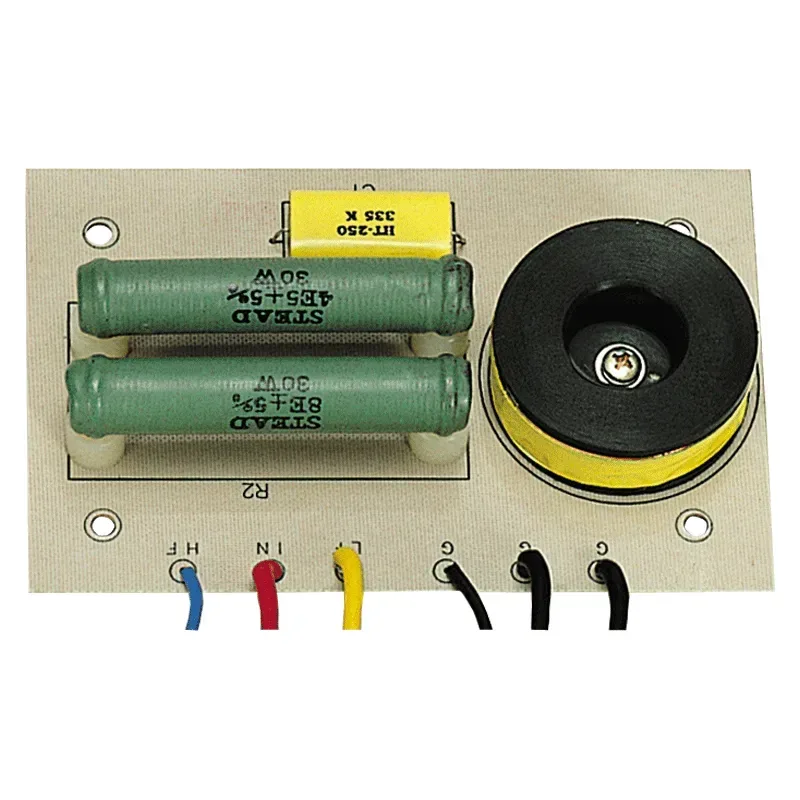

The Ahuja C-300/200 is a 300W crossover network. High power and Low resistance Air core coils.
High quality metallised polyester capacitors.
Features
- Professional Two Way Passive Crossover Network.
- Designed for use with 1 no. LF woofer AHUJA model L15-MB300 or L12-MB200.
- HF driver CDH-200.
- High power and Low resistance Air core coils.
- High quality metallised polyester capacitors.
Specifications, Q&A and videos
| Type | Two-way crossover |
|---|---|
| Power Capacity | 300W |
| Crossover Frequency | 4kHz |
| Nominal Impedance | 8Ω |
| High Pass Filter Slope | 12dB/Octave |
| Dimensions | W146 x H32 x D95 mm |
| Weight | 0.39kg |
The C-300/200 is an Ahuja crossover network in the Crossover Networks rated 300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional Two Way Passive Crossover Network; Designed for use with 1 no. LF woofer AHUJA model L15-MB300 or L12-MB200; HF driver CDH-200; High power and Low resistance Air core coils; High quality metallised polyester capacitors.
The C-300/200 type is Two-way crossover.
The C-300/200 power capacity is 300W.
The C-300/200 crossover frequency is 4kHz.
The C-300/200 nominal impedance is 8Ω.
The C-300/200 high pass filter slope is 12dB/Octave.
