Ahuja
C-100HF
- Power
- 1300 WATTS
- Series
- Crossover Networks
- Category
- Processors
- Category
- Crossover Networks

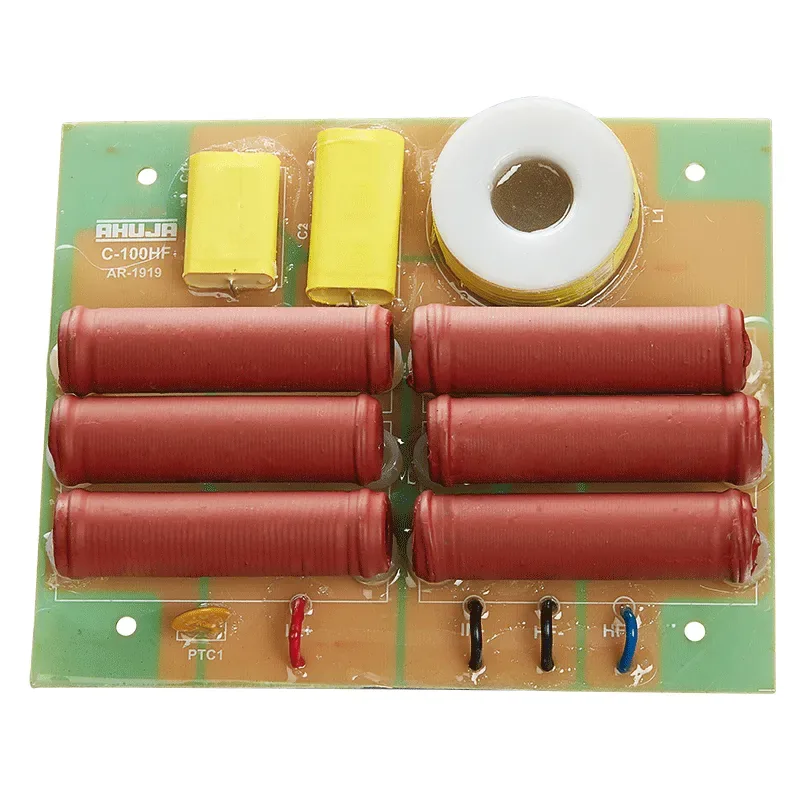

The Ahuja C-100HF is a 1300W crossover network.
High quality metallised polyester capacitors.
Features
- Professional 1-Way Passive HF Crossover Network for HF Driver.
- Designed for use with 2-Way Speaker System using 1 no. compression driver AHUJA model CDH-1000.
- High power and Low resistance coils.
- High quality metallised polyester capacitors.
Specifications, Q&A and videos
| Type | HF Crossover |
|---|---|
| Power Capacity | 1300W |
| Crossover Frequency | 1.2kHz |
| Nominal Impedance | 8Ω |
| High Pass Filter Slope | 18dB/Octave with protection |
| Dimensions | W183 × H43 × D150 mm |
| Weight | 622g |
The C-100HF is an Ahuja crossover network in the Crossover Networks rated 1300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 1-Way Passive HF Crossover Network for HF Driver; Designed for use with 2-Way Speaker System using 1 no. compression driver AHUJA model CDH-1000; High power and Low resistance coils; High quality metallised polyester capacitors.
The C-100HF type is HF Crossover.
The C-100HF power capacity is 1300W.
The C-100HF crossover frequency is 1.2kHz.
The C-100HF nominal impedance is 8Ω.
The C-100HF high pass filter slope is 18dB/Octave with protection.
