Ahuja
C-1300/750
- Power
- 1300 WATTS
- Series
- Crossover Networks
- Category
- Processors
- Category
- Crossover Networks

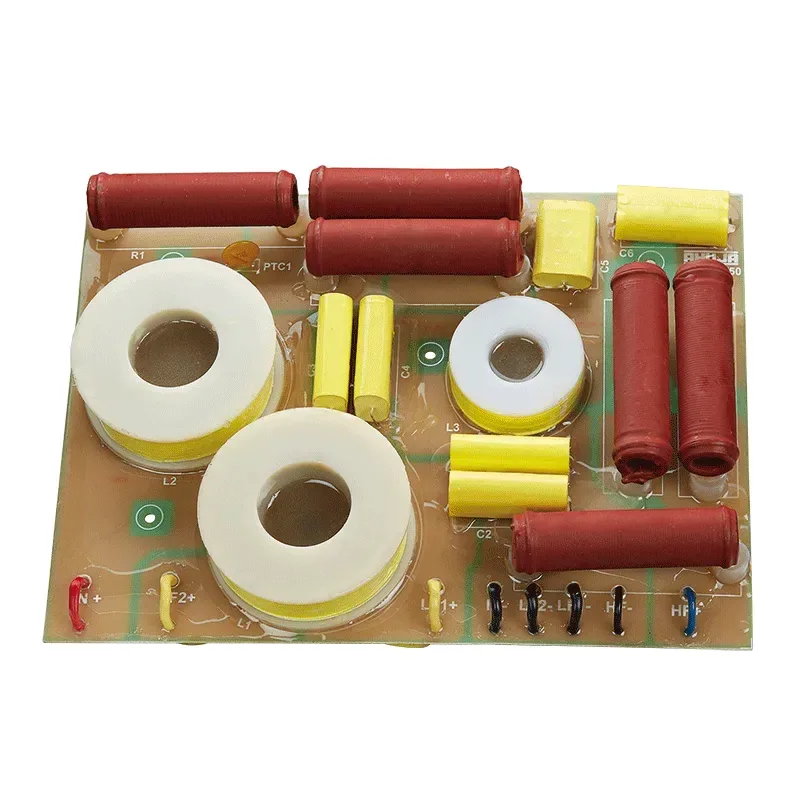

The Ahuja C-1300/750 is a 1300W crossover network. High power and Low resistance Air core coils.
High quality metallised polyester capacitors.
Features
- Professional 2-Way Passive Crossover Network.
- Designed for use with 2 nos. LF woofer AHUJA Model L15-MB500 or L12-MB650.
- HF driver CDH-1000.
- PTC for HF protection.
- High power and Low resistance Air core coils.
- High quality metallised polyester capacitors.
Specifications, Q&A and videos
| Type | 2-Way Crossover |
|---|---|
| Power Capacity | 1300W |
| Crossover Frequency | 1.2kHz |
| Nominal Impedance | 4Ω |
| Low Pass Filter Slope | 12dB/Octave |
| High Pass Filter Slope | 18dB/Octave with Protection |
| Dimensions | W260 x H43 x D192 |
| Weight | 1.72kg |
The C-1300/750 is an Ahuja crossover network in the Crossover Networks rated 1300 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 2-Way Passive Crossover Network; Designed for use with 2 nos. LF woofer AHUJA Model L15-MB500 or L12-MB650; HF driver CDH-1000; PTC for HF protection; High power and Low resistance Air core coils; High quality metallised polyester capacitors.
The C-1300/750 type is 2-Way Crossover.
The C-1300/750 power capacity is 1300W.
The C-1300/750 crossover frequency is 1.2kHz.
The C-1300/750 nominal impedance is 4Ω.
The C-1300/750 low pass filter slope is 12dB/Octave.
