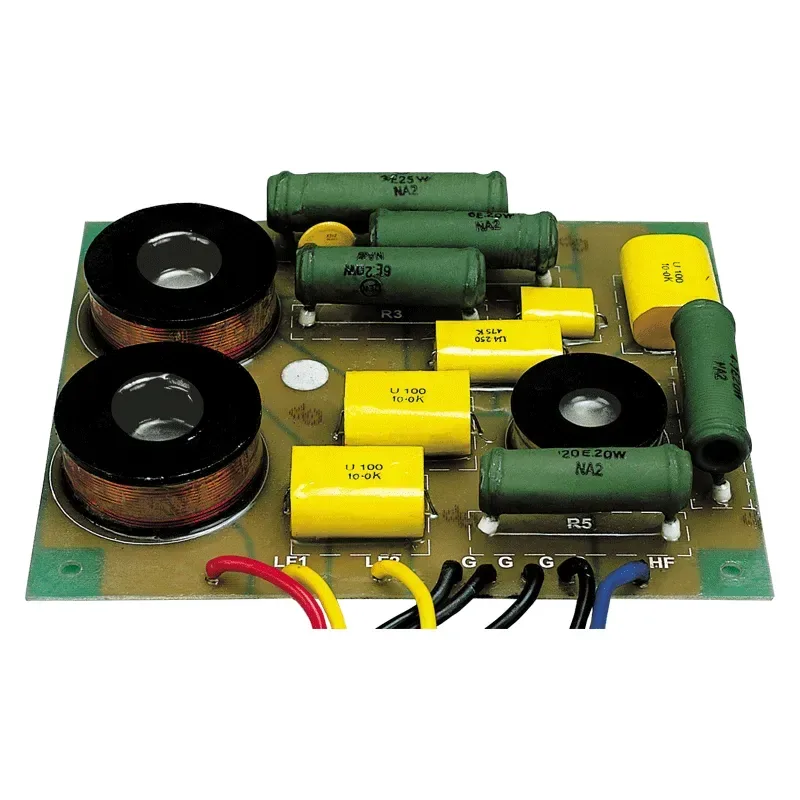

The Ahuja C-600/450 is a 600W crossover network. High power and Low resistance Air core coils.
High quality metallised polyester capacitors.
Features
- Professional 2-Way Passive Crossover Network.
- Designed for use with 2 nos. LF woofer AHUJA Model L15-MB300.
- HF driver CDH-800.
- PTC for HF protection.
- High power and Low resistance Air core coils.
- High quality metallised polyester capacitors.
Specifications, Q&A and videos
| Type | Two-way crossover |
|---|---|
| Power Capacity | 600W |
| Crossover Frequency | 2.5kHz |
| Nominal Impedance | 4Ω |
| Low Pass Filter Slope | 12dB/Octave |
| High Pass Filter Slope | 18dB/Octave with protection |
| Dimensions | W180 x H32 x D150 mm |
| Weight | 0.9kg |
The C-600/450 is an Ahuja crossover network in the Crossover Networks rated 600 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 2-Way Passive Crossover Network; Designed for use with 2 nos. LF woofer AHUJA Model L15-MB300; HF driver CDH-800; PTC for HF protection; High power and Low resistance Air core coils; High quality metallised polyester capacitors.
The C-600/450 type is Two-way crossover.
The C-600/450 power capacity is 600W.
The C-600/450 crossover frequency is 2.5kHz.
The C-600/450 nominal impedance is 4Ω.
The C-600/450 low pass filter slope is 12dB/Octave.
