Ahuja
C-500/750
- Power
- 500 WATTS
- Series
- Crossover Networks
- Category
- Processors
- Category
- Crossover Networks

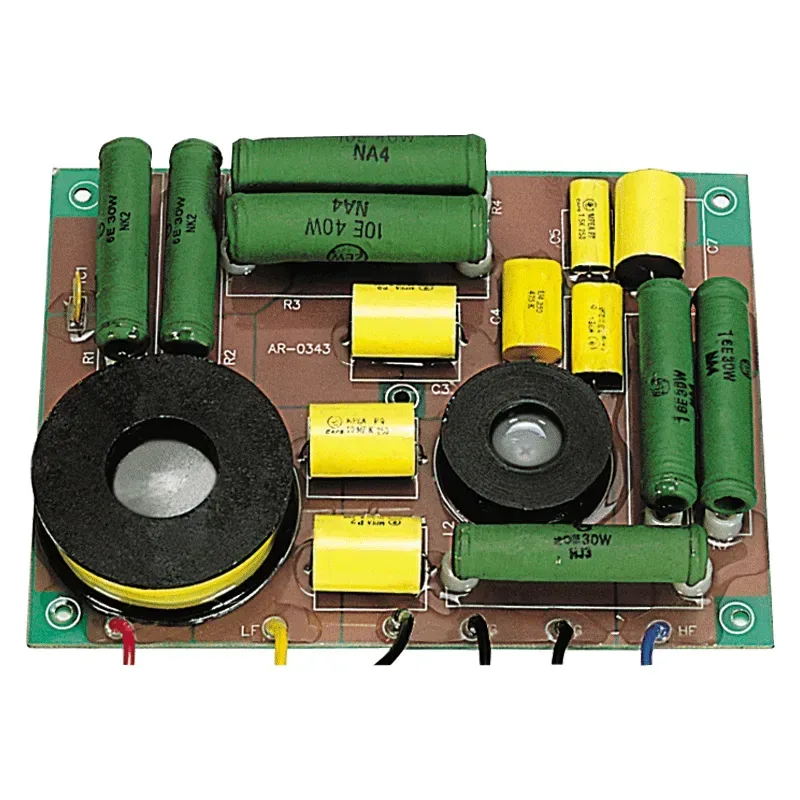

The Ahuja C-500/750 is a 500W crossover network. High power and Low resistance Air core coils.
High quality metallised polyester capacitors.
Features
- Professional 2-Way Passive Crossover Network.
- Designed for use with 1 no. LF woofer AHUJA Model L15-LF500.
- HF driver CDH-1000.
- PTC for HF protection.
- High power and Low resistance Air core coils.
- High quality metallised polyester capacitors.
Specifications, Q&A and videos
| Type | Two-way crossover |
|---|---|
| Power Capacity | 500W |
| Crossover Frequency | 1.2kHz |
| Nominal Impedance | 8Ω |
| Low Pass Filter Slope | 12dB/Octave |
| High Pass Filter Slope | 18dB/Octave with protection |
| Dimensions | W225 x H35 x D169 mm |
| Weight | 1.2kg |
The C-500/750 is an Ahuja crossover network in the Crossover Networks rated 500 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 2-Way Passive Crossover Network; Designed for use with 1 no. LF woofer AHUJA Model L15-LF500; HF driver CDH-1000; PTC for HF protection; High power and Low resistance Air core coils; High quality metallised polyester capacitors.
The C-500/750 type is Two-way crossover.
The C-500/750 power capacity is 500W.
The C-500/750 crossover frequency is 1.2kHz.
The C-500/750 nominal impedance is 8Ω.
The C-500/750 low pass filter slope is 12dB/Octave.
