Ahuja
C-500/450
- Power
- 500 WATTS
- Series
- Crossover Networks
- Category
- Processors
- Category
- Crossover Networks

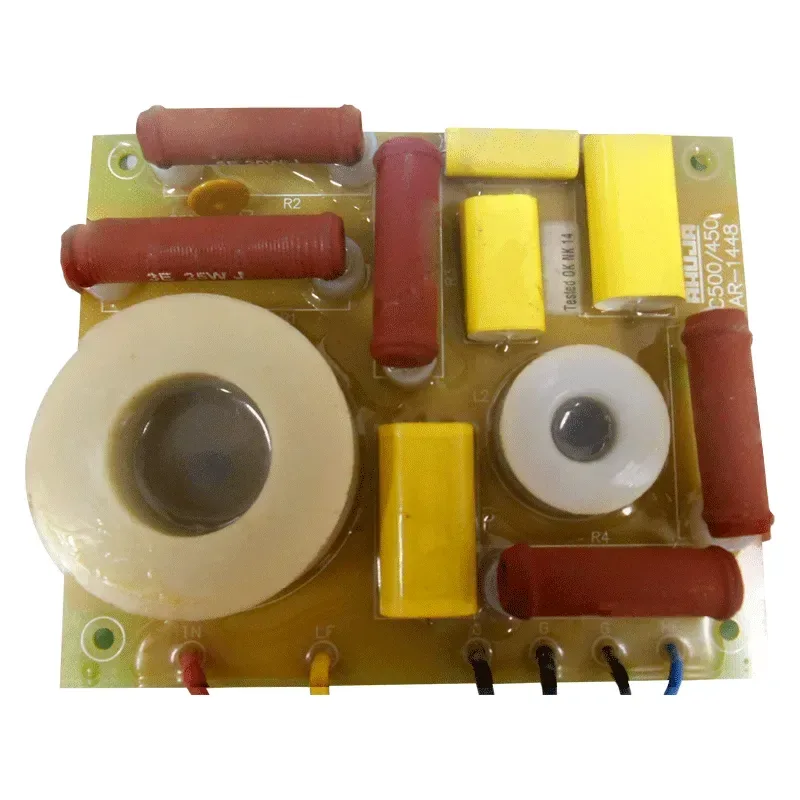

The Ahuja C-500/450 is a 500W crossover network.
It is recommended for use with one LF Speaker L15-MB400 or L15-MB500 and one HF Speaker CDH-800.
Features
- Professional Two-Way Passive Crossover Network using high quality metalised polyester capacitors and coils with low resistance/high power rating.
- Recommended for use with: 1 no. LF Speaker AHUJA model L15-MB400 or L15-MB500 and 1 no. HF Speaker AHUJA model CDH-800.
Specifications, Q&A and videos
| Type | Two-way crossover |
|---|---|
| Power Capacity | 500W |
| Nominal Impedance | 8Ω |
| Crossover Frequency | 2.5kHz |
| Low Pass Filter Slope | 12dB/Octave |
| High Pass Filter Slope | 18dB/Octave with protection |
| Speaker Impedance | LF: 1 × 8Ω, HF: 1 × 8Ω |
| Dimension | W170 x H32 x D140 mm |
| Weight | 0.65kg approx. |
The C-500/450 is an Ahuja crossover network in the Crossover Networks rated 500 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional Two-Way Passive Crossover Network using high quality metalised polyester capacitors and coils with low resistance/high power rating; Recommended for use with: 1 no. LF Speaker AHUJA model L15-MB400 or L15-MB500 and 1 no. HF Speaker AHUJA model CDH-800.
The C-500/450 type is Two-way crossover.
The C-500/450 power capacity is 500W.
The C-500/450 nominal impedance is 8Ω.
The C-500/450 crossover frequency is 2.5kHz.
The C-500/450 low pass filter slope is 12dB/Octave.
