Ahuja
BTA-880
- Power
- 50 WATTS
- Series
- BTA Portable PA
- Category
- Portable PA
- Category
- Portable Trolley Speakers

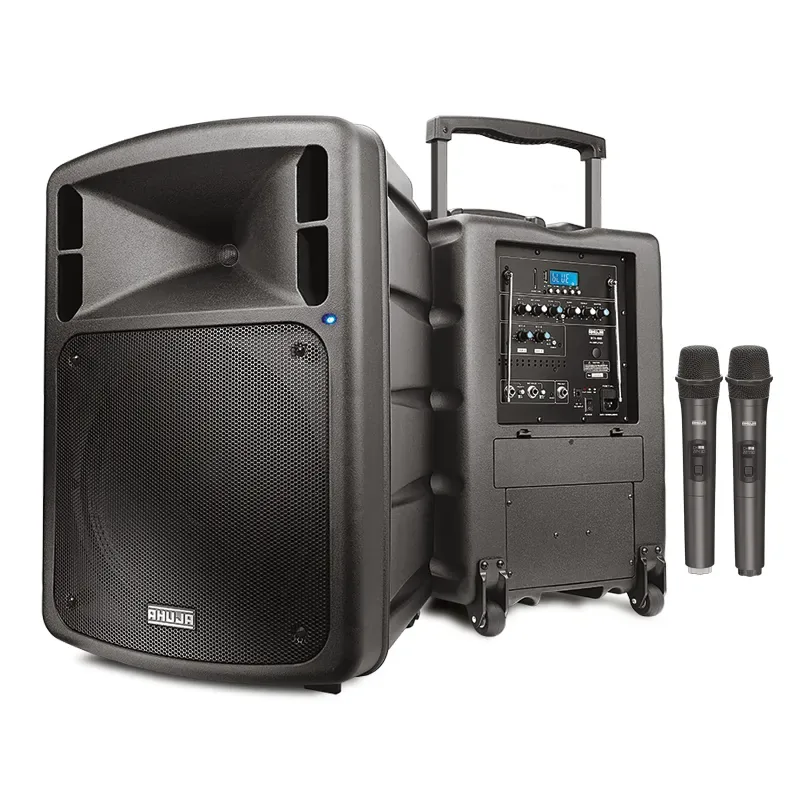

The Ahuja BTA-880 is a 50W PA amplifier set. Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects.
LED indications for low battery, charging and clip output. Auto cut-off feature prevents deep discharge of rechargeable battery.
Features
- Elegant and stylish looking plastic moulded cabinet PA Amplifier Set with Trolley System.
- Two Mic inputs, Two Wireless Mics, one Aux input & one Music input. Mic1 has selectable priority over all other inputs.
- Built-in 30.4 cm (12") 4Ω speaker & 8Ω HF driver.
- Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects.
- Tone control for setting the desire tonal quality.
- LED indications for low battery, charging & clip output. Auto cut-off feature prevents deep discharge of rechargeable battery.
- Operates on AC mains, external 12V DC or built-in 12V 7Ah rechargeable battery.
Specifications, Q&A and videos
| Speaker | 1x12" Speaker, 1xHF Driver |
|---|---|
| Power Output (BI-Amp) | 50W Max. (LF+HF) LF: 35W Max HF: 15W Max |
| Input Channels | 2 x Mic 3mV/4.7kΩ, 1 x Aux 100mV/47kΩ, Music 100mV/47kΩ, 2 x Wireless MIC |
| Frequency Response | 55-18,000Hz ±3dB (Bi-Amp) |
| S/N Ratio | 60dB |
| Tone Controls | Bass ±5dB at 100Hz, Treble ±5dB at 10kHz |
| Digital Player | MP3 player with USB, SD, MMC card reader, Recording function and Bluetooth |
| Preamp Output | 200mV/600Ω |
| Protections | AC Fuse: 1 Amp. 250V (T 1A L) |
| Power Supply | AC : 220V-240V 50/60Hz, DC : 12V Car Battery (external), 12V 7Ah Rechargeable battery (built-in) |
| AC Power Consumption | 60VA |
| Dimensions | W405 x H610 x D350 mm |
| Weight | 18.80 kg |
| Wireless Microphone | 2 x Hand Held |
| Frequency Stability | ±0.005% |
| Max. Modulation | 45dB |
| RF Output | 10mW |
| Battery | 3V (2 × 1.5V AA Pencil Cells) |
| Current Consumption | < 200mA |
| Weight (w/o battery) | 140g |
The BTA-880 is an Ahuja PA amplifier set in the BTA Portable PA rated 50 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Elegant and stylish looking plastic moulded cabinet PA Amplifier Set with Trolley System; Two Mic inputs, Two Wireless Mics, one Aux input & one Music input. Mic1 has selectable priority over all other inputs; Built-in 30.4 cm (12") 4Ω speaker & 8Ω HF driver; Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects; Tone control for setting the desire tonal quality; LED indications for low battery, charging & clip output. Auto cut-off feature prevents deep discharge of rechargeable battery.
The BTA-880 speaker is 1x12" Speaker, 1xHF Driver.
The BTA-880 power output (bi-amp) is 50W Max. (LF+HF) LF: 35W Max HF: 15W Max.
The BTA-880 input channels is 2 x Mic 3mV/4.7kΩ, 1 x Aux 100mV/47kΩ, Music 100mV/47kΩ, 2 x Wireless MIC.
The BTA-880 frequency response is 55-18,000Hz ±3dB (Bi-Amp).
The BTA-880 s/n ratio is 60dB.
