Ahuja
BTA-660M
- Power
- 40 WATTS
- Series
- BTA Portable PA
- Category
- Portable PA
- Category
- Portable Trolley Speakers

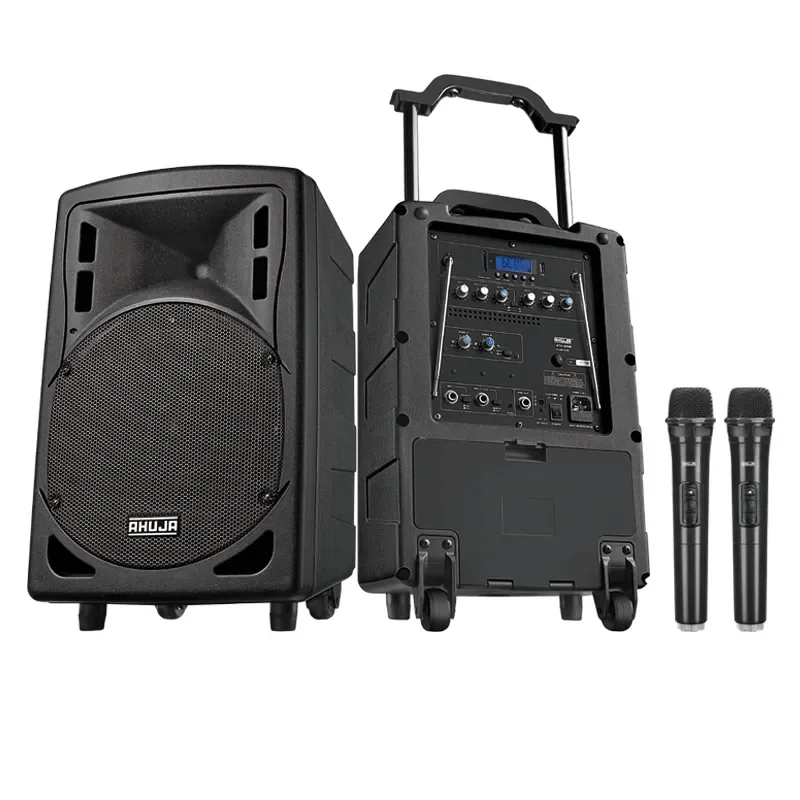

The Ahuja BTA-660M is a 40W PA amplifier sets. Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects.
Two Mic inputs, Two Wireless Mics, one Aux input and one Music input. Mic1 has selectable priority over all other inputs.
Features
- Elegant and stylish looking plastic moulded cabinet PA Amplifier Set with Trolley System.
- Two Mic inputs, Two Wireless Mics, one Aux input & one Music input. Mic1 has selectable priority over all other inputs.
- Built-in 203 mm (10") 4Ω speaker & 8Ω HF driver.
- Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects.
- Tone control for setting the desire tonal quality.
- LED indications for low battery, charging & clip output. Auto cut-off feature prevents battery deep discharge.
- Operates on AC mains, external 12V DC or built-in 12V 7Ah rechargeable battery.
Specifications, Q&A and videos
| Audio Output (BI-AMP) | 40W Max. (LF+HF) LF: 25W Max HF: 15W Max |
|---|---|
| Input Channels | 2 x Mic 4mV/4.7kΩ, 1 x Aux 100 mV/47kΩ, Music 100mV/47kΩ, 2 x Wireless MIC |
| Preamp Output | 200mV/600Ω |
| Tone Controls | Bass ±5dB at 100Hz, Treble ±5dB at 10kHz |
| Digital Player | MP3 player with USB, SD, MMC card reader, Recording function and Bluetooth |
| Power Requirements | AC : 220V-240V 50/60Hz DC : 12V Car Battery (external), 12V 7Ah Rechargeable battery (built-in) |
| Power Consumption | 50VA |
| Protection | AC Fuse: 1A 250V (T 1A L) |
| Wireless Receiving Mode | Quartz Controlled Fixed Frequency |
| Wireless Range | Over 20m in Free Space (Line of Sight) |
| Dimension | W325 x H550 x D280 mm |
| Weight | 14.30kg |
| RF Output Power | 10mW (Max.) |
| Max. Modulation | 45dB |
| Frequency Response | 50-15,000Hz |
| Battery | 3V (2 × 1.5V AA Pencil Cells) |
The BTA-660M is an Ahuja PA amplifier set in the BTA Portable PA rated 40 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Elegant and stylish looking plastic moulded cabinet PA Amplifier Set with Trolley System; Two Mic inputs, Two Wireless Mics, one Aux input & one Music input. Mic1 has selectable priority over all other inputs; Built-in 203 mm (10") 4Ω speaker & 8Ω HF driver; Built-in MP3 Player with Bluetooth, Recorder, SD Card and Remote Control. Built-in Digital Echo effects; Tone control for setting the desire tonal quality; LED indications for low battery, charging & clip output. Auto cut-off feature prevents battery deep discharge.
The BTA-660M audio output (bi-amp) is 40W Max. (LF+HF) LF: 25W Max HF: 15W Max.
The BTA-660M input channels is 2 x Mic 4mV/4.7kΩ, 1 x Aux 100 mV/47kΩ, Music 100mV/47kΩ, 2 x Wireless MIC.
The BTA-660M preamp output is 200mV/600Ω.
The BTA-660M tone controls is Bass ±5dB at 100Hz, Treble ±5dB at 10kHz.
The BTA-660M digital player is MP3 player with USB, SD, MMC card reader, Recording function and Bluetooth.
