Ahuja
BTA-1010
- Power
- 90 WATTS
- Series
- BTA Portable PA
- Category
- Portable PA
- Category
- Active Portable Speakers

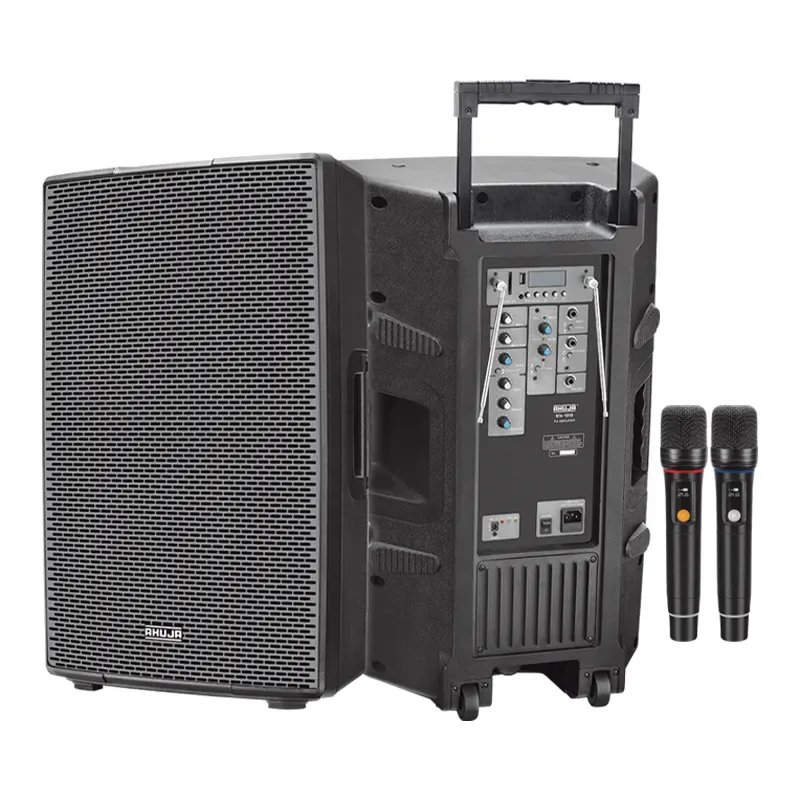

Ahuja BTA-1010 is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Share application (school, temple, retail, events) for specification and quote. The Ahuja BTA-1010 is a 90W Class-D bi-amp PA amplifier sets.
Built-in MP3 player with Bluetooth, Recorder, SD card and Remote Control. Three power source operation AC mains, External 12V DC or built-in 12V 9Ah rechargeable battery.
Features
- Class D Bi-amplifier featuring attractive, elegant and stylish looking cabinet with Trolley System.
- Two Mic inputs, Two Wireless Mics, one Aux input & one Music input.
- Built-in 38.1 cm (15") 8W speaker with dual voice coil & 8W HF driver.
- Mic 1 has selectable priority over all other inputs.
- Built-in MP3 player with Bluetooth, Recorder, SD card and Remote Control.
- Built-in Digital Echo effects.
- Active Bass & Treble controls for setting the desired tonal quality.
- LED indications for low battery, charging & clip output.
- Facility of Auto cut-off to prevent battery from deep discharge.
- Three power source operation AC mains, External 12V DC or built-in 12V 9Ah rechargeable battery.
Specifications, Q&A and videos
| Audio Output (BI-AMP) | 90W Max. |
|---|---|
| Input Channels | 2 × Mic 3mV/4.7kΩ, 1 × Aux 100 mV/47kΩ, Music 100mV/47kΩ, 2 × Wireless MIC |
| Preamp Output | 200mV/600Ω |
| Tone Controls | Bass ±5dB at 100Hz, Treble ±5dB at 10kHz |
| Digital Player Player | MP3 player with USB, SD, MMC card reader, Recording Function and Bluetooth. |
| Power Requirements | AC : 220V-240V 50/60Hz, DC : 12V Car Battery (external), 12V 9Ah Rechargeable Battery (built-in) |
| Power Consumption | 170VA |
| Protection | AC Fuse: 1A 250V (T 1A L) |
| Wireless Receiving Mode | Quartz Controlled Fixed Frequency |
| Wireless Range | Over 20m in Free Space (Line of Sight) |
| Dimension | W440 × H700 × D350 mm |
| Weight | 18.80kg |
| RF Output Power | 10mW (Max.) |
| Max. Modulation | 45dB |
| Frequency Response | 50-15,000Hz |
| Battery | 3V (2 × 1.5V AA Pencil Cells) |
What type of PA amplifier set is the BTA-1010?
The BTA-1010 is an Ahuja PA amplifier set in the BTA Portable PA rated 90 WATTS. Ahuja BTA-1010 is available from MSC, authorized Ahuja dealer for Maharashtra and Goa. Available from Mansukhlal Sales Corporation, an authorized dealer.
What are the main features of the BTA-1010?
Class D Bi-amplifier featuring attractive, elegant and stylish looking cabinet with Trolley System; Two Mic inputs, Two Wireless Mics, one Aux input & one Music input; Built-in 38.1 cm (15") 8W speaker with dual voice coil & 8W HF driver; Mic 1 has selectable priority over all other inputs; Built-in MP3 player with Bluetooth, Recorder, SD card and Remote Control; Built-in Digital Echo effects.
What is the audio output (bi-amp) of the BTA-1010?
The BTA-1010 audio output (bi-amp) is 90W Max..
What is the input channels of the BTA-1010?
The BTA-1010 input channels is 2 × Mic 3mV/4.7kΩ, 1 × Aux 100 mV/47kΩ, Music 100mV/47kΩ, 2 × Wireless MIC.
What is the preamp output of the BTA-1010?
The BTA-1010 preamp output is 200mV/600Ω.
What is the tone controls of the BTA-1010?
The BTA-1010 tone controls is Bass ±5dB at 100Hz, Treble ±5dB at 10kHz.
What is the digital player player of the BTA-1010?
The BTA-1010 digital player player is MP3 player with USB, SD, MMC card reader, Recording Function and Bluetooth..
