Ahuja
BTA-550
- Power
- 30 WATTS
- Channels
- 2 Channels
- Series
- BTA Portable PA
- Category
- Portable PA
- Category
- Portable Trolley Speakers

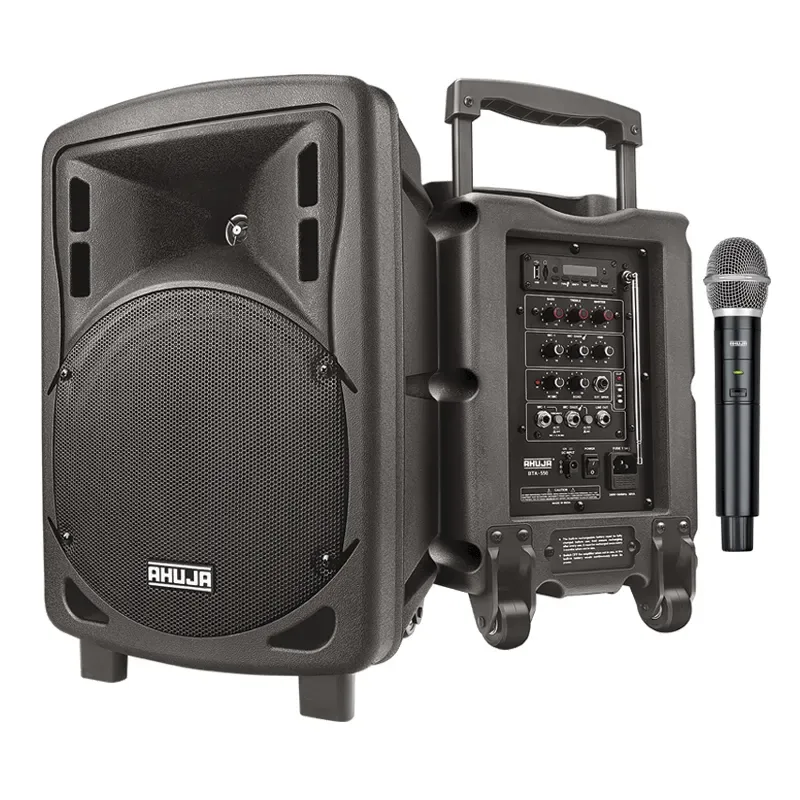

The Ahuja BTA-550 is a 30W PA amplifier sets. Built-in MP3 Player with Bluetooth, Recorder and remote control.
It has a built-in 20.32 cm (8") 30W full range dual cone speaker and a tweeter.
Features
- Elegant and compact Portable PA Amplifier in plastic moulded cabinet with trolley system.
- Two Mic inputs, one Wireless Mic & one Aux (Guitar) input.
- Built-in 20.32 cm (8") 30W Full Range Dual Cone speaker & a tweeter.
- Mic-1 and Wireless Mic have selectable priority over all other inputs.
- Built-in MP3 Player with Bluetooth, Recorder and remote control.
- Built-in Digital Echo.
- Active Bass & Treble controls.
- LED indications for low battery, charging & clip output.
- Facility of auto cut-off to prevent battery from deep discharge.
- Three power source operation (AC mains, External 12V DC or built-in 11.1V 2200mAh rechargeable Li-ion battery).
Specifications, Q&A and videos
| Audio Output | 30W Max. |
|---|---|
| Input Channels | 2 x Mic 4mV/4.7kW, 1 x Aux 100mV/47kW, 1 x Wireless MIC |
| Line Output | 775mV |
| Tone Controls | Bass ±5dB at 100Hz, Treble ±5dB at 10kHz |
| Digital Player | MP3 player with USB, MMC/TF card reader, Recording function and Bluetooth |
| Power Requirements | AC : 220V-240V 50/60Hz, DC : 12V Car Battery (external), 11.1V 2200mAh Rechargeable Li-ion battery (built-in) |
| Power Consumption | 50VA |
| Protection | AC Fuse: 1 Amp. 250V (T 1A L) |
| Wireless Receiving Mode | Quartz Controlled Fixed Frequency |
| Wireless Range | Over 20m in Free Space (Line of Sight) |
| Dimension | W550 x H330 x D210 mm |
| Weight | 5.60kg |
| RF Output Power | 15mW (Max.) |
| Frequency Response | 50-15,000Hz |
| Battery | 3V (2 × 1.5V AA Pencil Cells) |
The BTA-550 is an Ahuja PA amplifier set in the BTA Portable PA rated 30 WATTS. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Elegant and compact Portable PA Amplifier in plastic moulded cabinet with trolley system; Two Mic inputs, one Wireless Mic & one Aux (Guitar) input; Built-in 20.32 cm (8") 30W Full Range Dual Cone speaker & a tweeter; Mic-1 and Wireless Mic have selectable priority over all other inputs; Built-in MP3 Player with Bluetooth, Recorder and remote control; Built-in Digital Echo.
The BTA-550 audio output is 30W Max..
The BTA-550 input channels is 2 x Mic 4mV/4.7kW, 1 x Aux 100mV/47kW, 1 x Wireless MIC.
The BTA-550 line output is 775mV.
The BTA-550 tone controls is Bass ±5dB at 100Hz, Treble ±5dB at 10kHz.
The BTA-550 digital player is MP3 player with USB, MMC/TF card reader, Recording function and Bluetooth.
