SM Professional
ARC 406Z
- Power
- 300 WATTS
- Channels
- 6 Channels
- Series
- ARC Series
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers

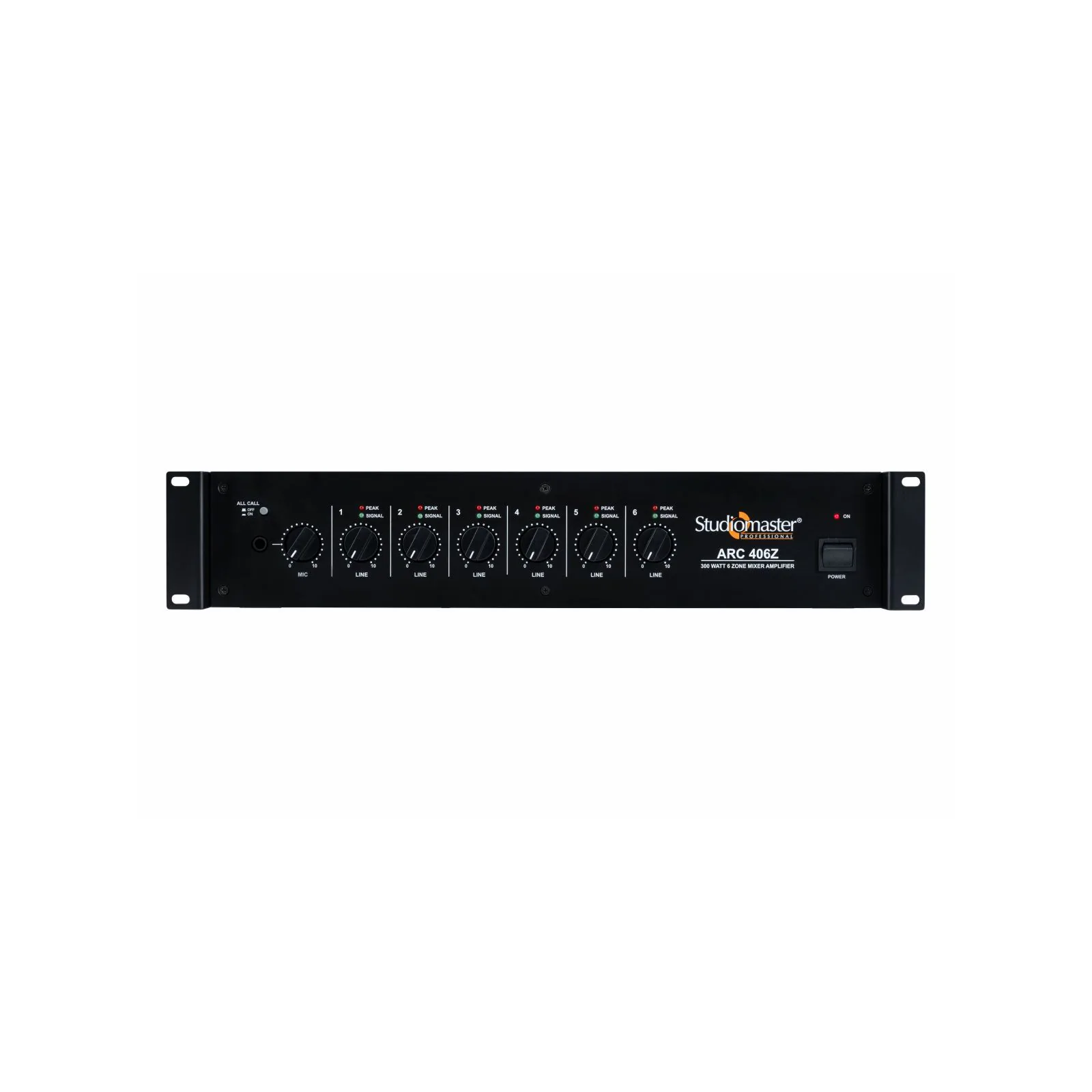

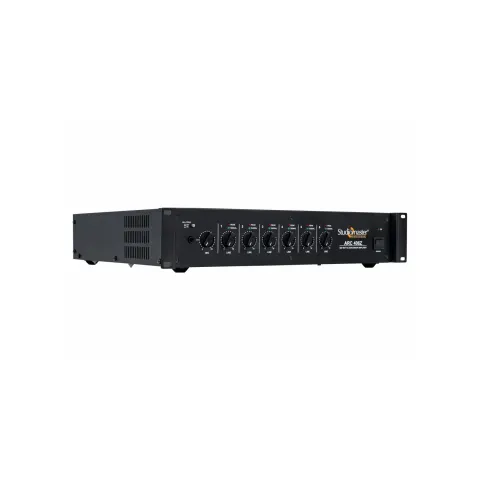

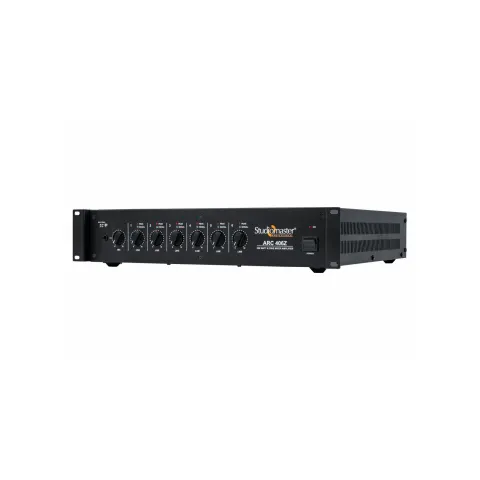

The SM Professional ARC 406Z is a high quality 6 channel matrix multi zone amplifier.
Featuring 6 individual amp modules, ample zone routing options, multiple output power taps, separate zone outputs and more, the ARC 406Z is geared to tackle complex install, PA and other sound reinforcement applications.
Features
- 6 x separate ¼” zone inputs with individual amplifier modules and level controls.
- Easy matrix zone and input routing.
- 2 x versatile ¼” mono/stereo (MON:STER) line inputs to connect audio sources.
- ¼” MIC input with Vox Priority (ALL CALL) to override all inputs for paging or announcements.
- 6 x ¼" line outputs to connect booster amplifiers.

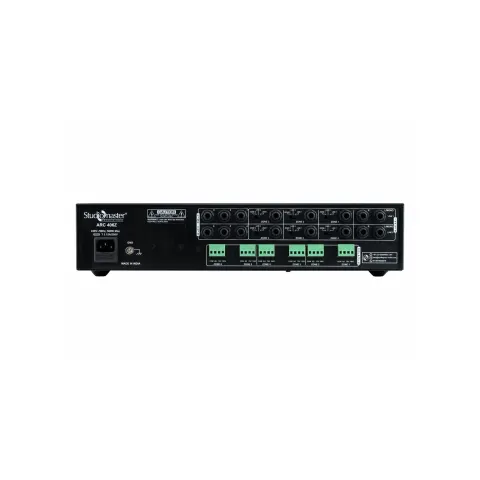

- Secure 4-pin Euroblock speaker output connectors.
- Speaker output taps: 70V / 100V or 8Ω.
- LED indicators for power on, signal & clip.
- Standard 19” (2U) rack mounted design.
- Ideal for multi-zone systems requiring different audio sources in install, PA and other sound reinforcement applications.
Specifications, Q&A and videos
| Series | ARC Series |
|---|---|
| Power Output | 6 x 50W (1% THD) 6 x 70W (MAX) |
| Speaker Outputs | Min 8Ω, 70V, 100V |
| Line input | 0.775V/10KΩ |
| Frequency Response | 150Hz-15kHz, ±3dB |
| THD | 1% |
| S/N ratio | > 80dB |
| Operating Temperature | 0 – 40 °C |
| Mains Voltage | 240V~/50Hz |
| Fuse Rating | T 3.15A/250V |
| Power Consumption | 500W Max |
| Dimensions (W x D x H) mm | 482 x 362 x 98 |
| Net Weight (Kg) | 13.5 |
The ARC 406Z is an SM Professional 6 channel matrix multi zone amplifier in the ARC Series rated 300 WATTS. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
6 x separate ¼” zone inputs with individual amplifier modules and level controls; Easy matrix zone and input routing; 2 x versatile ¼” mono/stereo (MON:STER) line inputs to connect audio sources; ¼” MIC input with Vox Priority (ALL CALL) to override all inputs for paging or announcements; 6 x ¼" line outputs to connect booster amplifiers; Secure 4-pin Euroblock speaker output connectors.
The ARC 406Z speaker outputs is Min 8Ω, 70V, 100V.
The ARC 406Z line input is 0.775V/10KΩ.
The ARC 406Z frequency response is 150Hz-15kHz, ±3dB.
The ARC 406Z thd is 1%.
The ARC 406Z s/n ratio is > 80dB.
