SM Professional

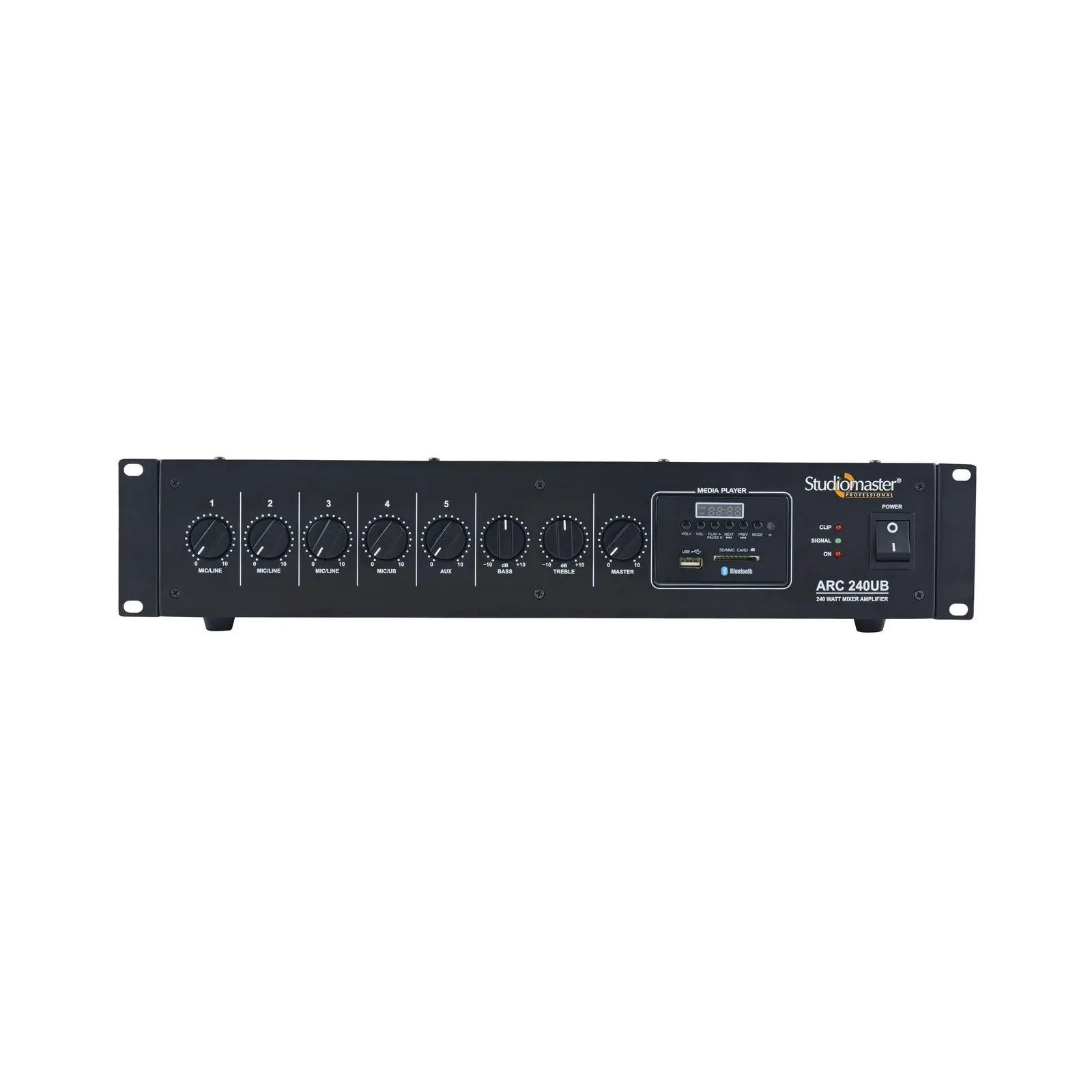

ARC 240UB
- Power
- 325 WATTS
- Series
- ARC Series
- Category
- Mixer Amplifiers
- Category
- Zone Mixer Amplifiers
The SM Professional ARC series installation amplifiers offer versatile features & outstanding value for general public address & installed sound applications such as schools, offices, restaurants, shops, factories, houses of worship & large meeting rooms.
Features
- Professional 19” rack mounted Amplifier/Mixer.
- 3 Balanced Mic/Line Inputs (Combo jacks) + 1Mic / USB + Bluetooth
- 1 Auxiliary (stereo summing) Input.
- Bass/Treble & Master controls on front panel.
- Switchable phantom power for CH 1 mic input.

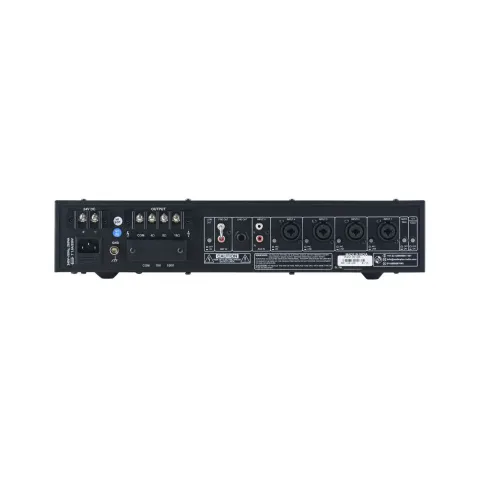

- Low cut switch on rear panel.
- Vox Priority on channel 1 overrides all other Input signals when activated
- LED indicators for power on, signal & clip.
- Pre out & Amp in (Send/Return) to connect to Equalizers or EFX processors.
- Auxiliary Line Out to connect to a Booster Amplifier
- 24V DC operation.
- High quality Media player on board with Bluetooth.
Specifications, Q&A and videos
| Series | ARC Series |
|---|---|
| Power Output | 10% THD - 325W RMS 5% THD - 300W RMS 1% THD - 240W RMS Max - 400W |
| Outputs Speakers | min 4 Ω, 8 Ω, 16 Ω, 70V, 100V |
| Line Out | 1V/600 Ω |
| Pre Out | 1V/600 Ω |
| Input 1–4 | Mic 1.5 mV/1.1kΩ 300mV/14kΩ; XLR, balanced 300mV/50kΩ; RCA, unbalanced |
| AUX | 300mV/50kΩ; RCA, unbalanced |
| Frequency Range | 80 –15000Hz, ±3dB |
| S/N ratio | > 75dB |
| Bass | +6/-10dB/100Hz |
| Treble | ±10dB/10Hz |
| Power Supply | 240V~/50Hz |
| External DC Supply | 24V/13A |
| Dimensions (W x D x H)mm | 482 x 320 x 95 (2U) |
| Net Weight (Kgs.) | 11.7 |
The ARC 240UB is an SM Professional Installation loudspeakers and zone system in the ARC Series rated 325 WATTS. The SM Professional ARC series installation amplifiers offer versatile features & outstanding value for general public address & installed sound applications such as schools,. Authorized SM Professional dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Professional 19” rack mounted Amplifier/Mixer; 3 Balanced Mic/Line Inputs (Combo jacks) + 1Mic / USB + Bluetooth; 1 Auxiliary (stereo summing) Input; Bass/Treble & Master controls on front panel; Switchable phantom power for CH 1 mic input; Low cut switch on rear panel.
The ARC 240UB outputs speakers is min 4 Ω, 8 Ω, 16 Ω, 70V, 100V.
The ARC 240UB line out is 1V/600 Ω.
The ARC 240UB pre out is 1V/600 Ω.
The ARC 240UB input 1–4 is Mic 1.5 mV/1.1kΩ 300mV/14kΩ; XLR, balanced 300mV/50kΩ; RCA, unbalanced.
The ARC 240UB aux is 300mV/50kΩ; RCA, unbalanced.
