Ahuja

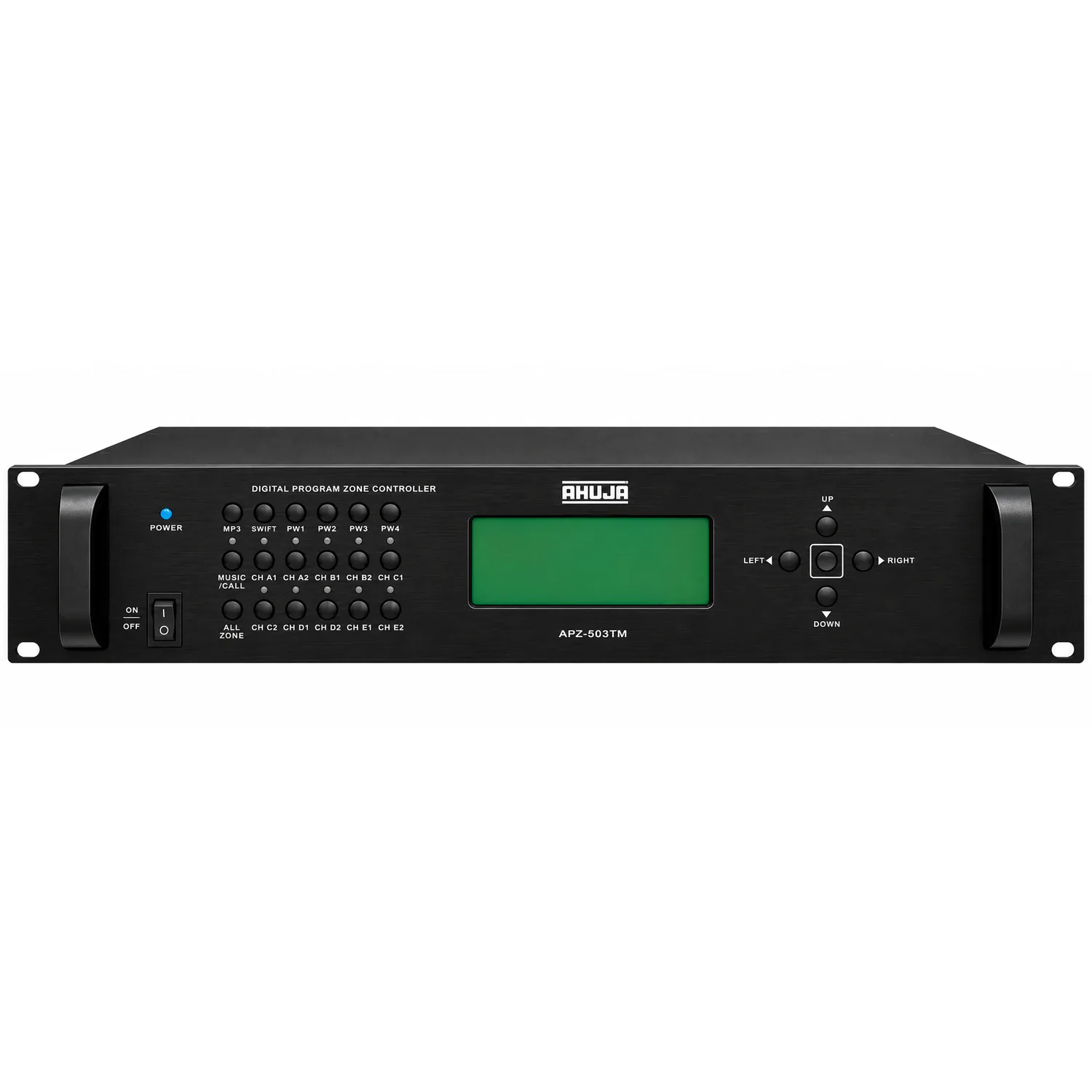

APZ-503TM
- Series
- Paging System
- Category
- Paging System
5 Inputs, 10 outputs.
Features
- Digital Paging Solution that fixes your Public Address needs with up to 300 zones
- Ideal for schools, offices and factories
- Fully digital system
- Easy installation, supervision and maintenance
- Integration with fire alarm system
- High quality industrious products
- Easy scalability with daisy chain interconnections
Specifications, Q&A and videos
| Power Supply | 230V / 50Hz |
|---|---|
| Power Output | 230V / 50Hz, 4 program power + 2 AUX power, total power under 5 kW |
| Indication | 192 × 64 LCD, English |
| Audio Output | 1kΩ, 0.775V unbalanced (6.35 mm) |
| Amplifier I/O | Terminal block. Inputs CHA–CHE. Outputs CHA1–A2, CHB1–B2, CHC1–C2, CHD1–D2, CHE1–E2 |
| Time Mode | 24-hour weekly (hours, minutes, seconds) |
| Communication | RS422, RJ45, 4800 bps |
| MP3 Frequency Response | 20Hz–20kHz ±1 dB |
| MP3 Store Format | FAT12, FAT16, FAT32 |
| Dimensions | W484 × H88 × D303 mm |
| Weight | 6.8 kg |
The APZ-503TM is an Ahuja paging microphone in the Paging System. 5 Inputs, 10 outputs. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Digital Paging Solution that fixes your Public Address needs with up to 300 zones; Ideal for schools, offices and factories; Fully digital system; Easy installation, supervision and maintenance; Integration with fire alarm system; High quality industrious products.
The APZ-503TM power supply is 230V / 50Hz.
The APZ-503TM power output is 230V / 50Hz, 4 program power + 2 AUX power, total power under 5 kW.
The APZ-503TM indication is 192 × 64 LCD, English.
The APZ-503TM audio output is 1kΩ, 0.775V unbalanced (6.35 mm).
The APZ-503TM amplifier i/o is Terminal block. Inputs CHA–CHE. Outputs CHA1–A2, CHB1–B2, CHC1–C2, CHD1–D2, CHE1–E2.
