Ahuja
APM-201RM
- Zones
- 12 Zones
- Series
- Paging System
- Category
- Paging System

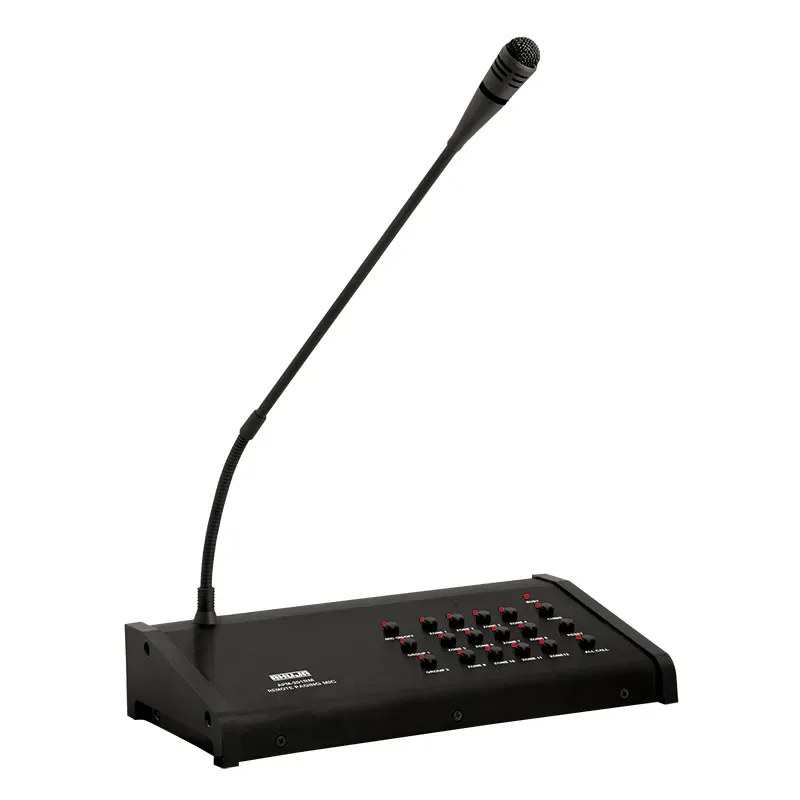

The Ahuja APM-201RM is a paging microphone. 12 Zone Paging Console with a 16"(40 cm) gooseneck.
It has a 12 zone selector switches, plus all call switch.
Features
- A high performance 12 zone paging console housed in an elegant aluminium housing. It works with APM-202CU to make a 6 or 12 zone zonal paging system.
- 12 Zone Paging Console with a 16"(40 cm) gooseneck.
- 12 Zone Selector Switches, plus ALL CALL switch
- Separate Mic ON/OFF switch.
- LED indication of zone selection.
- RESET switch to reset all zone selections.
- Group selection facility.
- Built in chime circuit.
- Chime & Mic level controls.
- Secure 8 pin lockable connectors.
- Can be used with one APM-202CU to make a 6 zone paging system, or with two nos APM-202CU to make a 12 zone paging system.
- Operates on 24V DC supply from APM-202CU.
Specifications, Q&A and videos
| Output Level | 1V Balanced (nominal) |
|---|---|
| Switches | 12 Zone Selectors, All Call, Chime, Group 1, Group 2, Mic ON/OFF, Reset |
| Controls | Mic Level, Chime Level |
| Power Supply | DC 24V (from APM-202CU) |
| Dimensions | W285 × H530 × D160 mm |
| Weight | 1.6kg |
The APM-201RM is an Ahuja paging microphone in the Paging System. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
A high performance 12 zone paging console housed in an elegant aluminium housing. It works with APM-202CU to make a 6 or 12 zone zonal paging system; 12 Zone Paging Console with a 16"(40 cm) gooseneck; 12 Zone Selector Switches, plus ALL CALL switch; Separate Mic ON/OFF switch; LED indication of zone selection; RESET switch to reset all zone selections.
The APM-201RM output level is 1V Balanced (nominal).
The APM-201RM switches is 12 Zone Selectors, All Call, Chime, Group 1, Group 2, Mic ON/OFF, Reset.
The APM-201RM controls is Mic Level, Chime Level.
The APM-201RM power supply is DC 24V (from APM-202CU).
The APM-201RM dimensions is W285 × H530 × D160 mm.
