Ahuja
APM-106Z
- Zones
- 6 Zones
- Series
- Paging System
- Category
- Paging System
- Category
- Zonal System

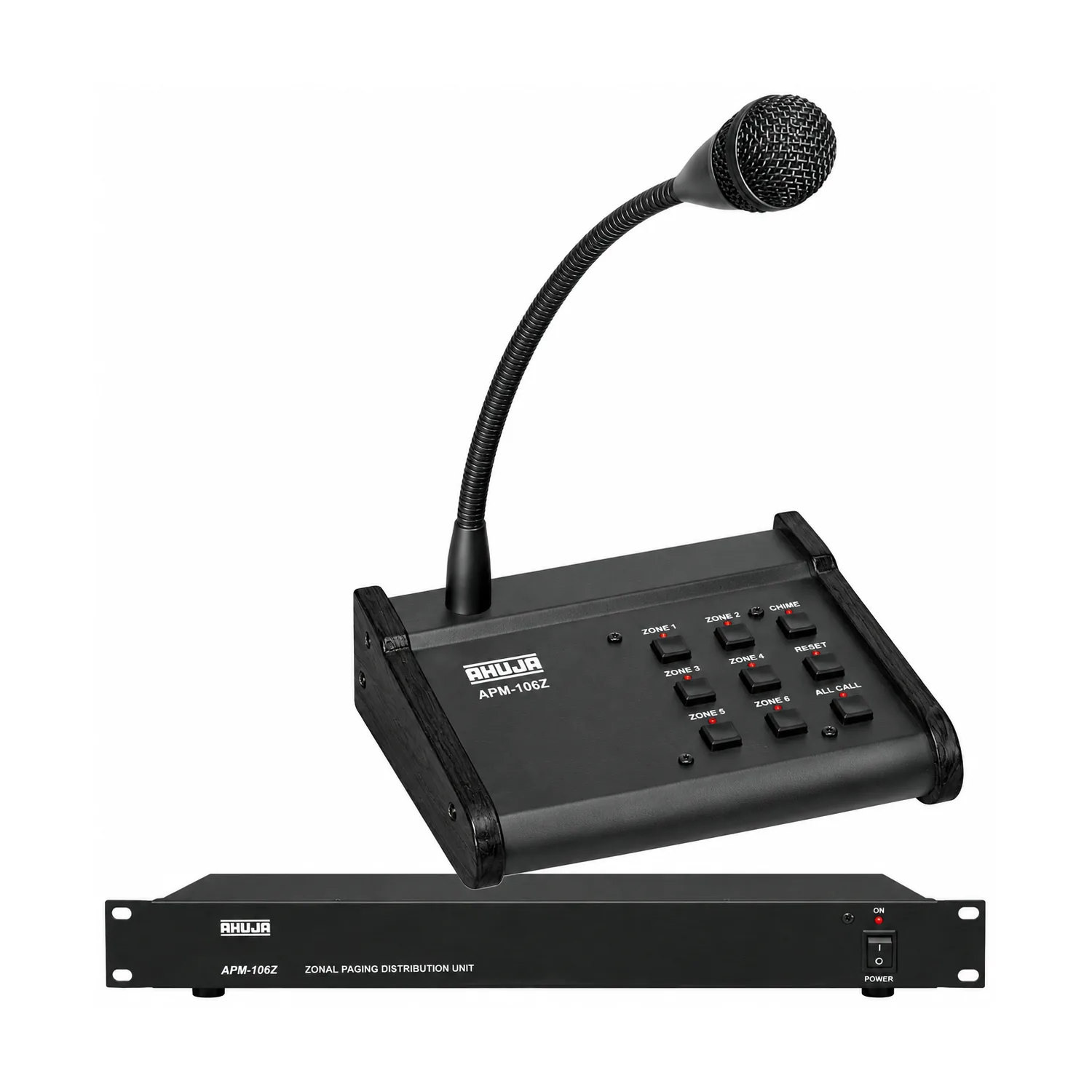

Packaged system consisting of a 6 zone Remote Paging Mic Console and a 6 zone control unit.
Features
- Packaged system consisting of a 6 zone Remote Paging Mic Console and a 6 zone control unit.
- Designed for low level signal switching. Control unit provides 6 zonal speech outputs for connecting upto 6 separate amplifiers.
- 6 Zone selector switches and ALL CALL switch on mic console.
- 16" (40 cm) flexible gooseneck mic fitted on the mic console.
- Built in chime circuit.
- Recessed chime and mic level controls.
Specifications, Q&A and videos
| Output Level | 100mV nominal |
|---|---|
| Switches | 6 zone selectors, All Call, Chime, Reset, Power on/off (on mic console) |
| Controls | Mic level, chime level |
| Power Supply | AC 220–240V, 50/60Hz; DC 24V (2 × 12V car battery) |
| Mic console | W210 × H60 × D155 mm, 1.05 kg |
| Control unit | W483 × H43 × D178 mm, 2.50 kg |
The APM-106Z is an Ahuja zonal paging microphone in the Paging System. Packaged system consisting of a 6 zone Remote Paging Mic Console and a 6 zone control unit. Authorized Ahuja dealer for Maharashtra and Goa — enquire at Mansukhlal Sales Corporation for specification and quotes.
Packaged system consisting of a 6 zone Remote Paging Mic Console and a 6 zone control unit; Designed for low level signal switching. Control unit provides 6 zonal speech outputs for connecting upto 6 separate amplifiers; 6 Zone selector switches and ALL CALL switch on mic console; 16" (40 cm) flexible gooseneck mic fitted on the mic console; Built in chime circuit; Recessed chime and mic level controls.
The APM-106Z output level is 100mV nominal.
The APM-106Z switches is 6 zone selectors, All Call, Chime, Reset, Power on/off (on mic console).
The APM-106Z controls is Mic level, chime level.
The APM-106Z power supply is AC 220–240V, 50/60Hz; DC 24V (2 × 12V car battery).
The APM-106Z mic console is W210 × H60 × D155 mm, 1.05 kg.
